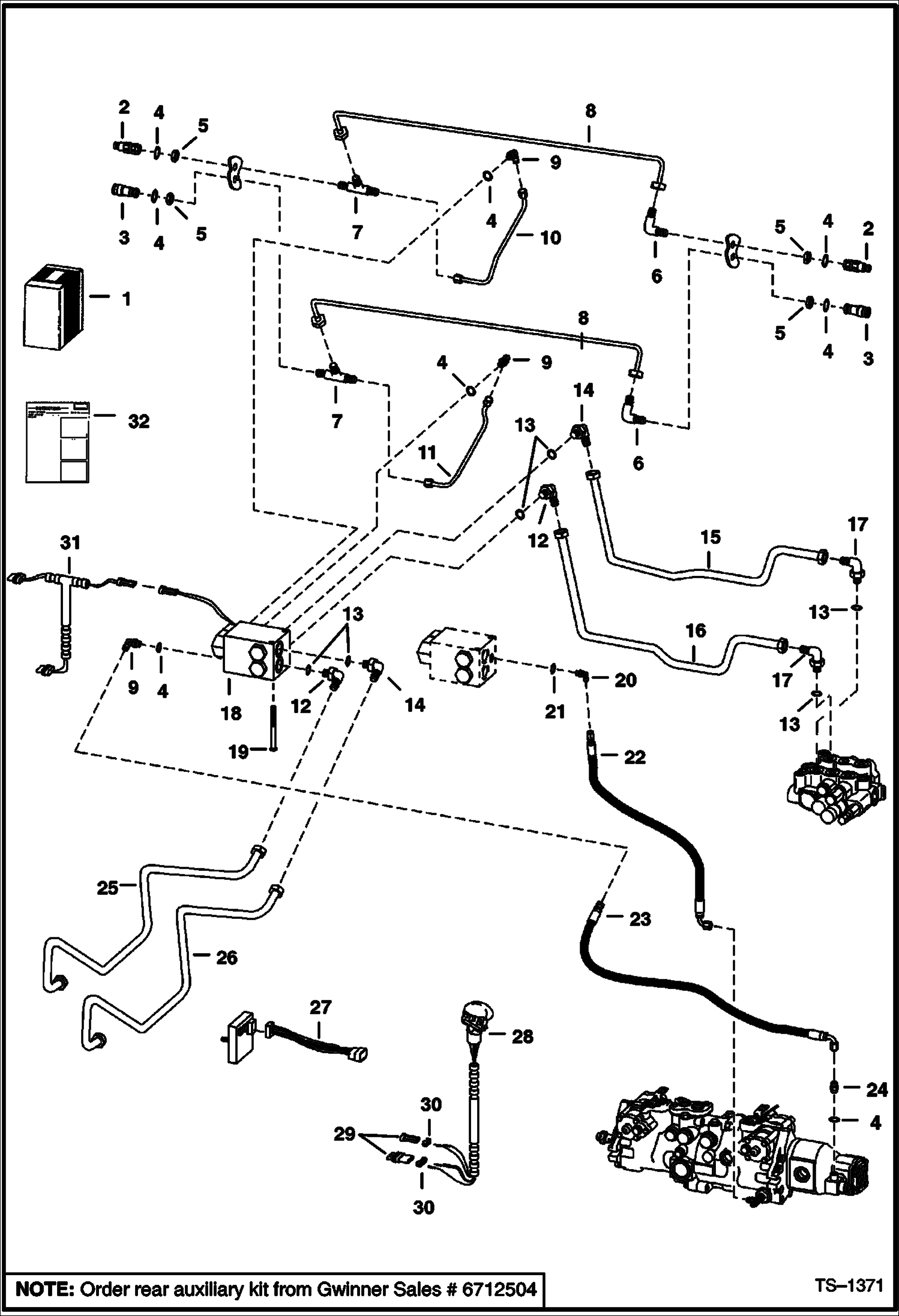

Запчасти Bobcat 800s REAR AUXILIARY (W/FF Couplers) (S/N 5141 11764-12233, 5142 11228-11263) ACCESSORIES & OPTIONS

1

6712504

KIT Ref. 2-16 & 18-32 - Was SALES - A

2

6667804

COUPLER, FF MALE

3

6667803

COUPLER, FF FEMALE

4

79K6

O RING 10

5

86F5

NUT

6

88F5

ELBOW

7

TEE NLA - Was 91KN00005B - A

7

91K5

TEE flat boss face

7

97K6

O RING

8

6708779

TUBELINE

9

17K5

ELBOW W/Ref. 4

10

6712029

TUBE

11

6712028

TUBE

12

17K8

FITTING W/Ref. 13

13

79K12

O RING 10

14

6519187

ELBOW W/Ref. 13

15

6708590

TUBE

16

6708591

TUBE

17

15K8

FITTING existing - W/Ref. 13

18

6665572

VALVE See Illustration REAR AUXILIARY VALVE/ TS1362

19

17C672

BOLT

20

17K3

ELBOW W/Ref. 21

21

79K4

O RING 10

22

6714875

HOSE Was 6709049 - A

23

6714808

HOSE Was 6536129 - A

24

15K5

FITTING W/Ref. 4

25

6709732

TUBE

26

6709731

TUBE

27

6704114

HARNESS

28

6680414

HANDLE ASSY. Was 6705921 - A

29

6640699

CONNECTOR 3-pin

29

6641179

CONNECTOR 2-pin

30

6640700

LOCK 3-pin

30

6641180

LOCK Use W/ 2-pin connector

31

6710435

HARNESS aux. bleed - PWM

32

6724536

INSTRUCTIONS Was 6724201 - A
