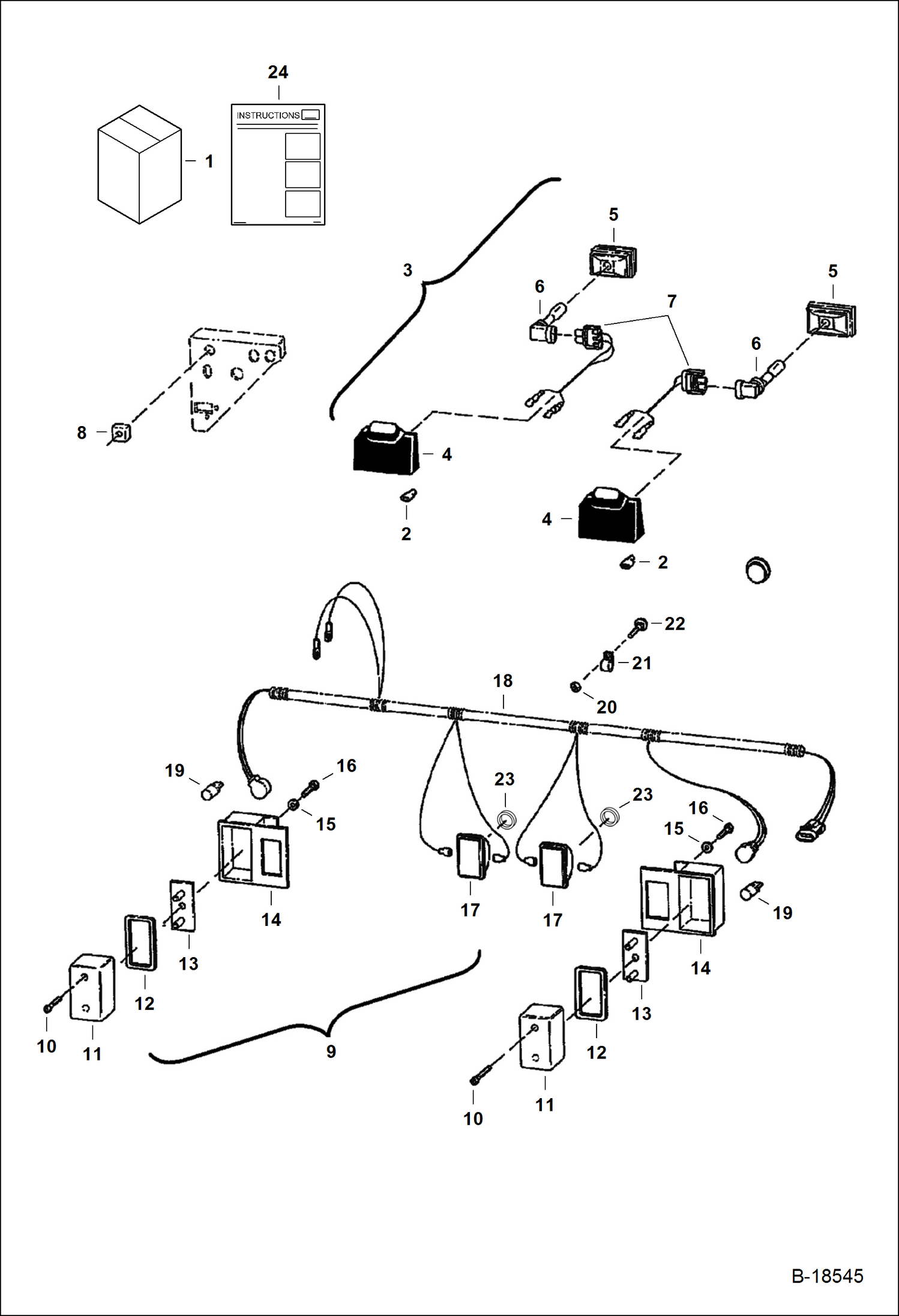

Запчасти Bobcat 800s LIGHT KIT (Front & Rear) (For One-Piece Rear Door) (S/N 5141 15366-39999, 5142 13010-39999) ACCESSORIES & OPTIONS

1

6714628

LIGHT KIT Ref. 2-19 & 23

2

6519548

CONNECTOR

3

6577801

LIGHT W/Ref. 4-7

4

6578824

HOUSING lights

5

6649478

BULB HOUSING

6

6667934

BULB

7

6578528

HARNESS light

8

6665410

SWITCH

9

6670284

LIGHT ASSY Ref. 10-17

10

6672273

SCREW

11

6672276

LENS, LIGHT RED red

12

6672275

GASKET

13

6672277

BRACKET

14

6672279

MOUNT, LIGHT RUBBER rubber

15

6672272

WASHER

16

6672274

SCREW

17

6661353

LIGHT ASSY W/ bulb - white - Was 6631353 - B

17

898731

1156 BULB

18

6714350

HARNESS Was 6716419 - B

19

6649481

LIGHT, WEDGE BASE

20

85D5

NUT 5 not in kit

21

30H42

CLAMP not in kit - Was 30H000037B - B

22

37C512

BOLT not in kit

23

6900654

INSTRUCTIONS Was 6724327 - B
