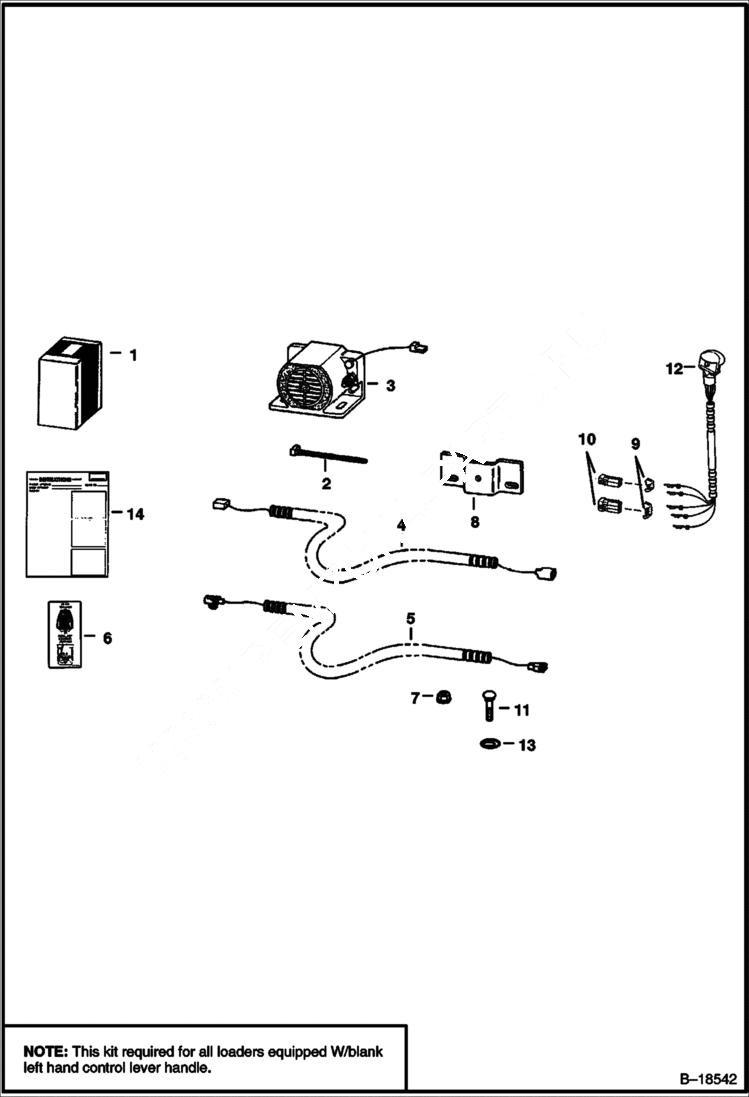

Запчасти Bobcat 800s HORN KIT ACCESSORIES & OPTIONS

1

6706679

HORN KIT Ref. 2-14 - SEE NOTE

2

6610510

TIE

3

6660294

HORN

4

6701961

HARNESS 113'' (2870mm) long

5

6704408

HARNESS 54'' (1372mm) long

6

6703727

DECAL horn/aux

7

59D4

NUT 5

8

6704641

MOUNT

9

6641180

LOCK Use W/ 2-pin connector

9

6640700

LOCK 3-pin

10

6641179

CONNECTOR 2-pin

10

6640699

CONNECTOR 3-pin

11

84G2516

BOLT

12

6680414

HANDLE ASSY. Was 6705921 - A

12

6640690

PIN

12

6641176

SEAL

13

25E13

WASHER 5

14

6720761

INSTRUCTIONS
