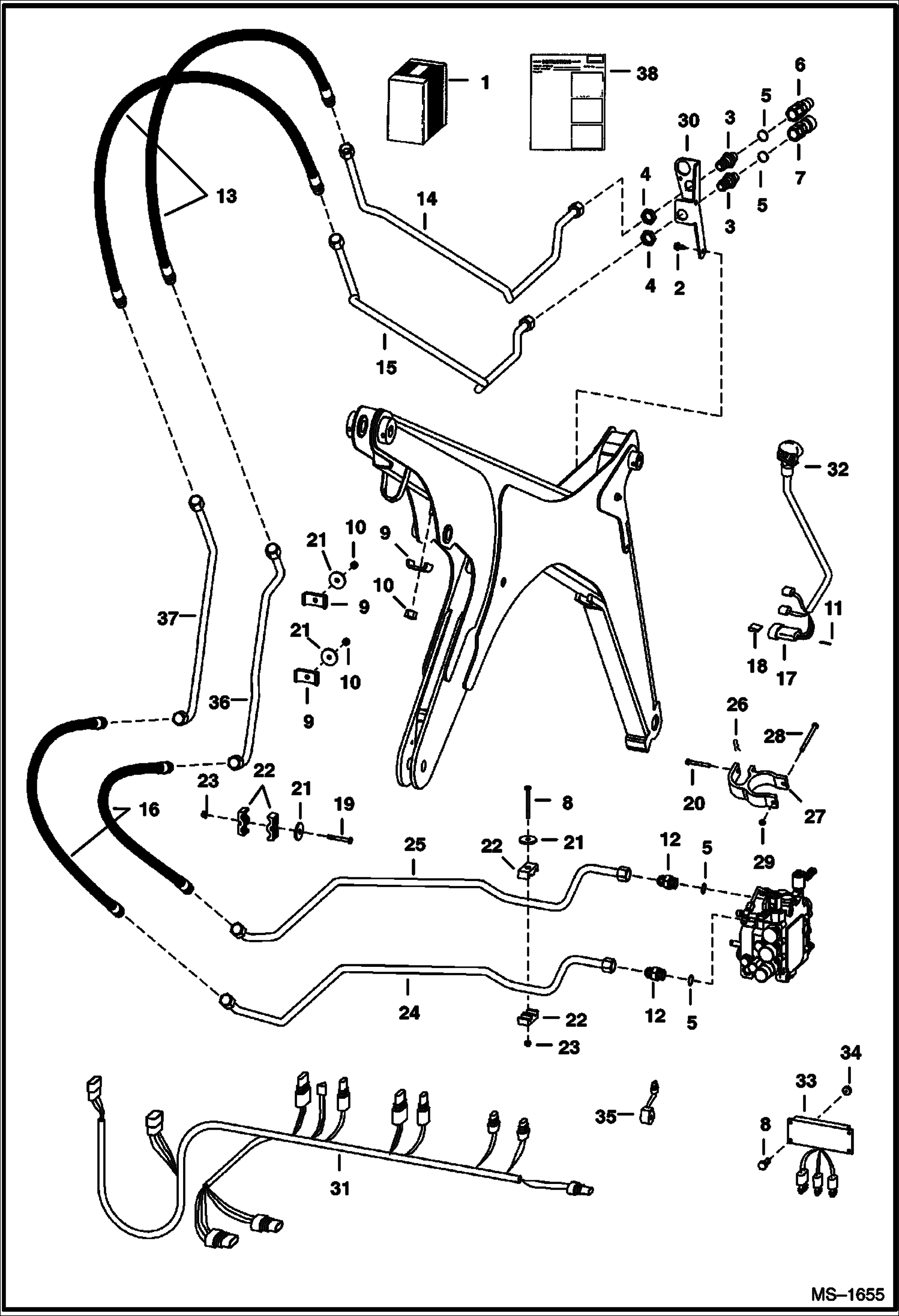

Запчасти Bobcat 800s FRONT AUXILIARY KIT (S/N 5141 22001-39999, 5142 22001-39999) (For Proportional Auxiliaries W/Flush Face (FF) Style Couplers) ACCESSORIES & OPTIONS

1

KIT NLA - Ref. 2-38 - Was 6716284 - A

2

84G3712

BOLT 5

3

6812823

ADAPTER tapered boss face - Was 6716090 - A

3

97K12

O'RING flared end

3

99K12

O RING tapered boss face

4

86F8

NUT 5

5

99K12

O RING

6

6674688

COUPLER, FF MALE straight - Was 6667808 - A

6

6679841

SEAL Was 6672026 - A

7

6672960

COUPLER, FF FEMALE straight

8

17C412

BOLT 5

9

6502203

CLAMP

10

95D6

NUT

11

6665370

PLUG

12

15KB1212

FITTING, HYD CONNECTOR W/Ref. 5 - not in kit - Was 15KN00008B - A

12

97K12

O'RING flared end

13

6710658

HOSE

14

6712717

TUBE

15

6712718

TUBE

16

6670121

HOSE

17

6662246

CONNECTOR 6-pin

18

6662252

LOCK 6-pin

19

35C540

BOLT

20

6541981

PIN

21

872229

WASHER

22

6592506

CLAMP

23

85D5

NUT 5

24

TUBELINE NLA - Order 6717298 & 6717297 tubeline - See Service Letter dated 10 Mar 99 - Was 6715074 - A

24

6717298

TUBELINE

25

TUBELINE NLA - Order 6717297 & 6717298 tubeline - See Service Letter dated 10 Mar 99 - Was 6715073 - A

25

6717297

TUBELINE

26

1306637

CLIP

27

6731008

CLAMP Was 6713937 - A

28

17C560

BOLT

29

95D5

NUT

30

6716808

BRACKET Was 6712723 - A

31

6712522

HARNESS

32

6680456

HANDLE, 2-SWITCH PWM Was 6675465 - A

33

6673757

CONTROLLER

34

61D4

NUT 5

35

6717706

COIL, 10 VOLT 10 volt - Was 6666547 - A

35

6676566

NUT

36

6714777

TUBE

37

6714776

TUBE

38

6900571

INSTRUCTIONS
