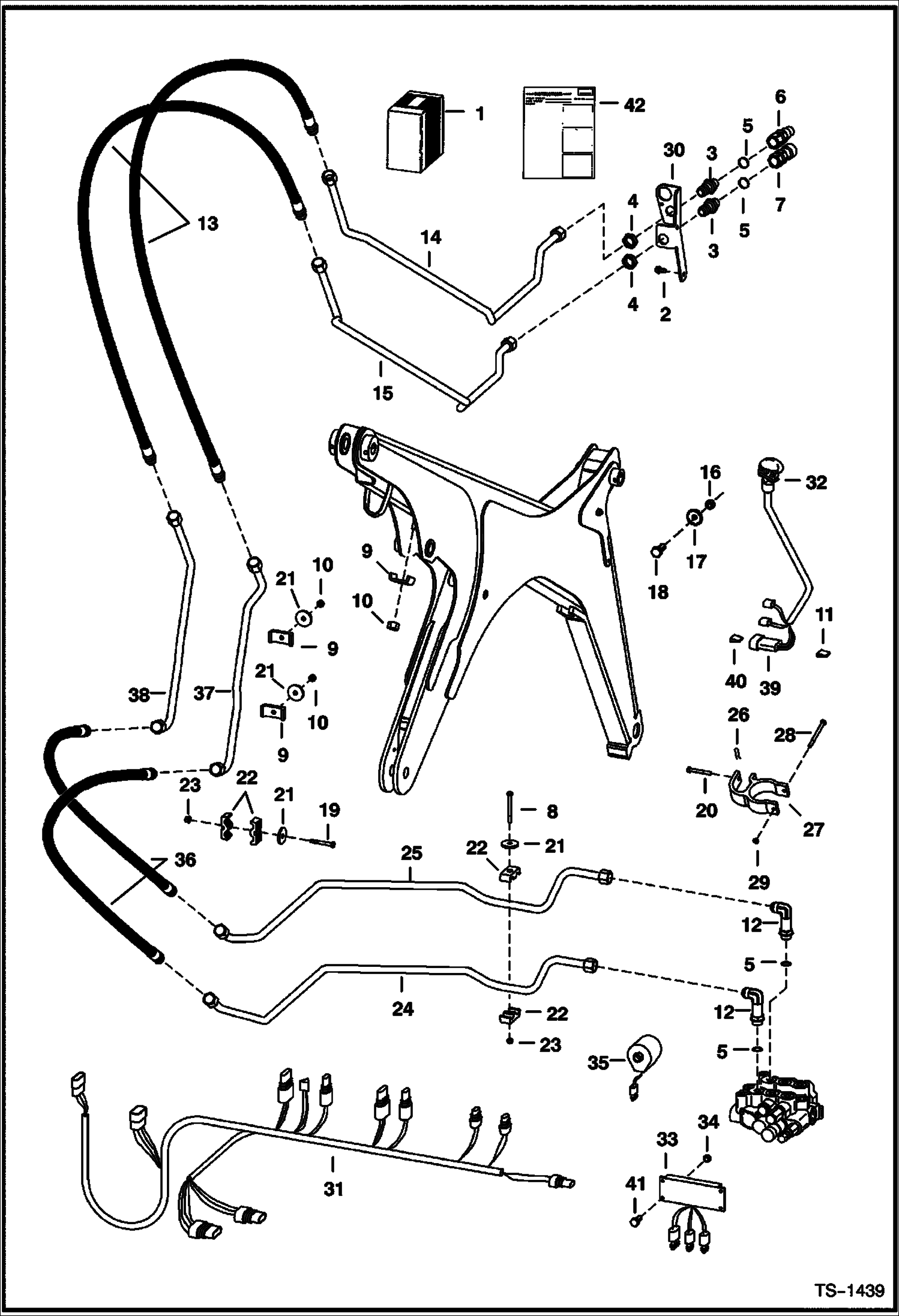

Запчасти Bobcat 800s FRONT AUXILIARY KIT (S/N 5141 12235-21999 & 5142 11264-21999) (For Proportional Auxiliaries W/Flush Face (FF) Style Couplers) ACCESSORIES & OPTIONS

1

6713257

KIT Ref. 2-42

2

84G3712

BOLT 5

3

45K8

ADAPTOR flat boss face - W/Ref. 5

3

CONNECTOR NLA - tapered boss face - W/Ref. 5 - Was 6716090 - A

3

6812823

ADAPTER flat boss face - W/Ref. 5 - Was 45K000008B - B

3

97K12

O'RING flared end

3

99K12

O RING tapered boss face

4

86F8

NUT 5

5

79K12

O RING 10 flat boss face

6

6674688

COUPLER, FF MALE straight - Was 6667808 - A

6

6679841

SEAL Was 6672026 - A

7

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

8

17C552

BOLT

9

6502203

CLAMP

10

95D6

NUT Was 91D000006B - A

11

6665370

PLUG

12

6519187

ELBOW W/Ref. 5 - not in kit

13

6710658

HOSE

14

6712717

TUBE

15

6712718

TUBE

16

61D6

NUT 5

17

25E17

WASHER 5

18

17C612

BOLT 5

19

37C540

BOLT

20

6541981

PIN

21

872229

WASHER

22

6592506

CLAMP

23

85D5

NUT 5

24

6712944

TUBE

25

6712943

TUBE

26

1306637

CLIP

27

CLAMP NLA - Order 6713937 - Was 6709151 - A

27

6731008

CLAMP Was 6713937 - A

28

17C560

BOLT

29

91D5

NUT 5

30

6716808

BRACKET Was 6712723 - A

31

6712522

HARNESS Was 6675465 - A

32

6675465

HANDLE ASSY. R.H. - Was 6705922 - A

33

6673757

CONTROLLER Was 6668773 - A

34

61D4

NUT 5

35

6717706

COIL, 10 VOLT 10 volt - not in kit - Was 6666547 - A

35

6676566

NUT

36

6670121

HOSE

37

6714776

TUBE Was 6712952 - A

38

6714777

TUBE Was 6712953 - A

39

6662246

CONNECTOR 6-pin

40

6662252

LOCK 6-pin

41

10C412

BOLT

42

6724908

INSTRUCTIONS
