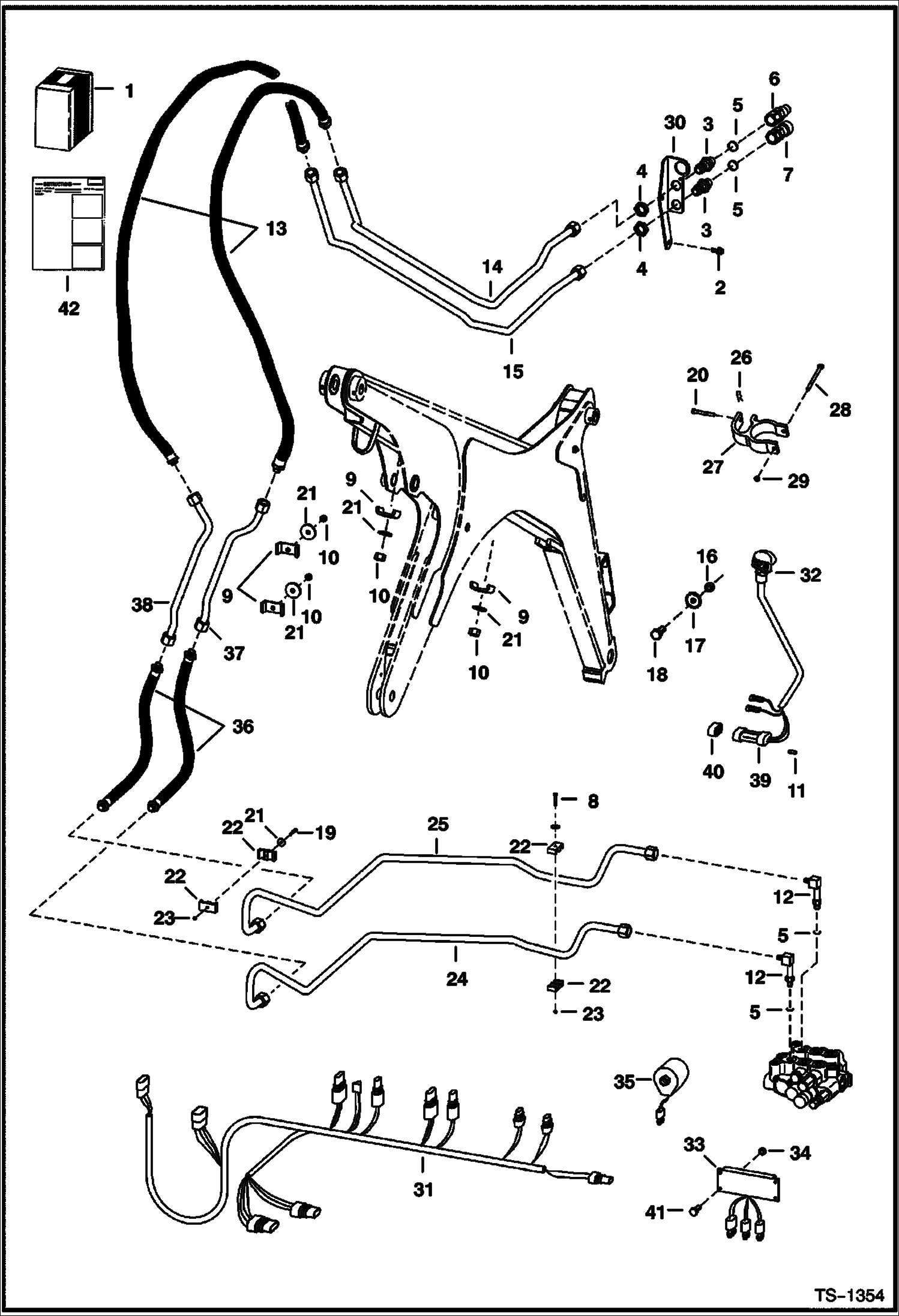

Запчасти Bobcat 800s FRONT AUXILIARY KIT (S/N 5141 11443-12234 & 5142 11113-11263) (For Proportional Auxiliaries W/Flush Face (FF) Style Couplers) ACCESSORIES & OPTIONS

1

KIT See Illustration FRONT AUXILIARY KIT/ TS1439 NLA - REF. 2-43 - ORDER 6713257 KIT - WAS 6712077 - A

2

84G3712

BOLT 5

3

45K8

ADAPTOR

4

86F8

NUT 5

5

79K12

O RING 10

6

6674688

COUPLER, FF MALE straight - Was 6667808 - A

6

6679841

SEAL Was 6672026 - A

7

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

8

17C552

BOLT

9

6502203

CLAMP

10

95D6

NUT Was 91D000006B - A

11

6665370

PLUG

12

6519187

ELBOW W/Ref. 5 - Not in Kit

13

6710658

HOSE

14

6711837

TUBE

15

6711838

TUBE

16

61D6

NUT 5

17

25E17

WASHER 5

18

17C612

BOLT 5

19

37C540

BOLT

20

6541981

PIN

21

872229

WASHER

22

6592506

CLAMP

23

85D5

NUT 5

24

6709730

TUBE

25

6709729

TUBE

26

1306637

CLIP

27

6731008

CLAMP Was 6713937 - A

28

17C560

BOLT

29

91D5

NUT 5

30

6711839

BRACKET

31

6708284

HARNESS

32

6680456

HANDLE, 2-SWITCH PWM R.H. - Was 6675465 - A

33

6673757

CONTROLLER Was 6668773 - A

34

61D4

NUT 5

35

6717706

COIL, 10 VOLT 10 volt - Not in Kit - Was 6666547 - A

35

6676566

NUT

36

6670121

HOSE Was 6710669 - C

37

6714776

TUBE Was 6712952 - A

38

6714777

TUBE Was 6712953 - A

39

6662246

CONNECTOR 6-pin

40

6662252

LOCK 6-pin

41

10C412

BOLT

42

6724798

INSTRUCTIONS
