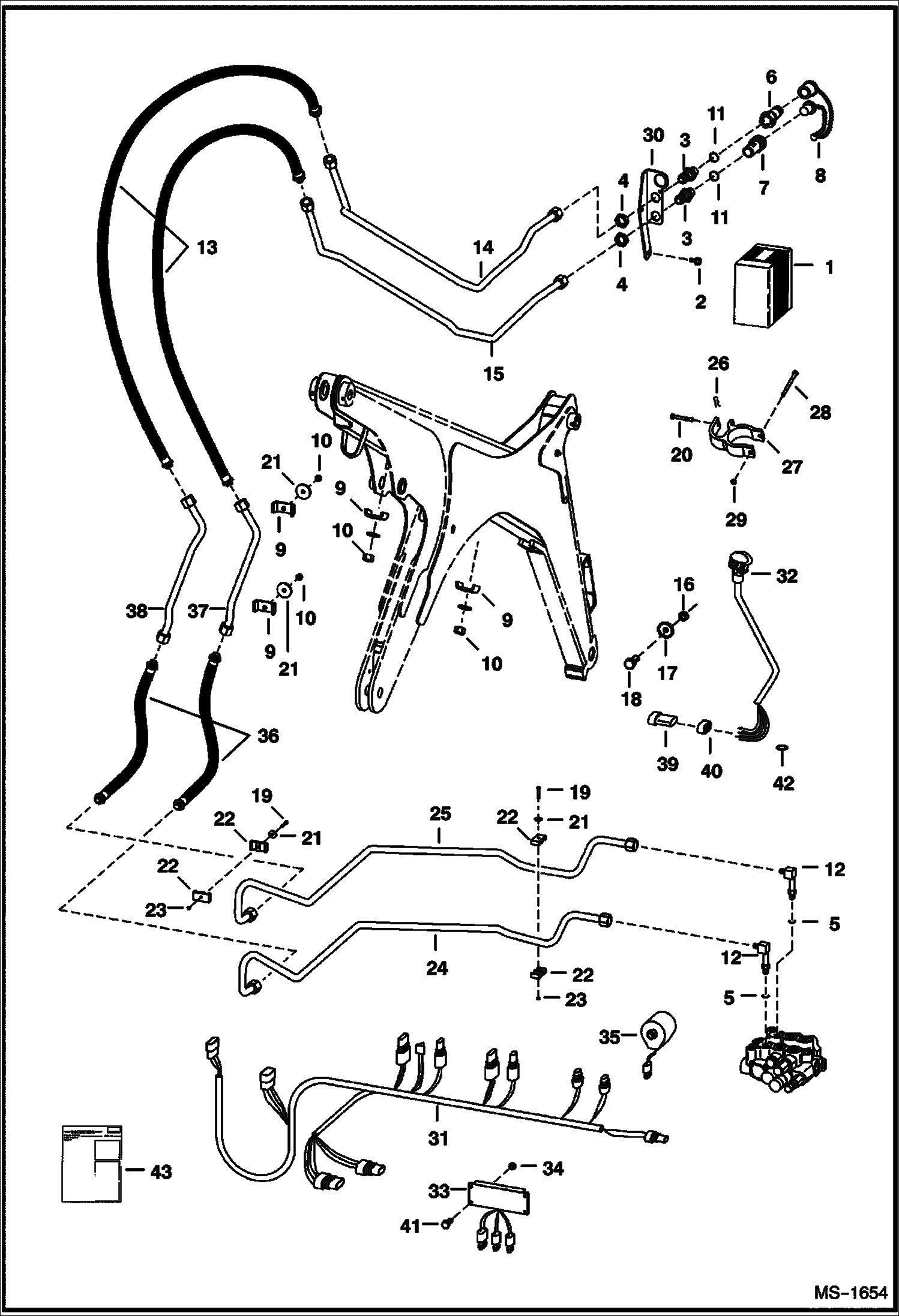

Запчасти Bobcat 800s FRONT AUXILIARY KIT (S/N 5141 11425-11442 & 5142 11105-11112) (For Proportional Auxiliaries W/Poppet Style Couplers) ACCESSORIES & OPTIONS

1

6710291

KIT Ref. 2-4, 6-11, 13-34 & 36-43

2

84G3712

BOLT 5

3

6579875

CONNECTOR

4

86F8

NUT 5

5

79K12

O RING 10 not in kit

6

6598757

COUPLER, POPPET MALE straight

7

6598758

COUPLER, POPPET FEMALE straight

7

48K16

O RING 10

7

6665430

BACKUP RING

8

6513709

CAP PLUG W/ plug assy. - rubber

8

6515167

PLUG steel

8

6515168

CAP steel

9

6502203

CLAMP

10

95D6

NUT Was 91D000006B - A

11

79K10

O RING 10

12

6519187

ELBOW W/Ref. 5 - not in kit

13

6710658

HOSE

14

6710655

TUBE

15

6710656

TUBE

16

61D6

NUT 5

17

25E17

WASHER 5

18

17C612

BOLT 5

19

37C540

BOLT

20

6541981

PIN

21

872229

WASHER

22

6592506

CLAMP

23

85D5

NUT 5

24

6709730

TUBE

25

6709729

TUBE

26

1306637

CLIP

27

6731008

CLAMP Was 6713937 - A

28

17C560

BOLT

29

89D5

NUT

30

6706722

BRACKET

31

6708284

HARNESS

32

6680456

HANDLE, 2-SWITCH PWM R.H. - Was 6675465 - A

33

6673757

CONTROLLER Was 6668773 - A

34

61D4

NUT 5

35

6717706

COIL, 10 VOLT 10 volt - not in kit - Was 6666547 - A

35

6676566

NUT

36

6670121

HOSE Was 6710669 - C

37

6714776

TUBE Was 6712952 - A

38

6714777

TUBE Was 6712953 - A

39

6662246

CONNECTOR 6-pin

40

6662252

LOCK 6-pin

41

10C412

BOLT

42

6665370

PLUG

43

6724200

INSTRUCTIONS
