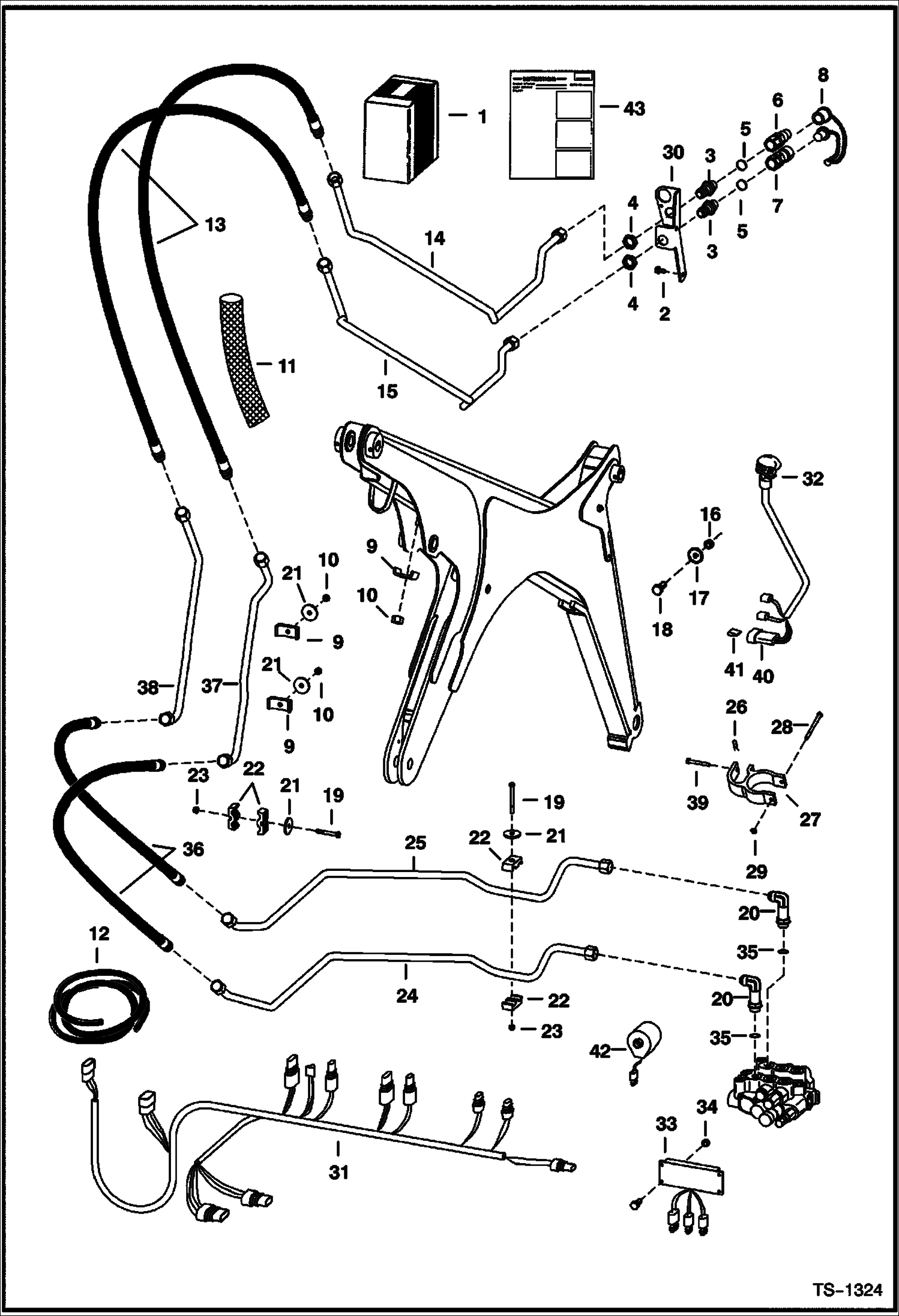

Запчасти Bobcat 800s FRONT AUXILIARY KIT (S/N 5141 11424, 5142 11104 & Below) ACCESSORIES & OPTIONS

1

6708599

KIT Ref. 2-19, 21-41 & 43

2

84G3712

BOLT 5

3

6579875

CONNECTOR

4

86F8

NUT 5

5

79K10

O RING 10

6

6598757

COUPLER, POPPET MALE straight

7

6598758

COUPLER, POPPET FEMALE straight

7

48K16

O RING 10

7

6665430

BACKUP RING

8

6513709

CAP PLUG W/ plug assy. - rubber

8

6515167

PLUG steel

8

6515168

CAP steel

9

6502203

CLAMP

10

95D6

NUT Was 91D000005B - A

11

SHIELD NLA - 50'' (1270mm) long - Order Ref. 12

12

6651436

HOSE COVER bulk - 2.38'' I.D. - Sold Per Foot

13

6710658

HOSE Was 6708575 - C

14

6710655

TUBE Was 6708573 - C

15

6710656

TUBE Was 6708574 - C

16

61D6

NUT 5

17

25E17

WASHER 5

18

17C612

BOLT 5

19

37C540

BOLT

20

6519187

ELBOW W/Ref. 35 - Not In kit

21

872229

WASHER

22

6592506

CLAMP

23

85D5

NUT 5

24

6708418

TUBE

24

6709729

TUBE

25

6708419

TUBE

25

6709730

TUBE

26

1306637

CLIP

27

6731008

CLAMP Was 6713937 - A

28

17C560

BOLT

29

89D5

NUT

30

6706722

BRACKET

31

6708055

HARNESS

32

6680414

HANDLE ASSY. Was 6705921 - A

33

6669529

MODULE Was 6668773 - A

34

85D4

NUT 5

35

79K12

O RING 10

36

6670121

HOSE Was 6710669 - C

37

6714776

TUBE Was 6712952 - A

38

6714777

TUBE Was 6712953 - A

39

6541981

PIN clevis

40

6641180

LOCK Use W/ 2-pin connector

40

6640700

LOCK 3-pin

41

6641179

CONNECTOR 2-pin

41

6640699

CONNECTOR 3-pin

42

6717708

COIL, 14 VOLT 14 volt - not in kit - W/nut - Was 6665759 - A

42

6679961

NUT

43

6724200

INSTRUCTIONS
