Запчасти Bobcat 800s EUROPEAN ACCESSORIES ACCESSORIES & OPTIONS

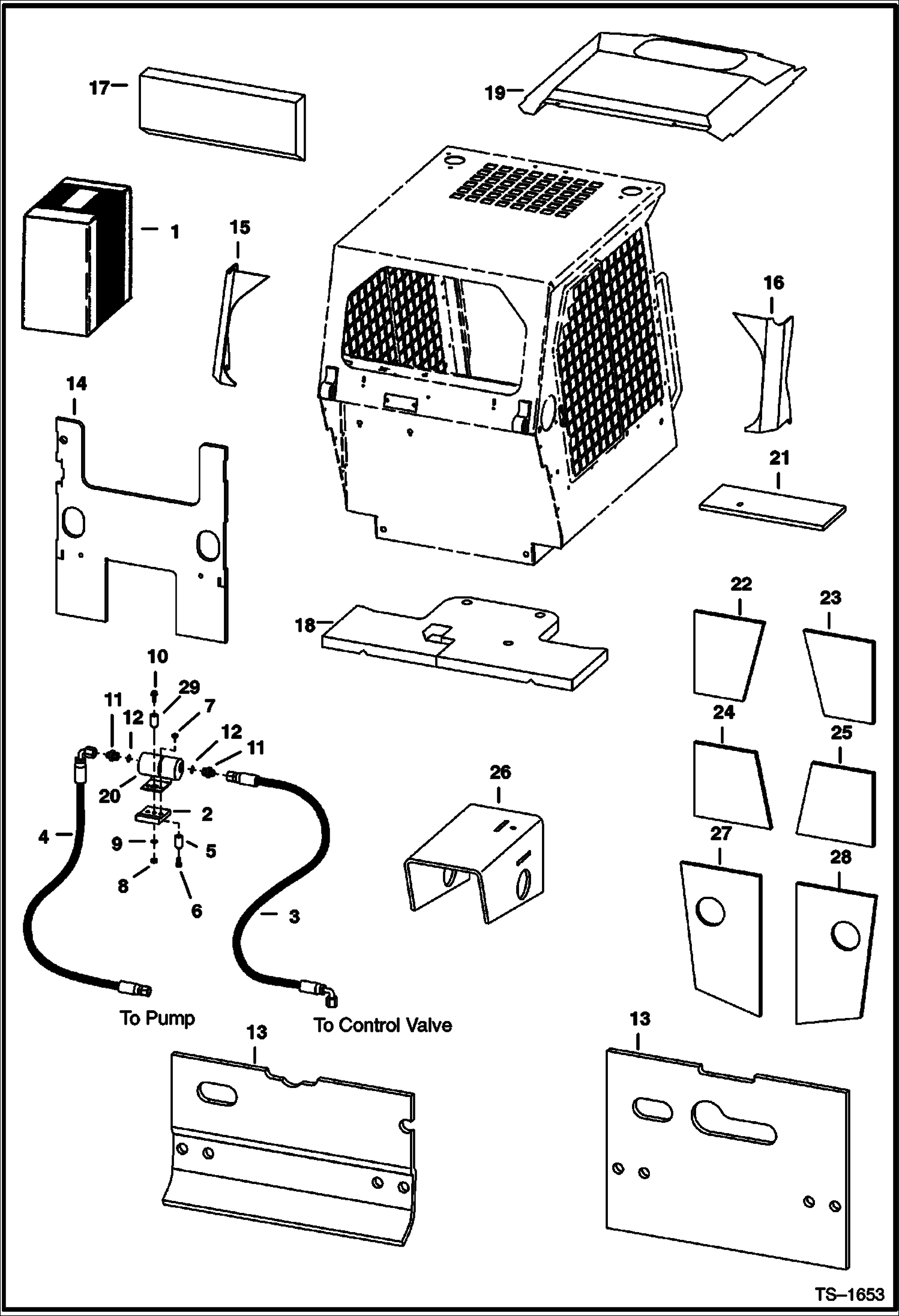

Схема запчастей Bobcat 800s - EUROPEAN ACCESSORIES ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

KIT NLA - Ref. 2-28 - Order individual parts

2

6705333

MOUNT

3

6714978

HOSE

4

6729156

HOSE Was 6714977 - A

5

6562619

BUSHING

6

35C616

BOLT 5

7

85D6

NUT, 5

8

83D6

NUT 5

9

619021

WASHER, 5

10

37C624

BOLT

11

15KB1212

FITTING, HYD CONNECTOR Was 15KN00008B - A

11

97K12

O'RING Was 96K000012B - A

12

98K12

O-RING

13

6715106

INSULATION rear door - for 1-piece rear door

13

6704752

INSULATION rear door - for 2-piece rear door

14

6715196

INSULATION steering panel

15

6715098

INSULATION cab back - L.H.

16

6715097

INSULATION cab back - R.H.

17

6715096

INSULATION cab back

18

6715095

INSULATION seat pan

19

6715094

INSULATION cab top

20

6659982

MUFFLER hydraulic

21

6715437

INSULATION

22

6715439

INSULATION

23

6715440

INSULATION

24

6715441

INSULATION

25

6715442

INSULATION

26

6715443

INSULATION

27

6715456

INSULATION

28

6715457

INSULATION

29

6715744

BUSHING

Выбрано товаров: 31
