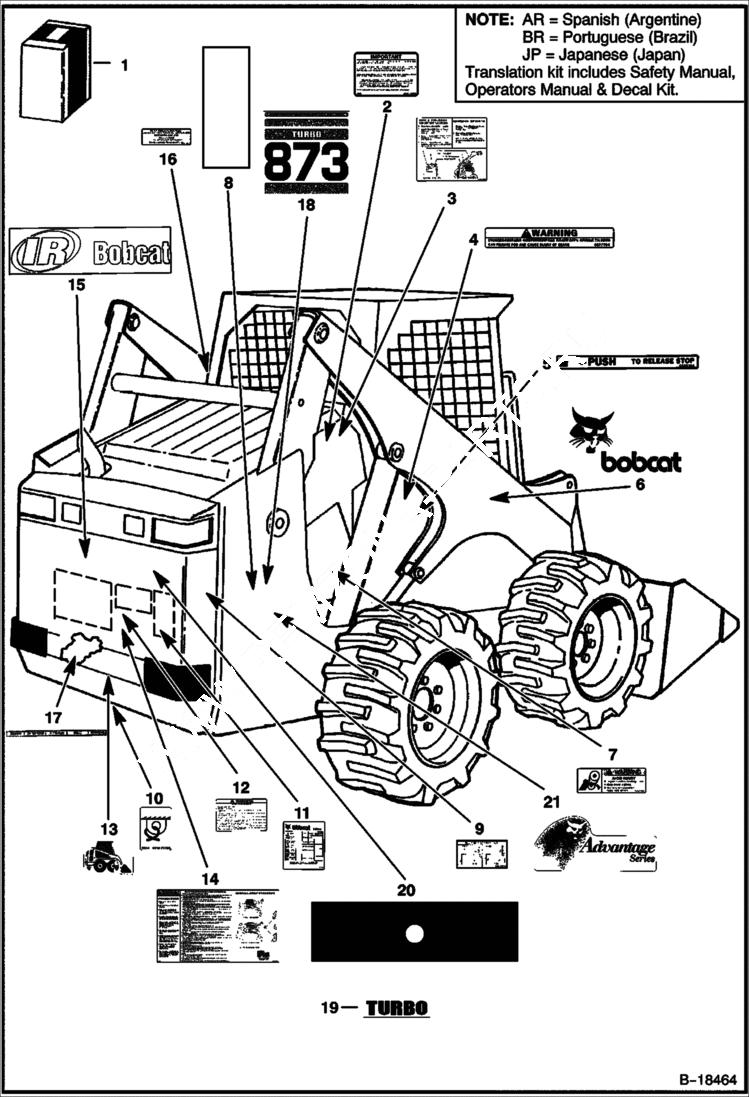

Запчасти Bobcat 800s DECALS ACCESSORIES & OPTIONS

1

6900505

KIT decal

1

6715610AR

KIT translation - SEE NOTE

1

6715610BR

KIT translation - SEE NOTE

1

6715612AR

KIT decal - SEE NOTE

1

6715612BR

KIT decal - SEE NOTE

1

6715612JP

KIT decal - SEE NOTE

2

6560573

DECAL spark arrestor - Was 6708937 - A

3

6708820

DECAL lift arm stop

4

6577754

DECAL, WARNING 5 gas spring

5

6578368

DECAL, OPERATION push to release stop

6

6703645

DECAL R.H. - Bobcat head - for black lift arm

6

6557412

DECAL RH - Bobcat head - white lift arms - 193 x 424,2 mm (7.6 x 16.7'') - not in kit

6

6703646

DECAL L.H. - Bobcat head - for black lift arm

6

6557413

DECAL LH - Bobcat head - white lift arms - 193 x 424,2 mm (7.6 x 16.7'') - not in kit

6

6727309

DECAL, LOGO RH R.H. Bobcat & head - 10'' x 20'' - Was 6702826 - A

6

6727308

DECAL, LOGO BOBCAT LH - W/Bobcat head - 20'' x 10'' (508 mm x 254 mm) - Was 6702827 - A

7

6708941

DECAL, WARNING rotating parts

8

6708257

DECAL model no. R.H.

9

6715991

DECAL fuse - Was 6707786 - A

10

6727595

DECAL See Illustration DECALS/ B18463 Was 6595014 - B

11

DECAL NLA - filters - Order Ref. 14 - Was 6708936 - A

12

DECAL NLA - warning - Order Ref. 14 - Was 6579511 - A

13

DECAL NLA - tow hook - Order Ref. 10 - Was 6707867 - A

14

DECAL NLA - service - Order 6734534 - Was 6710457 - A

14

6734534

DECAL, SERVICE service/warning/filters - Was 6718398 - A

15

DECAL NLA - Bobcat Logo - two piece door - 9'' (229mm) x 22.75 (578mm ) - Was 6727307 - A

15

DECAL NLA - Logo - one piece door 10.3'' (262mm) x 28.5 (723mm) - Was 6727311 - A

16

6708929

DECAL, COOLANT propylene glycol

17

6707787

DECAL See Illustration ENGINE ELECTRICAL CIRCUITRY/ B18415 See Illustration ENGINE ELECTRICAL CIRCUITRY/ B18413 RELAY

18

6731475

DECAL model - Was 6714538 - A

19

6727912

DECAL turbo - for one piece door - Was 6714526 - A

20

6714242

DECAL tailgate - for one piece door

21

6718272

DECAL Advantage Series - R.H. - not in kit
