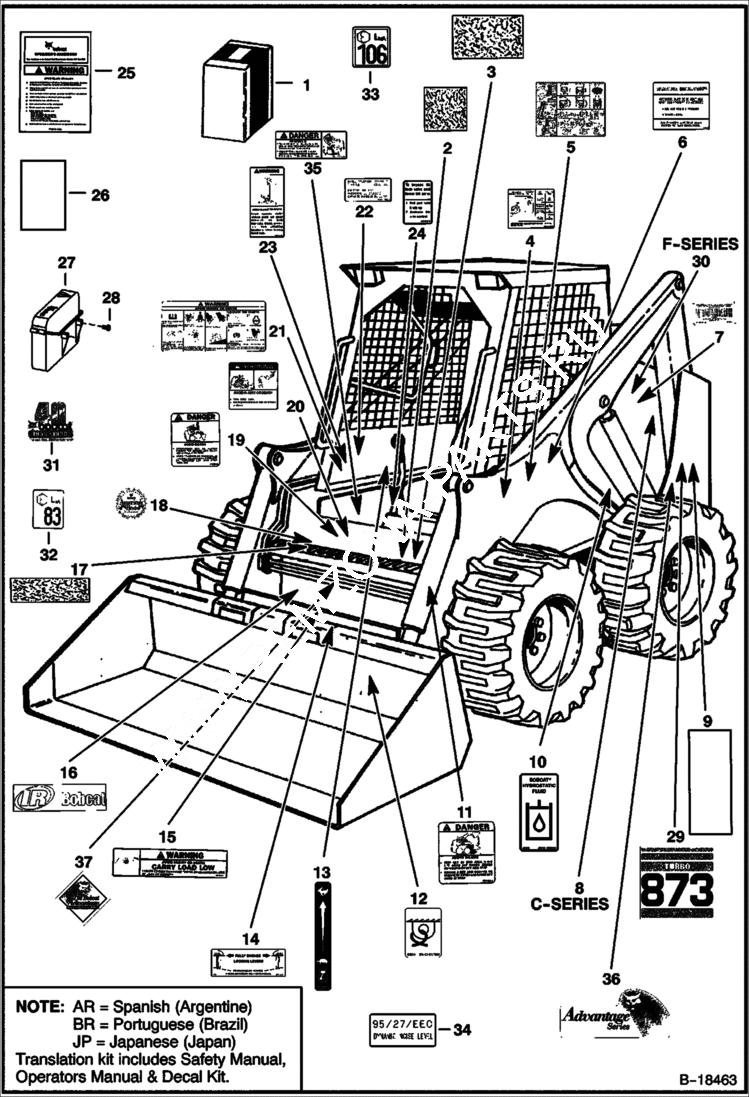

Запчасти Bobcat 800s DECALS ACCESSORIES & OPTIONS

1

6900505

KIT decal

1

6715610AR

KIT translation - SEE NOTE

1

6715610BR

KIT translation - SEE NOTE

1

6715612AR

KIT decal - SEE NOTE

1

6715612BR

KIT decal - SEE NOTE

1

6715612JP

KIT decal - SEE NOTE

2

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

3

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

4

6708942

DECAL pre-heat - Not in Kit

4

6713715

DECAL pre-heat

5

6703723

DECAL operation

6

6707255

DECAL seat & seat bar operating - W/seat sensor - Was NLA - D

6

6727926

DECAL, OPERATION hand & foot controls - not in kit - Was 6718703 - A

6

6717639

DECAL seat & seat bar operating - AHC - Was 6717043 - A

6

6717639

DECAL seat & seat bar operating - AHC - W/O seat sensor

7

DECAL NLA - patent - Was 6557224 - C

8

6708207

DECAL C-Series

9

6708256

DECAL model no. L.H.

10

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

11

6579639

DECAL danger

12

6727595

DECAL See Illustration DECALS/ B18464 Was 6595014 - B

13

6735140

DECAL, THROTTLE Was 6557565 - A

14

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

15

6579528

DECAL, WARNING carry load low

16

DECAL NLA - Ingersoll Rand - white lettering - Was 6728125 - A

17

SAFETY TREAD NLA - 12'' x 25.30'' (304,8 mm x 642,6 mm) - Order 7108222 - Was 6712791 - A

17

7108222

SAFETY TREAD 22.5'' (571,5 mm) wide irregular shape

18

6705088

DECAL America's Best

19

6579509

DECAL danger

20

6710358

DECAL warning

21

6579510

DECAL warning

22

6708935

DECAL capacity

23

6705720

DECAL lock shield

24

6706809

DECAL lift lock

25

6708154

HANDBOOK, OPERATOR'S W/WIRE ROPE

25

6708154ES

KIT handbook - W/wire rope - Spanish

25

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

25

6558310

SLEEVE wire rope

26

6724262

MANUAL operator

27

6708827

CONTAINER manuals

28

6702642

SCREW

29

6731475

DECAL model - Was 6714538 - A

30

6714858

DECAL F-series

31

6715912

DECAL 40th anniversary

32

6579399

DECAL noise level - Europe

33

6579403

DECAL noise level - Europe

34

6715428

DECAL dynamic noise level - Europe

35

6717343

DECAL, DANGER

36

6718271

DECAL advantage series - L.H. - not in kit

37

6718275

DECAL Bobcat advantage
