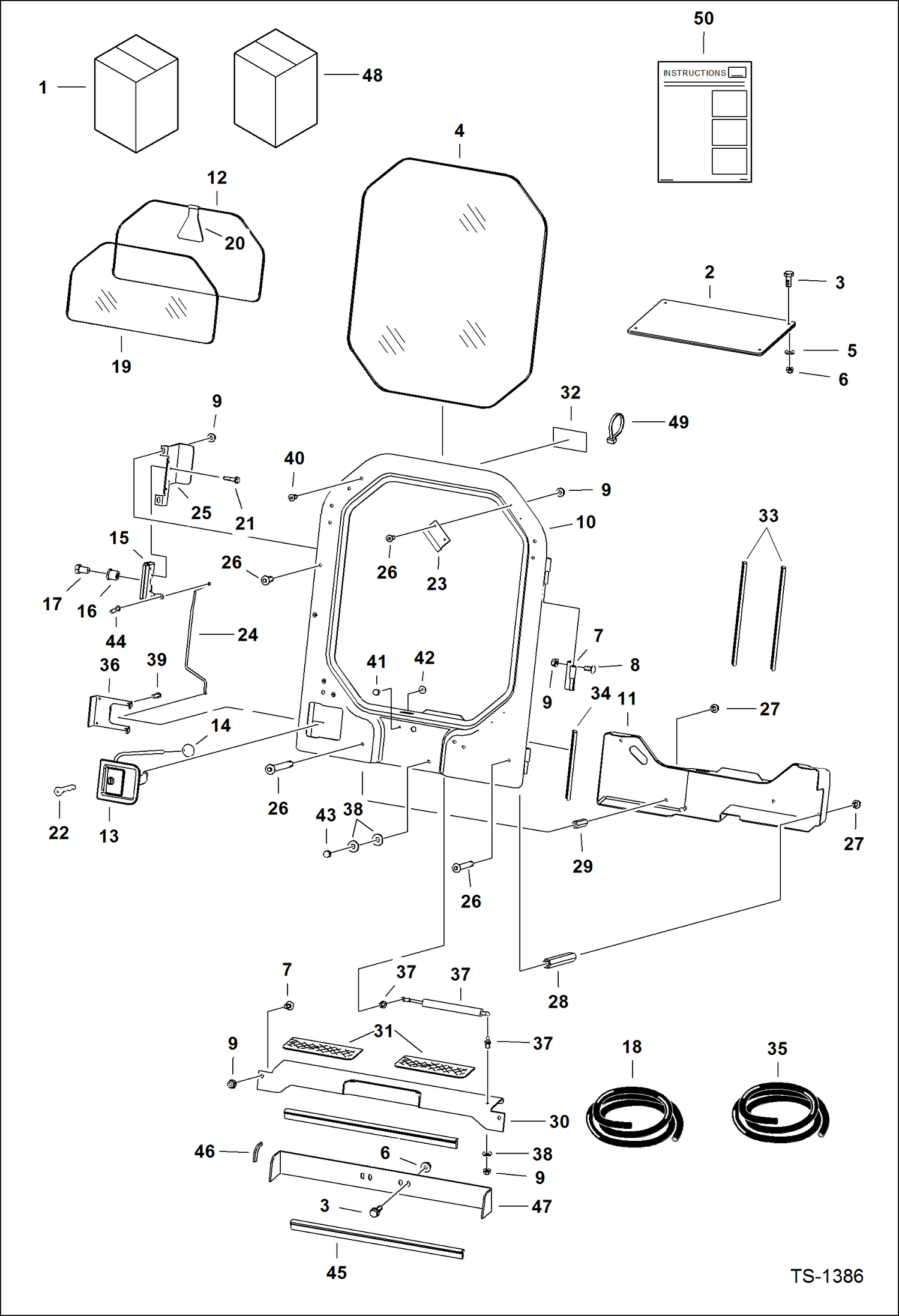

Запчасти Bobcat 800s CAB ENCLOSURE (Special Applications) ACCESSORIES & OPTIONS

1

KIT SALES - special applications

2

6705216

WINDOW top

3

35C616

BOLT 5

4

6708499

WINDOW .5'' thick - plexiglass - for special applications door

5

25E18

WASHER

6

83D6

NUT 5

7

6707216

HINGE

8

10C512

BOLT

9

57D5

NUT

10

6707220

FRAME, DOOR CAB Also Order Ref. 32 (6707852 decal)

11

6707179

SHIELD

12

EXTRUSION NLA - rear window - 81.5'' (2070mm) long - Order Ref. 18

12

CORD NLA - rear window - 81.5'' (2070mm) long - Order Ref. 18 - Also Order Ref. 20 (6731478 exit tag)

13

6665530

LATCH W/Ref. 14 - Also Order Ref. 22

14

6647635

KNOB

15

6665531

LATCH

16

6568047

NUT bushing

17

17C712

BOLT

18

6665568

EXTRUSION bulk - sold per foot

18

6554149

CORD, BULK/FT bulk - Sold Per Foot

19

6579325

WINDOW .25'' thick poly carbonate

20

6731478

EXIT TAG Was 6559515 - A

21

35C412

BOLT

22

6632560

KEY

23

6708500

CLAMP

24

6707221

ROD latch release

25

6707222

MOUNT latch

26

25G512

SCREW

27

35C510

BOLT

28

6707223

COUPLING

29

6707224

COUPLING

30

6708926

SHIELD bolts to cab

31

6703757

SAFETY TREAD

32

6707852

DECAL, EXIT emergency

33

SEAL NLA - front window - 91'' (2311 mm) long - Order Ref. 18 - Also Order Ref. 49 (6610510 tie)

33

CORD NLA - front window - 91'' (2311 mm) long - Order Ref. 18 - Also Order Ref. 20 (6731478 exit tag)

34

SEAL NLA - 137'' (3480 mm) long - Order Ref. 35

35

6513152

SEAL bulk - sold per foot

36

6703751

RETAINER

37

6630797

GAS SPRING

37

6632221

STUD ball

37

2756257

CLIP spring

38

25E16

WSHR

39

45G1008

BOLT

40

5289686

PLUG black - 0.38'' dia hole

41

17C408

BOLT

42

55D4

NUT

43

46D5

NUT

44

6512274

CLIP

45

SEAL NLA - 28.62'' (727 mm) long - Order Ref. 46

46

6632045

SEAL bulk - Sold Per Foot

47

6707236

SHIELD bolts to mainframe

48

6708976

KIT shield - Ref. 3, 6, 7, 9, 30, 31 & 46-48

49

6610510

TIE

50

6724029

INSTRUCTIONS
