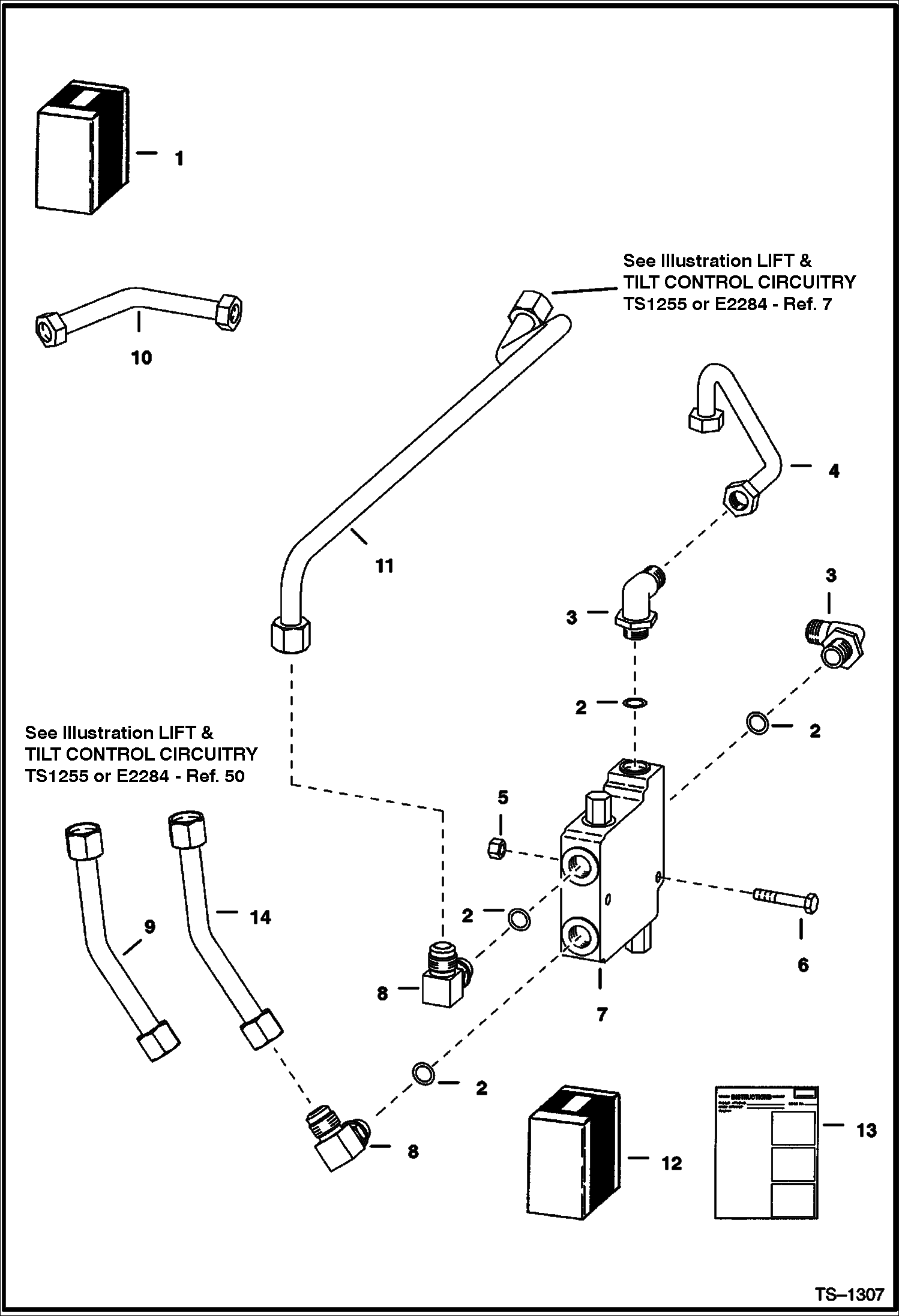

Запчасти Bobcat 800s BUCKET POSITIONING KIT (S/N 5141 21999 & Below) ACCESSORIES & OPTIONS

1

6708549

KIT Ref. 2-13

2

79K10

O RING 10 flat boss face

2

99K10

O'RING tapered boss face

3

17K7

ELBOW W/Ref. 2 - flat boss face

3

17KB1010

FITTING, HYD ELBOW W/Ref. 2 - tapered boss face - Was 17KV00007B - A

3

97K10

O-RING 10 flared end

4

6706494

TUBE

5

85D5

NUT 5

6

17C540

BOLT

7

VALVE See Illustration BUCKET POSITIONING VALVE/ MS1943 - bucket position

8

17KB1210

FITTING, HYD ELBOW W/Ref. 2 - flat boss face - Was 6714901 - A

9

6706498

TUBELINE

10

6706499

TUBE

11

6709005

TUBE

12

6712678

KIT See Illustration BUCKET POSITION ON-OFF KIT/ B14243 - position on-off - WAS 6707682 - A

13

6724202

INSTRUCTIONS

14

6714522

TUBELINE
