Запчасти Bobcat 800s BLOCK HEATER (Oil Pan Installed) (120 Volt) ACCESSORIES & OPTIONS

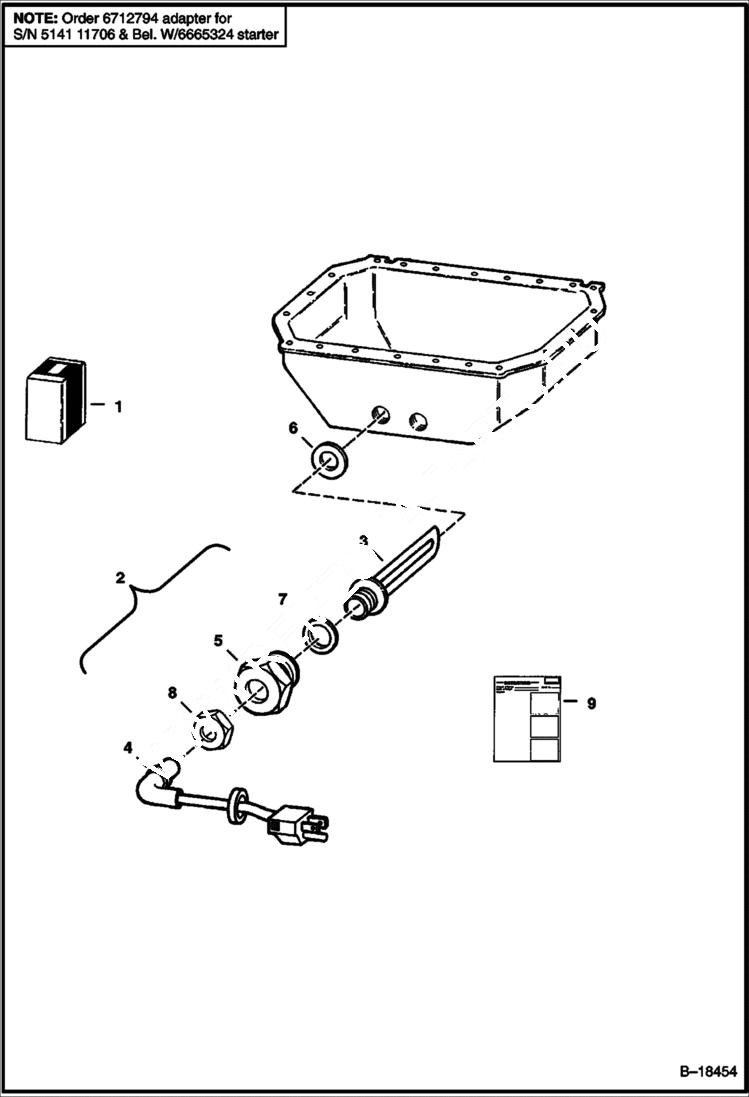

Схема запчастей Bobcat 800s - BLOCK HEATER (Oil Pan Installed) (120 Volt) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6710192

KIT Ref. 2 & 9

2

6709514

HEATER ASSY. Ref. 3-8

3

6709508

ELEMENT 150 watts

4

6709509

CORD

5

6709510

ADAPTER 48mm threads O.D.

5

6712794

ADAPTER SEE NOTE - 48mm threads OD

6

6709511

WASHER sealing

7

6709513

GASKET

8

6709840

NUT

9

6724397

INSTRUCTIONS

Выбрано товаров: 10
