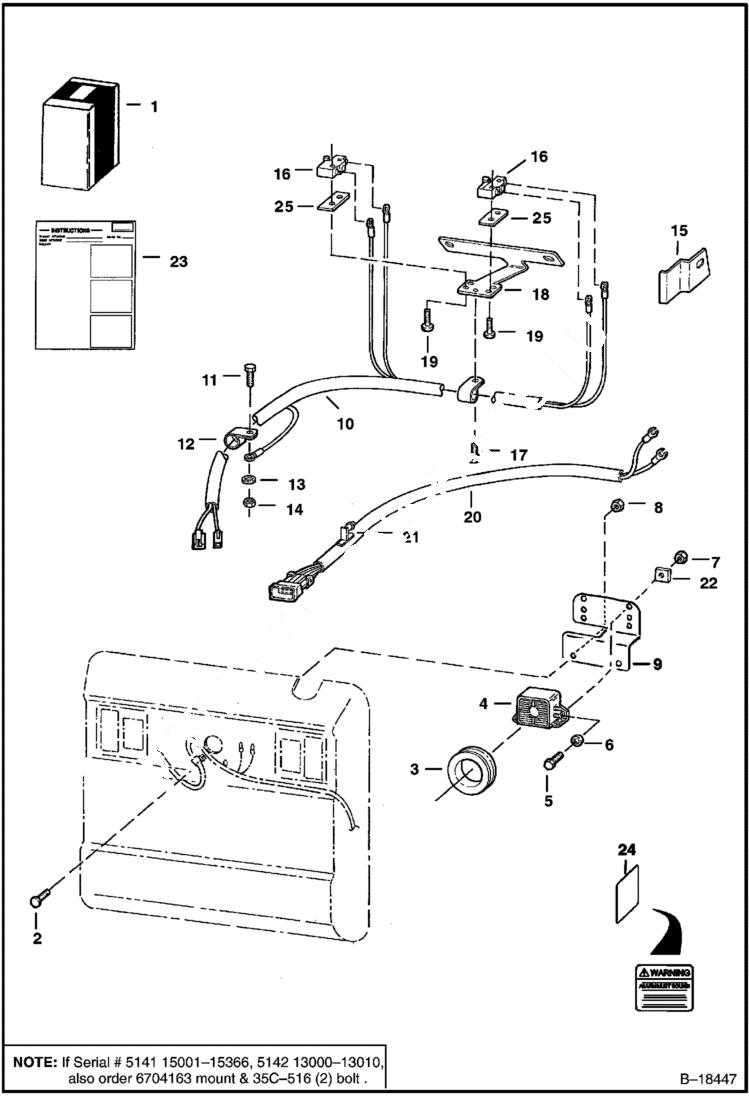

Запчасти Bobcat 800s BACK-UP ALARM KIT (S/N 5141 15001-39999, 5142 13000-39999) ACCESSORIES & OPTIONS

1

6714980

KIT back-up alarm - Ref. 2-23 - SEE NOTE

2

37C512

BOLT

3

6577545

GROMMET

4

6651512

ALARM, BACK-UP Was 6599931 - A

5

35C410

BOLT 5 Was 17C000410B - B

6

25E13

WASHER 5 Not in Kit

7

61D5

NUT

8

97D4

NUT Was 83D000004B - B

9

6733970

MOUNT Was 6707726 - A

10

6704358

HARNESS

11

17C412

BOLT 5

12

30H19

CLIP insulated - Was 30H000021B - B,D

13

6E4

WASHER 10

14

61D4

NUT 5

15

6713793

BRACKET switch

16

6646781

SWITCH alarm

17

84G3112

BOLT 5

18

7100153

MOUNT switch - Was 6713792 - A

19

59G616

SCREW 10

20

6715659

HARNESS Use on machines W/O rear lights - W/Ref. 21

21

6672492

RETAINER

22

774220

NUT

23

6722083

INSTRUCTIONS

24

6737189

DECAL, WARNING backup alarm

25

6702593

SPACER
