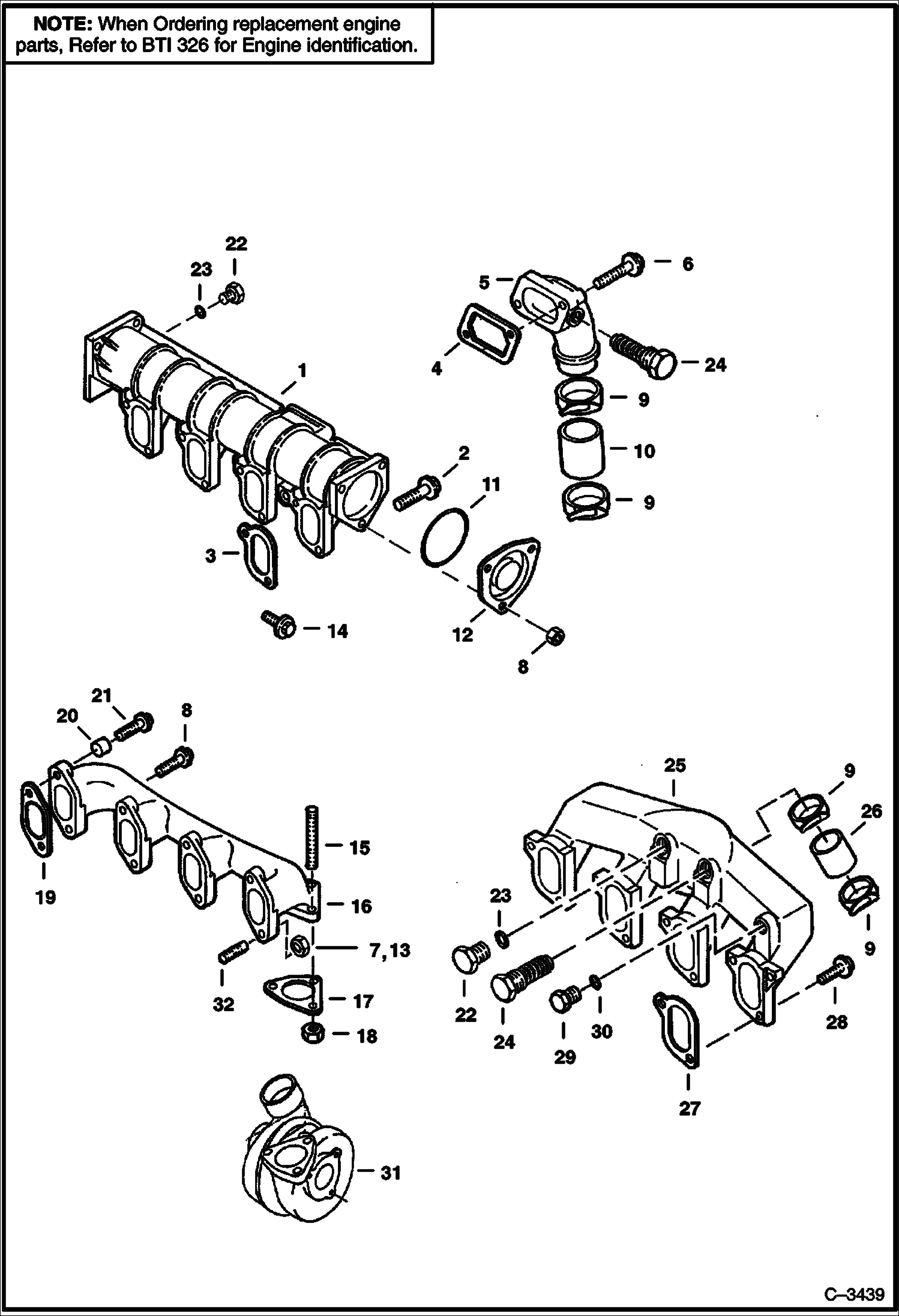

Запчасти Bobcat 800s MANIFOLDS POWER UNIT

1

MANIFOLD NLA - intake - Order Ref. 25, 26, (4) of Ref. 27 & (8) of Ref. 28 - Was 6666524 - A

2

6666432

BOLT

3

6670315

GASKET Was 6666478 - A

4

6666479

GASKET

5

6666467

ELBOW air change

6

6688186

BOLT Was 6666436 - A

7

1DM10

NUT

8

6666427

BOLT

9

6666419

CLAMP

10

6666411

HOSE 1.75'' (44,5 mm) long

11

6666425

O-RING

12

6666468

FLANGE

13

1DM8

NUT

14

6668938

BOLT Was 6666431 - A

15

6666407

STUD

15

6672947

STUD

16

MANIFOLD NLA - exhaust - short & long stroke - non-EPA - Order 6673170 , 6673172 bolt & 6673171 (7) bolt - Was 6668949 - A

16

6673170

MANIFOLD exhaust - short & long stroke - EPA

17

6666473

GASKET

18

6666398

NUT

18

6672948

NUT

19

6666472

GASKET

20

6666440

BUSHING short & long stroke - non-EPA

21

6673171

BOLT

22

6666397

PLUG

23

6668888

WASHER

24

6511720

PRE-HEATER

25

6690619

MANIFOLD intake - Was 6670316 - A

26

6670314

HOSE 3.25'' (83mm) long

27

6670315

GASKET

28

6670313

BOLT

29

6672938

PLUG

30

6672939

O-RING

31

TURBOCHARGER See Illustration CRANKCASE & OIL PAN/ B14310

32

26CM1040

STUD
