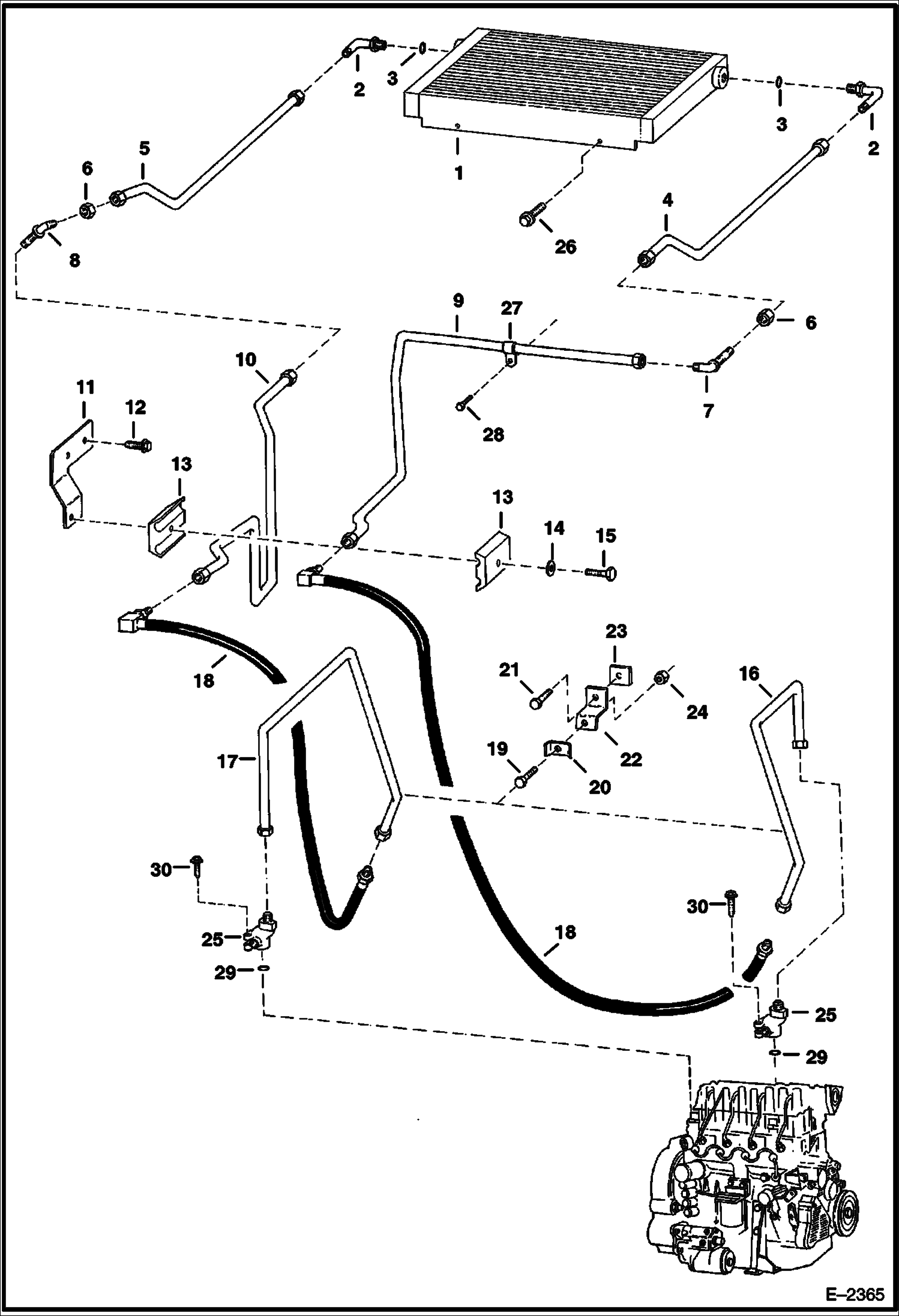

Запчасти Bobcat 800s COOLING SYSTEM (S/N 5141 11516-23935, 5142 11108-22307) POWER UNIT

1

6710791

COOLER engine oil

2

17K8

FITTING W/Ref. 3 - flat boss face

2

ELBOW NLA - W/Ref. 3 - tapered boss face - Was 17KV00008B - A

2

97K12

O'RING flared end

2

17KB1212

FITTING, HYD ELBOW W/Ref. 3 - flat boss face

3

79K12

O RING 10 flat boss face

3

99K12

O RING tapered boss face

4

6710537

TUBE

5

6710495

TUBE

6

86F8

NUT 5

7

88F8

FITTING

7

88F8

FITTING W/ O-rings - Was 88FN00008B - A

7

97K12

O'RING for 88FN00008B elbow

8

46K8

ELBOW

8

46K8

ELBOW W/ O-rings - Was 46KN00008B - A

8

97K12

O'RING for 46KN00008B elbow

9

6710872

TUBE

10

6710464

TUBE

11

6710538

BRACKET

12

84G3712

BOLT 5

13

6592506

CLAMP tubeline clamp

13

6502426

CLAMP tubeline clamp

14

872229

WASHER flat round

15

84G3732

BOLT .375 x 2''

15

84G3724

BOLT .375 x 1.5''

16

6710466

TUBE

17

6710465

TUBE

18

6710462

HOSE

19

17C624

BOLT 5

20

6502426

CLAMP

21

1CM825

BOLT

22

6710463

BRACKET

23

6565433

WASHER

24

85D6

NUT, 5

25

6666762

ADAPTER

26

35C612

BOLT

27

30H42

CLAMP

28

84G3116

SCREW Was 84G003112B - B

29

6666712

O-RING

30

6666696

BOLT
