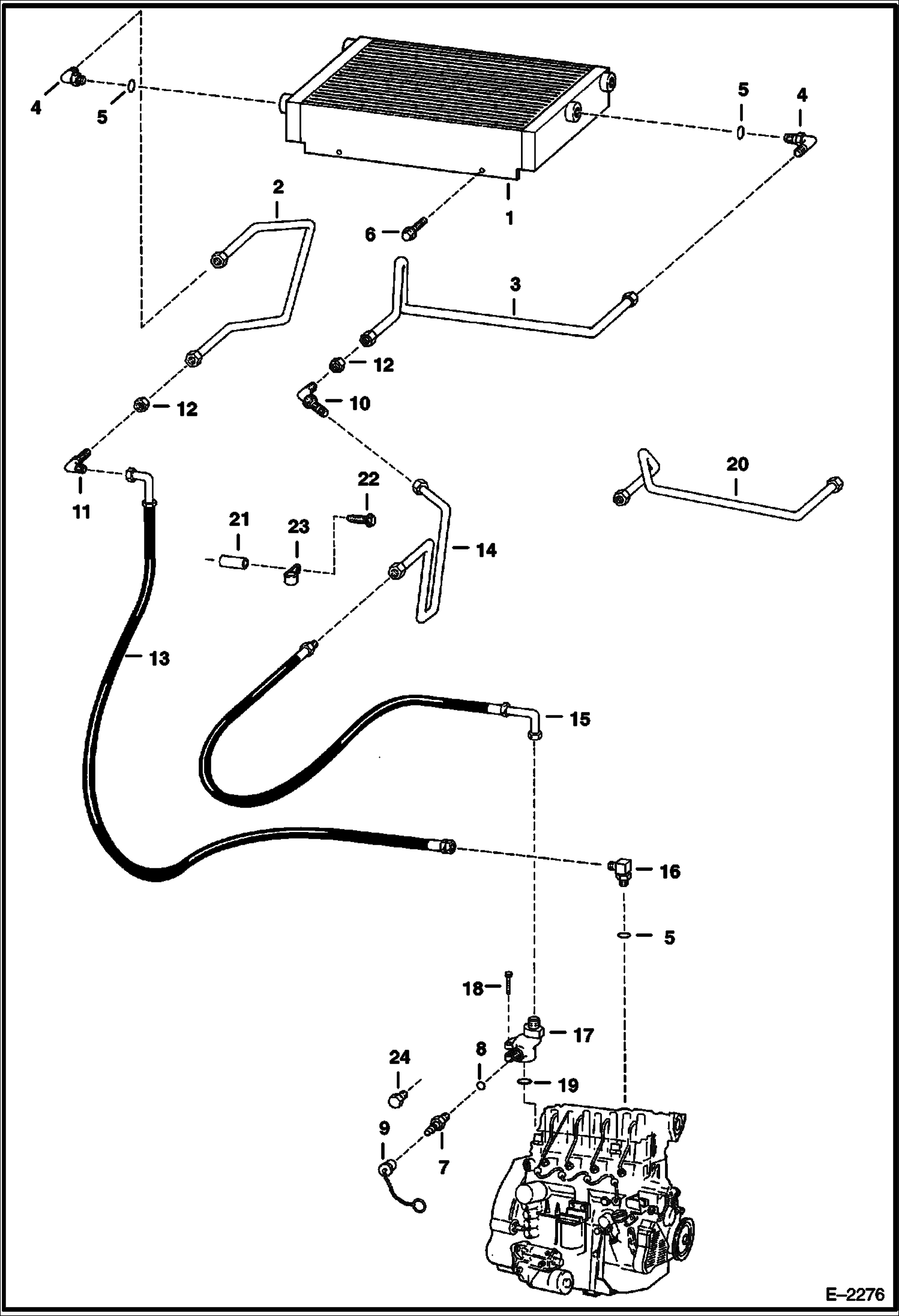

Запчасти Bobcat 800s COOLING SYSTEM (S/N 5141 11515, 5142 11107 & Below) POWER UNIT

1

COOLER See Illustration HYDROSTATIC CIRCUITRY/ TS1310 - NLA - oil - Order 6709450 cooler & 6709451 tube - Was 6708609 - A

1

6709450

EXCHANGER, OIL COOLER See Illustration HYDROSTATIC CIRCUITRY/ TS1310 - oil

2

6708413

TUBE

3

6709451

TUBE

3

6710494

TUBE used only with Ref. 41 on Ill. E2324

4

17K8

FITTING W/Ref. 5

5

79K12

O RING 10

6

35C610

BOLT 5

7

ADAPTER NLA - oil fill - W/Ref. 8 - Order Ref. 24 - Was 6666595 - A

8

6667339

O-RING

9

6666879

CAP dust

10

46K8

ELBOW

11

88F8

FITTING

12

86F8

NUT 5

13

6709014

HOSE

14

6708415

TUBE

15

6708692

HOSE

16

11K8

ELBOW W/Ref. 5

17

6666762

ADAPTER

18

6666696

BOLT

19

6666712

O-RING

20

6708414

TUBE Use W/6709450 cooler

21

6709739

BUSHING spacer

22

84G3732

BOLT

23

30H42

CLAMP

24

1KM14

PLUG W/Ref. 8
