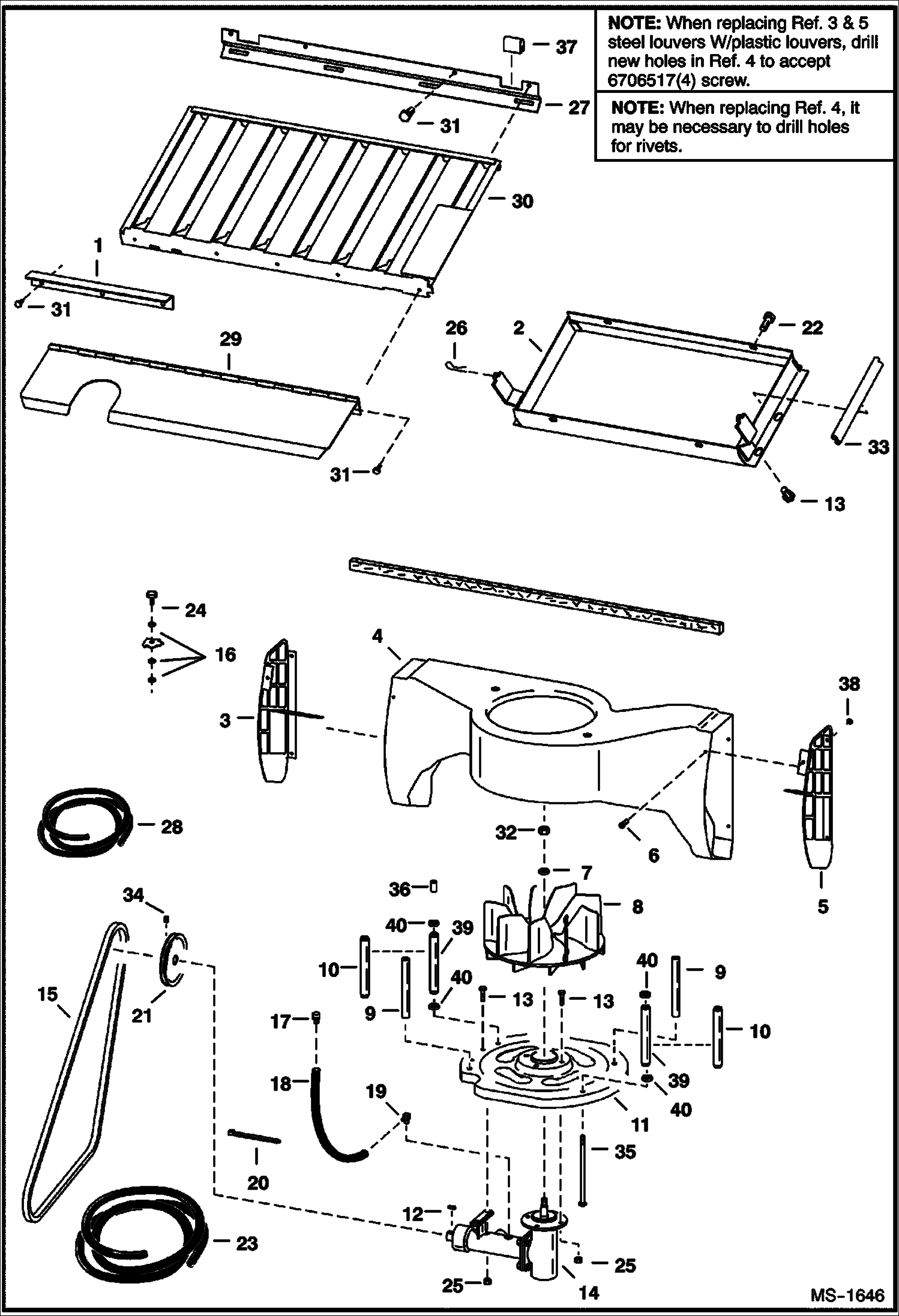

Запчасти Bobcat 800s COOLING SYSTEM POWER UNIT

1

6709448

BRACE

2

6711630

HOUSING plenum - Was 6708592 - A

3

6708470

LOUVER LH - plastic

3

LOUVER NLA - LH - steel - Order 6716574 & 6706517 (4) screw - SEE NOTE - Was 6713307 - A

3

6716574

LOUVER, PLASTIC LH LH - plastic

4

6708292

HOUSING

4

6717636

HOUSING

5

6700418

LOUVER RH - plastic

5

LOUVER NLA - R.H. - steel - Order 6716572 & 6706517 (4) screw - SEE NOTE - Was 6713306 - A

5

6716572

LOUVER, PLASTIC RH RH - plastic

6

6706517

SCREW

6

6661209

RIVET Use W/ steel louvers - Was 6630207 - B

7

6701097

WASHER Was 6803867 - A

8

6715142

FAN Was 6700334 - A

9

6577382

SPACER

10

SPACER NLA - Order Ref. 39 & (2) of Ref. 40 - Was 6704907 - A

11

6577227

INLET 8 hole

11

7107175

INLET 4-slot - Was 6717478 - A

12

7J2208

KEY

13

17C616

BOLT 5

14

6734105

HOUSING ASSY See Illustration COOLING FAN DRIVE ASSY./ TS1002 - Was 6707519 - A

15

6707648

BELT cooling fan drive - 43.75'' (1111,25mm)

15

6713385

BELT cooling fan drive - 43'' (1092,2mm)

16

61D5

NUT

17

6680970

BREATHER Was 6670627 - A

18

HOSE NLA - 16.5''-19.5'' (419,1mm - 495mm) long - Order Ref. 23

19

6657376

ELBOW

20

6610510

TIE

21

6579541

PULLEY 5.75'' (146,05mm) OD

21

6712970

PULLEY 4.75'' (120,65mm) OD

22

35C612

BOLT

23

6577822

HOSE bulk - sold per foot

24

6655399

BUMPER

25

61D6

NUT 5

26

1318565

COTTER PIN

27

6711518

BRACKET

27

6713816

BRACKET

28

6513152

SEAL bulk - sold per foot

29

6707650

SHIELD

29

6717738

SHIELD Was 6713815 - A

30

6708578

GRILL

30

6711520

GRILL

31

84G3112

BOLT 5

32

96D8

NUT Was 86D000008B - B

33

SEAL NLA - 14.5'' (368mm) long - Order Ref. 28

34

6715143

SET SCREW Was 6712006 - B

35

17C6116

BOLT

36

7J2204

KEY

37

6579613

STOP cab tilt

38

25E10

WASHER Use W/ steel louvers

39

6732318

SPACER

40

6732457

WASHER step
