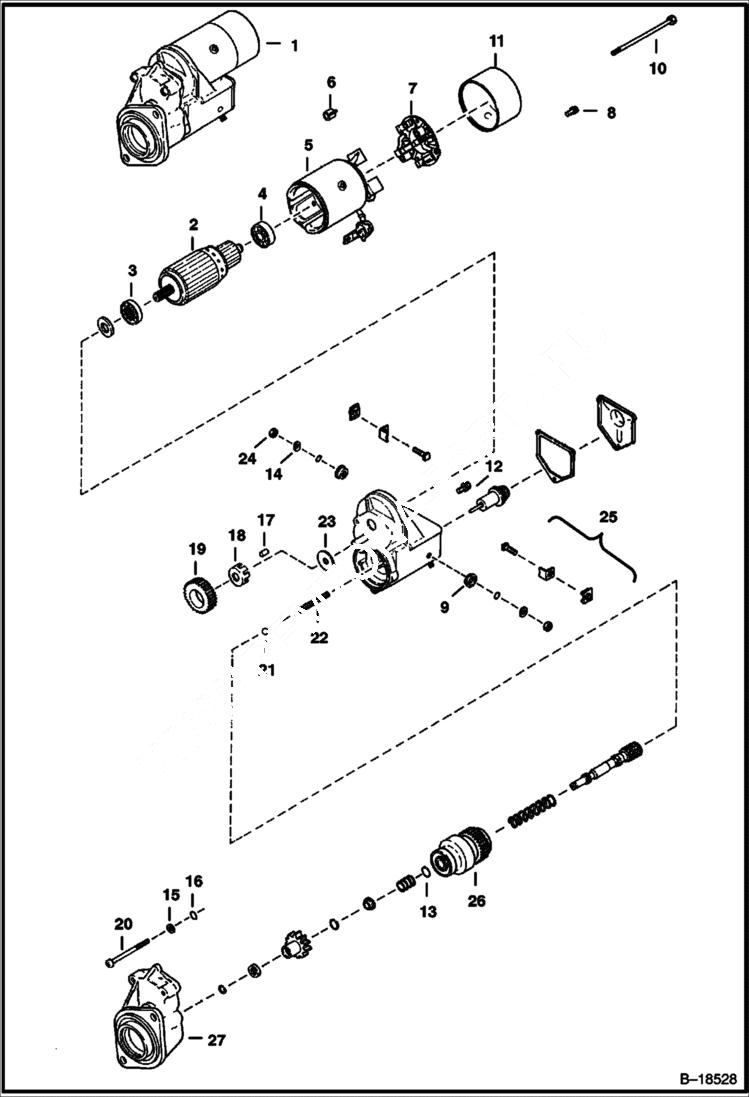

Запчасти Bobcat 800s STARTER (S/N 5141 11706, 5142 11224 & Below) ELECTRICAL SYSTEM

1

6665324

STARTER

1

6665324REM

STARTER

2

6666621

ARMATURE W/Ref. 3 & 4

3

6632417

BEARING

4

6632418

BEARING

5

6632419

HOUSING ASSY.

6

6666617

COVER

7

6632420

BRUSH HOLDER W/Ref. 6

8

6666634

BOLT

9

6666637

NUT

10

6666636

BOLT

11

6666625

COVER

12

6666635

BOLT

13

6666632

O-RING

14

6666630

WASHER

15

WASHER NSS - Was 6666629 - A

16

6666631

WASHER

17

6632430

ROLLER

18

6632429

RETAINER

19

6632428

PINION

20

6666633

BOLT

21

6632435

BALL

22

6632436

SPRING

23

6662437

WASHER

24

6666628

NUT

25

6666627

BRUSHES

26

6666622

DRIVE

27

6671972

HOUSING Was 6666626 - A
