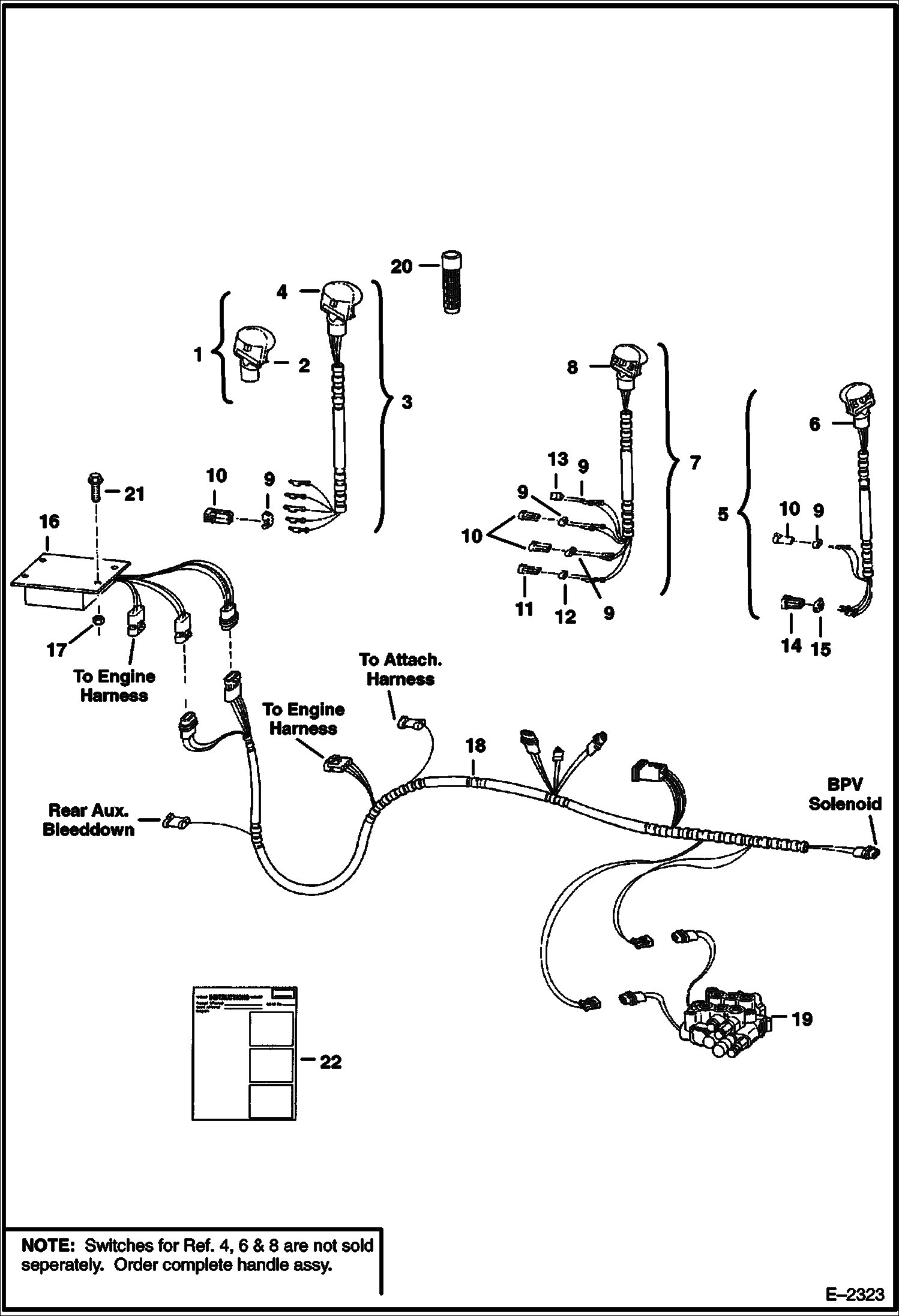

Запчасти Bobcat 800s ELECTRICAL CONTROLS CIRCUITRY (For Proportional Auxiliaries) (S/N 5141 11443-39999, 5142 11105-39999) ELECTRICAL SYSTEM

1

6706565

KIT LH blank handle - Ref. 2 & 22

2

6680415

HANDLE LH blank - Was 6705920 - A

3

6706734

KIT two switch handle - Ref. 4, 9, 10 & 22 - RH & LH

4

6680456

HANDLE, 2-SWITCH PWM two switch - Also Order Ref. 9 & 10 - Was 6675465 - A

5

6706735

KIT RH multi switch handle - Ref. 6, 9, 10, 14, 15 & 22

6

6680457

HNDL/4 SWITCH PWM RH multi switch - Also Order Ref. 9, 10, 14 & 15 - Was 6675466 - A

6

6640690

PIN

6

6641176

SEAL

6

6662257

PIN

7

6706568

KIT LH multi switch handle - Ref. 8, 9, 10, 11, 13 & 22

8

6680412

HANDLE ASSY LH multi switch - Also Order Ref. 9 - 13 - Was 6707976 - A

8

6640690

PIN

8

6640691

PIN

8

6641176

SEAL

8

6662257

PIN

8

6680447

DECAL Was 6677370 - A

9

6662252

LOCK 6-pin

10

6662246

CONNECTOR 6-pin

11

6664599

CONNECTOR 3-pin triangle

12

6664800

LOCK 3-pin triangle

13

6641178

CONNECTOR 2-pin

14

6641173

CONNECTOR 6-pin

15

6641181

LOCK 6-pin

16

6673757

CONTROLLER auxiliary control - universal - Was 6668773 - A

17

61D4

NUT 5

18

6708284

HARNESS

18

6712669

HARNESS Was 6712522 - A

19

VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1641 See Illustration HYDRAULIC CONTROL VALVE/ TS1380

20

6702621

GRIP

21

10C412

BOLT

22

6722759

INSTRUCTIONS
