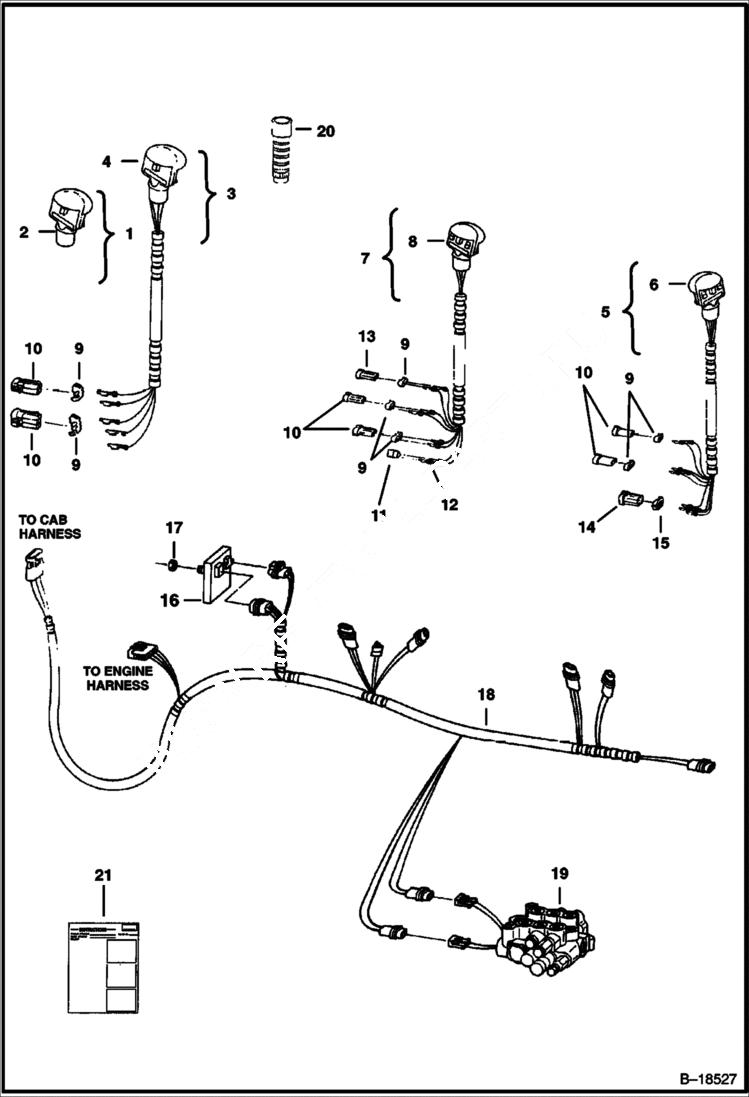

Запчасти Bobcat 800s ELECTRICAL CONTROLS (S/N 5141 11442, 5142 11104 & Below) ELECTRICAL SYSTEM

1

6706565

KIT LH blank handle - Ref. 2 & 21

2

6680415

HANDLE LH blank - Was 6705920 - A

3

6706566

KIT two-switch handle - Ref. 4, 9, 10 & 21

4

6680414

HANDLE ASSY. two-switch handle - Also Order Ref. 9 & 10 - Was 6705921 - A

4

6640690

PIN

4

6641176

SEAL

5

6706567

KIT RH multi-switch handle -Ref. 6, 9, 10, 14, 15 & 21

6

6680413

HANDLE ASSY RH multi-switch handle - Also Order Ref. 9, 10, 14 & 15 - Was 6706340 - A

6

6640690

PIN

6

6641176

SEAL

7

6706568

KIT LH multi-switch handle - Ref. 8 - 13 & 21

8

6680412

HANDLE ASSY LH multi-switch handle - Also Order Ref. 9-13 - Was 6707976 - A

8

6640690

PIN

8

6640691

PIN

8

6641176

SEAL

8

6662257

PIN

8

6680447

DECAL Was 6677370 - A

9

6641180

LOCK Use W/ 2-pin connector

9

6640700

LOCK 3-pin

10

6641179

CONNECTOR 2-pin

10

6640699

CONNECTOR 3-pin

11

6664599

CONNECTOR 3-pin triangle

12

6664800

LOCK 3-pin triangle

13

6641178

CONNECTOR 2-pin

14

6641173

CONNECTOR 6-pin

15

6641181

LOCK 6-pin

16

6669529

MODULE auxiliary control - Was 6706215 - A

17

85D4

NUT 5

18

6708055

HARNESS

19

VALVE See Illustration HYDRAULIC CONTROL VALVE/ TS1228

20

6702621

GRIP

21

6722759

INSTRUCTIONS For Ref. 1, 3, 5 & 7
