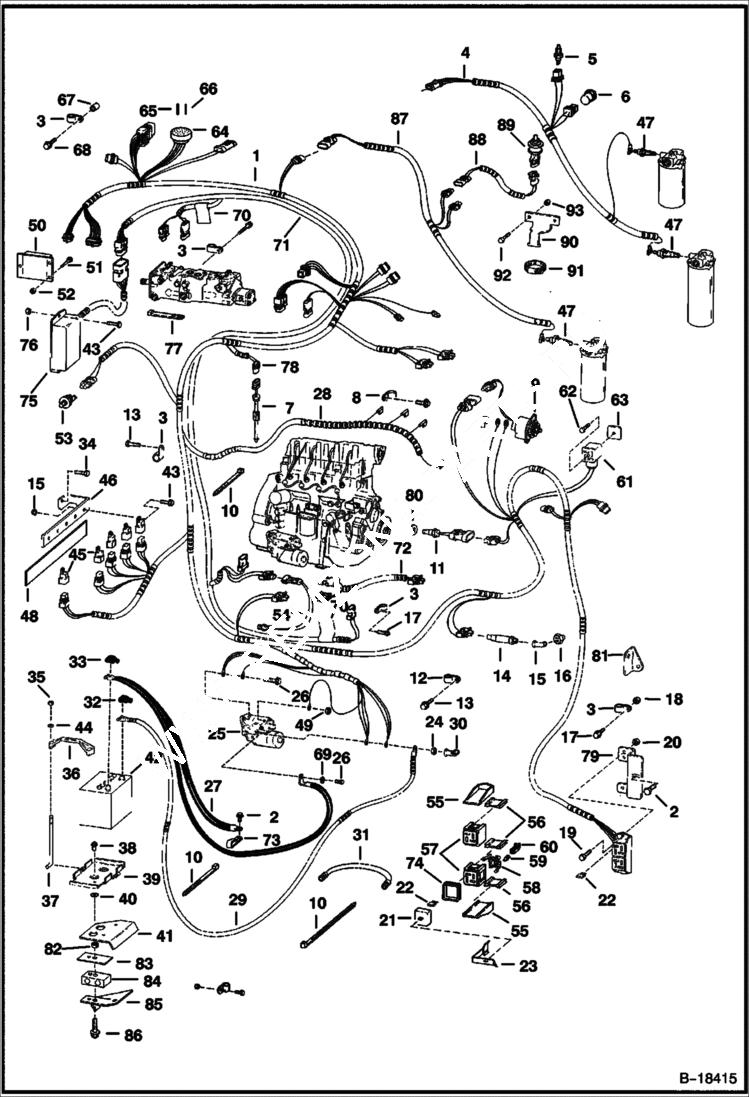

Запчасти Bobcat 800s ENGINE ELECTRICAL CIRCUITRY (W/ B.O.S.S. Option) ELECTRICAL SYSTEM

1

6707891

HARNESS See BTI352 - engine - W/Ref. 62 & 63

1

6711603

HARNESS See BTI352 - engine - W/Ref. 62 & 63 - for new starter

1

6713313

HARNESS See BTI352

1

6718071

HARNESS, ENG BOSS See BTI352 - for traction lock BICS controller - Was 6715948 - A

2

84G3712

BOLT 5

3

30H49

CLAMP

4

6707059

HARNESS

5

6654200

SENSOR hydro. temp

6

SENDER NLA - hyd. charge pressure - Order 6661518 sensor & 6704931 harness - Was 6665033 - A

7

SENDER NLA - fuel - W/ O-ring - Order 6680438 sender & 6717579 gasket - Was 6669642 - A

7

79K14

O RING 10

7

7179839

SENSOR FUEL W/gasket - Was 6680438 - A

7

6717579

GASKET

8

30H22

CLIP

9

ALTERNATOR See Illustration ALTERNATOR/ C3312 - Was 6661611 - B

10

6610510

TIE

11

6717119

SENDER engine oil temp. - W/ red wire - Was 6666877 - A

12

30H57

CLAMP

13

1CM816

BOLT

14

6660204

SENSOR engine oil pressure

15

25F1

ELBOW

16

6708580

ADAPTER

17

17C512

BOLT 5 Was 17C003112B - B

18

85D5

NUT 5

19

45D12

NUT

20

50D12

NUT

21

6665358

COVER , FUSE fuses

22

6707620

FUSE, 10A MINI 5

22

6707621

FUSE, 15A MINI 5

22

6707623

FUSE, 25A MINI 5

22

6674099

BREAKER, 25A

23

6708437

CLIP spring

24

4DM5

NUT

25

STARTER See Illustration STARTER/ B18528

26

35C620

BOLT 5

27

CABLE NLA - ground - single terminal - Order 6713670 cable - Was 6579806 - A

27

6713670

CABLE ground - double terminal - Was 6713118 - A

28

6714434

HARNESS See BTI310 - for 4 glow plug changeover

29

CABLE NLA - positive - 34'' (864mm) long - W/ 30'' (762mm) of Ref. 31 - Order 6576188 cable - Was 6579809 - A

29

6576188

CABLE positive - 40'' (1016mm) long - W/ 35.5'' (902mm) of Ref. 31

30

6560172

COVER

31

6563505

CONDUIT bulk - Sold Per Foot

32

2356058

BOOT

33

6599652

BOOT

34

5CM1016

BOLT

35

59D5

NUT 5

36

6569203

CLAMP

37

6576280

BOLT

38

84G3716

SCREW 5

39

6712536

PAN Was 6577809 - A

40

6555455

WASHER

41

6579989

BRACKET

42

BATTERY NLA - 700 CCA - Order 6665427 battery - Was 6665032 - A

42

6630153

BATTERY CAP for NLA/6665032 battery only

42

6665427

BATTERY, DRY 950 AMP

43

17C412

BOLT 5

44

55D5

NUT

45

6670312

SWITCH, MAGNETIC relay - Was 6665005 - A

46

6707649

MOUNT

47

6660260

SWITCH See Illustration HYDROSTATIC OIL FILTER/ C2818A - filter

48

6707787

DECAL relay

49

4DM10

NUT

50

6669686

BOSS initialized - Was 6669167 - A

50

6669685

BOSS not initialized - Was 6669166 - A

50

6669687

BOSS back-up - Was 6667363 - A

51

10C412

BOLT

52

61D4

NUT 5

53

6665371

SWITCH condition indicator

54

6684037

SENSOR RPM - Was 6679853 - B

55

6665369

MOUNT fuse

56

6665411

WEDGE red

57

6665356

BLOCK fuse - W/Ref. 74

58

6665357

LOCK yellow

59

6650107

SEAL

60

PIN NLA - female - Order 6668719 pin or 6668720 pin per wire gauge size - See Below - Was 6648311 - D

60

6668719

PIN female - For 16 ga. wire

60

6668720

PIN female - Use W/ 14 ga wire

61

6665659

CONNECTOR, SHUTDOWN shutdown

62

6668761

BOLT

63

6668760

SEAL

64

6664585

CONNECTOR Also Order Ref. 65 & 66 as needed - Was 6665682 - A

65

6664828

SOCKET

66

6664041

SOCKET

67

6712975

SPACER

68

84G3732

BOLT

69

6E6

WASHER

70

6713462

DECAL traction

71

6713455

HARNESS W/Ref. 70

72

6713596

HARNESS accessory - hourmeter

73

31H46

CLAMP

74

6671528

SEAL green square

75

6669735

CONTROLLER

76

61D4

NUT 5

77

6665527

TIE never modify

78

6646383

CONNECTOR fuel sender

78

6632946

TERMINAL female

79

6714764

MOUNT fuse block, Use W/ one piece rear door

80

6666405

WASHER seal

81

6714979

BRACKET harness

82

95D5

NUT

83

6715132

RETAINER

84

6715197

CLAMP

85

6715131

BRACKET battery clamp

86

17C540

BOLT

87

6717203

HARNESS single filter

88

6717131

HARNESS

89

6667292

SWITCH hydraulic charge pressure

90

6704319

MOUNT

91

42H16

CLAMP, HOSE 5

92

17C416

BOLT

93

85D4

NUT 5
