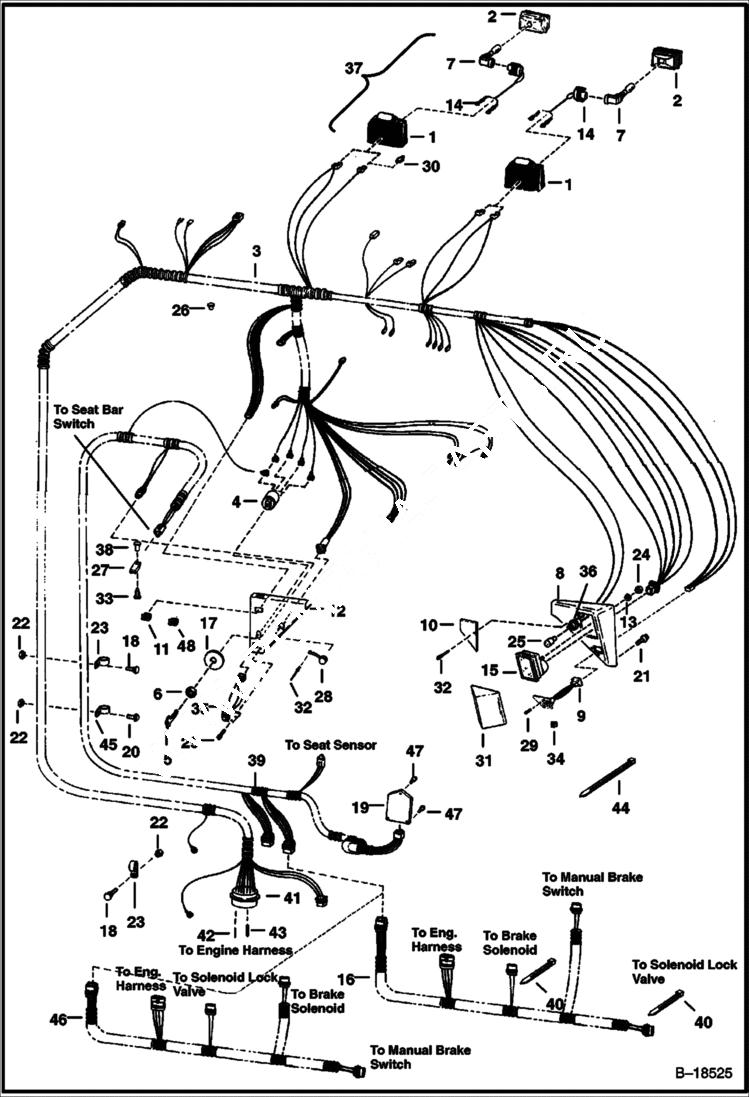

Запчасти Bobcat 800s CAB ELECTRICAL CIRCUITRY (W/B.O.S.S. Option) ELECTRICAL SYSTEM

1

6578824

HOUSING rubber

2

6649478

BULB HOUSING

3

6707671

HARNESS

3

6711774

HARNESS accommodates side console

3

6710483

HARNESS accommodates side console - export

4

6665606

SWITCH ignition - W/Ref. 9 & 10

5

KEY NLA - for 6665606 switch - includes two keys W/ring - Order 6693241 - Was 6709527 - A

5

6693241

KEY 10 ignition - single key W/O ring

6

6674202

NUT Was 6598721 - B,D

7

6667934

BULB Was 6650111 - A

8

6702660

PANEL RH

9

6667903

SWITCH, AUX aux. controls module - W/Ref. 11 - 4-pin connector - Was 6700603 - A

9

6667904

SWITCH aux. controls module - W/Ref. 11 - 5-pin connector

10

6702678

PLATE service codes

11

6665410

SWITCH light

12

6708427

PANEL LH

12

PANEL See Illustration EUROPEAN ACCESSORIES/ TS1532 NLA - LH - Europe - Was 6708428 - A

13

17E8

WASHER

14

6578528

HARNESS light

15

DISPLAY NLA - LCD monitor - mounted w/nuts - order 7131641 kit - Was 6665923

15

7131641

KIT, DISPLAY LCD LCD monitor - screw mounted - includes screws, display & instructions

15

LCD MONITOR NLA - LCD monitor mounted w/screws

15

6691063

SCREW

15

6904890

INSTRUCTIONS

16

6706876

HARNESS See Ref. 46

16

6710313

HARNESS See Ref. 46

17

6709027

PLATE brake start

18

10C412

BOLT

19

CONTROLLER NLA - Order kit 6717700 (foot pedals)or 6717702 (mech. hand controls) - Was 6668767 - A

19

CONTROLLER NLA - W/ traction lock - Order kit 6717701 (foot pedals) or 6717703 (mechanical hand controls) - Was 6670653 - A

19

CONTROLLER NLA - traction/seat sensor override - Order 6717701 (foot pedals) or 6717703 (mechanical hand controls) - Was 6673003 - A

19

6680446

CONTROLLER Was 6674223 - A

19

6680444

CONTROLER AHC - Was 6674225 - A

20

35C410

BOLT 5

21

6702642

SCREW

22

61D4

NUT 5

23

83D4

NUT 10

24

83D4

NUT 10

25

6578357

BULB

26

6707674

PLUG round - plugs 1.28'' (32,5mm) diameter hole in cab

27

6665000

CLIP

28

6651703

CAP

29

6669225

BOLT Was 58G000408B - A

30

6519548

CONNECTOR

31

6700487

SHIELD snap in place

32

6704892

RIVET

33

6665321

RIVET plastic male

34

6660594

BUTTON on/off

35

6667905

SWITCH traction override - Was 6706995 - A

35

SWITCH NLA - traction/seat sensor override - Order 6674220 - Was 6673005 - A

35

6674220

SWITCH, OVERRIDE TRACTION push-to-operate

36

6649331

SOCKET light - W/ 6'' leads

37

6577801

LIGHT W/Ref. 1, 2, 7 & 14

38

6665322

RIVET plastic female

39

6706828

HARNESS Was NLA - D

39

6710312

HARNESS

39

6712134

HARNESS, CONTROLLER

39

6712135

HARNESS

39

6713932

HARNESS

39

6713933

HARNESS

40

6665527

TIE never modify

41

6664584

CONNECTOR Also Order Ref. 42 & 43 - Was 6665683 - A

42

6664827

PIN

43

6664040

PIN

44

6610510

TIE

45

30H29

CLAMP

46

6712523

HARNESS for relocation of tilt lock valve solenoid to control valve

46

6671037

TIE yellow

47

91G412

SCREW cross recess pan head - Was 17C000410B - B

47

25G412

CAPSCRW10 hex socket button head

48

6668814

SWITCH BPV
