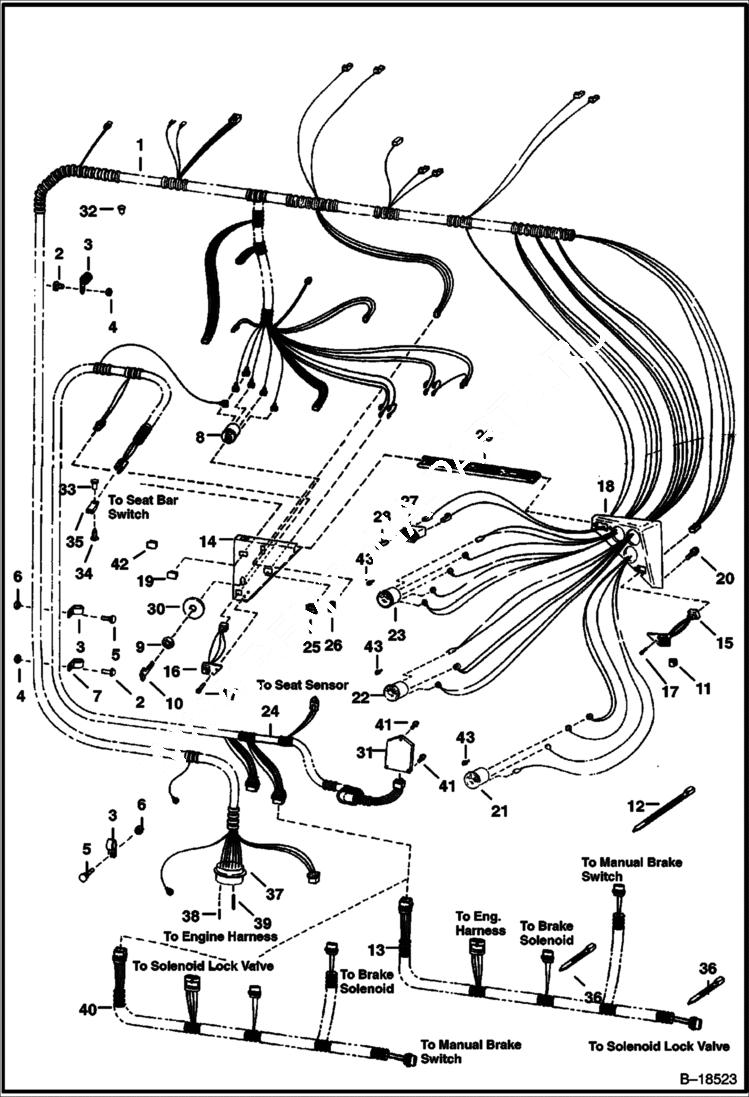

Запчасти Bobcat 800s CAB ELECTRICAL CIRCUITRY (W/O B.O.S.S. Option) ELECTRICAL SYSTEM

1

6707665

HARNESS

1

6711767

HARNESS, CAB BASE for side console

2

35C410

BOLT 5

3

30H56

CLIP

4

83D4

NUT 10

5

10C412

BOLT

6

61D4

NUT 5

7

30H29

CLAMP

8

6665606

SWITCH ignition - W/Ref. 9 & 10

9

6674202

NUT Was 6598721 - B,D

10

KEY NLA - for 6665606 switch - includes two keys W/ring - Order 6693241 - Was 6709527 - A

10

6693241

KEY 10 ignition - single key W/O ring

11

6660594

BUTTON on/off

12

6610510

TIE

13

6706876

HARNESS See Ref. 40

13

6710313

HARNESS See Ref. 40

14

6708425

PANEL LH

14

6708426

PANEL See Illustration EUROPEAN ACCESSORIES/ TS1532 LH - export

14

6712152

PANEL LH for side console

15

6667903

SWITCH, AUX aux. controls module - W/Ref. 11 - 4-pin connector

15

6667904

SWITCH aux. controls module - W/Ref. 11 - 5-pin connector

16

6667905

SWITCH traction override - Was 6706995 - A

16

SWITCH NLA - traction/seat sensor override - Order 6674220 - Was 6673005 - A

16

6674220

SWITCH, OVERRIDE TRACTION push-to-operate

17

6669225

BOLT Was 58G000408B - A

18

6706896

PANEL RH

19

6665314

PLUG Was 6719038 - A

20

6702642

SCREW

21

6669662

GAUGE engine temp. - Was 6666594 - A

22

VOLTMETER NLA - W/clamp - Order 6669664 voltmeter & 6679027 clamp - Was 6658819 - A

22

6669664

VOLTMETER W/O clamp

23

FUEL GUAGE NLA - W/clamp - Order 6669665 gauge & 6679027 clamp - Was 6658820 - A

23

6669665

FUEL GUAGE W/O clamp

24

6706828

HARNESS Was NLA - D

24

6710312

HARNESS

24

6712134

HARNESS, CONTROLLER

24

6712135

HARNESS

24

6713932

HARNESS

24

6713933

HARNESS

25

6665318

SWITCH glow plug

25

6668927

SWITCH glow plug

26

6636018

LIGHT indicator

27

6664886

HOURMETER

28

65G608

SCREW

29

6578780

CROSSMEMBER

30

6709027

PLATE brake start

31

CONTROLLER NLA - Order kit 6717700 (foot pedals) or 6717702 (mechanical hand controls) - Was 6668767 - A

31

CONTROLLER NLA - W/ traction lock - order kit 6717701 (foot pedals) or 6717703 (mechanical hand controls) - Was 6670653 - A

31

CONTROLLER NLA - traction/seat sensor override - Order 6717700 (foot pedals) - Order 6717702 (mechanical hand controls) - Was 6673003 - A

31

6680446

CONTROLLER Was 6674223 - A

31

6680444

CONTROLER AHC - Was 6674225 - A

32

6707674

PLUG round - plugs 1.28'' (32,5mm) diameter hole in cab

33

6665321

RIVET plastic male

34

6665322

RIVET plastic female

35

6665000

CLIP

36

6665527

TIE never modify

37

6664584

CONNECTOR Also Order Ref. 38 & 39 - Was 6665683 - A

38

6664827

PIN

39

6664040

PIN

40

6712523

HARNESS for relocation of tilt lock valve solenoid to control valve

40

6671037

TIE yellow

41

91G412

SCREW cross recess pan head - Was 17C000410B - B

41

25G412

CAPSCRW10 hex socket button head

42

6668814

SWITCH BPV

43

6599696

SOCKET & BULB assy.

43

895771

#161 BULB
