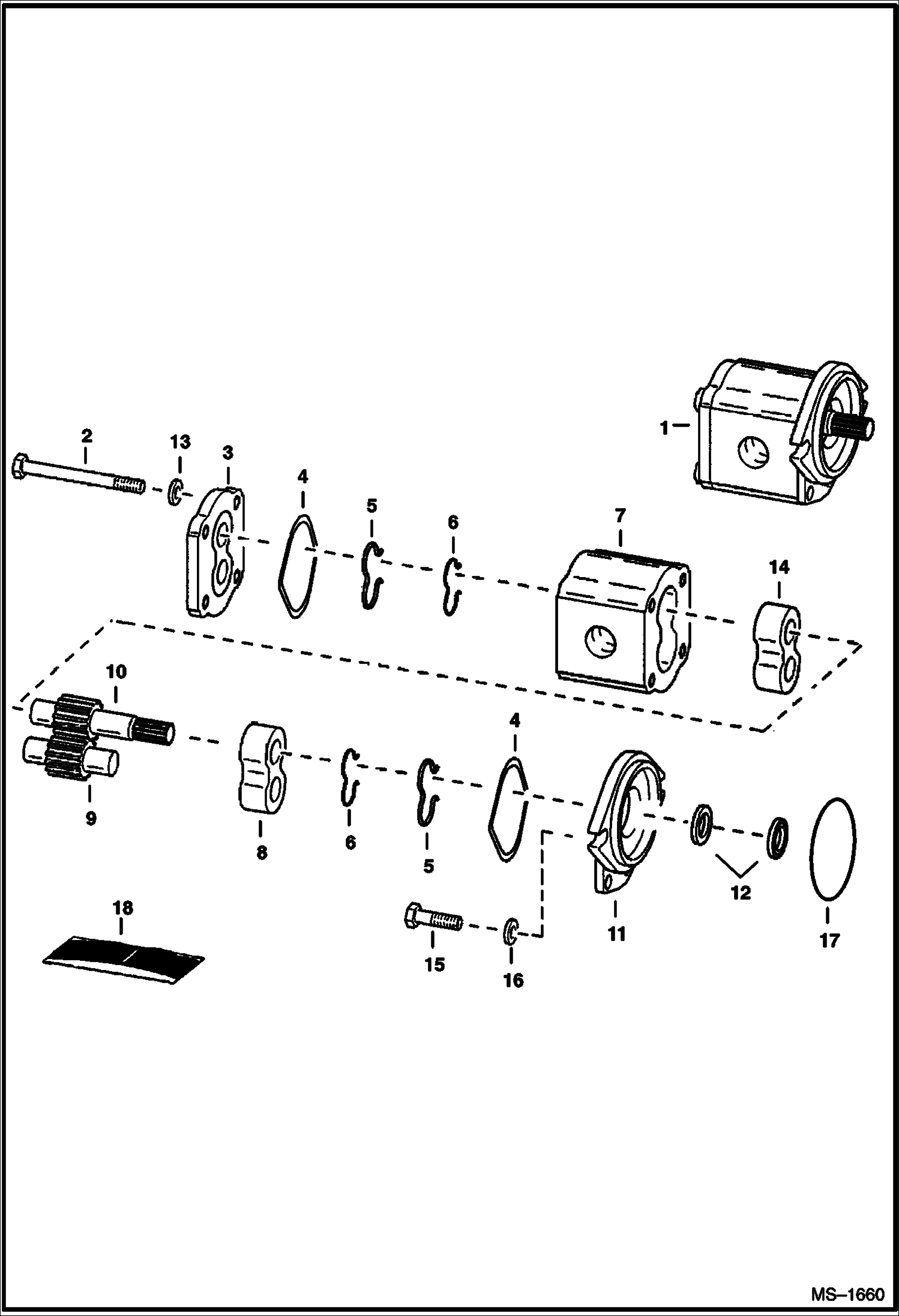

Запчасти Bobcat 800s GEAR PUMP HYDROSTATIC SYSTEM

1

PUMP NLA - B5501-34022 - W/Ref. 2-14 - for M91-46130 & M91-46598 - Order 6673916 pump, 6717662 fitting, 19J000012B (2) clamp, 58K000214B O-ring & 17C000620B (4) bolt - Was 6665551 - A

1

6673916

PUMP B5501-37211 - split flange - W/Ref. 2-14 - for M91-46130 & M91-46598

1

PUMP NLA - B5501-36980 - W/Ref. 2-14 - for Model 4445056 - Order 6673911 pump, 6717662 fitting, 19J000012B (2) clamp, 58K000214B O-ring & 17C000620B (4) bolt - Was 6672829 - A

1

6673911

PUMP B5501-37255 - split flange - W/Ref. 2-14 - for Model 4445056 & 4445062

2

BOLT NSS

3

COVER NLA - Was 6658123 - A

4

O-RING NSS - seal

5

SEAL NSS

6

RING NSS

7

BODY NSS

8

BEARING NSS

9

GEAR NSS - idler

10

GEAR NSS - drive

11

COVER NLA - Was 6658122 - A

12

SEAL NSS - Use W/ M46 pumps & some M44's - See Service Manual

13

WASHER NSS

14

BEARING NSS

15

6645088

BOLT Was 17C000616B - B

16

6518483

WASHER Was 28E000006B - B

17

6645080

O-RING See Illustration HYDROSTATIC PUMP/ C3379 See Illustration HYDROSTATIC PUMP/ B17765 - used W/ M91-46130, 4445056 & 4445062 pump

17

6660339

GASKET See Illustration HYDROSTATIC PUMP/ C3378 See Illustration HYDROSTATIC PUMP/ C3379 - used W/ M91-46598 pump

18

6666834

SEAL KIT Ref. 4-6 & 12 - for 6665551 & 6673916

18

6674371

SEAL KIT Ref. 4-6 - for 6673911

18

6658126

SEAL KIT Ref. 4-6 & 12 - for 6672829
