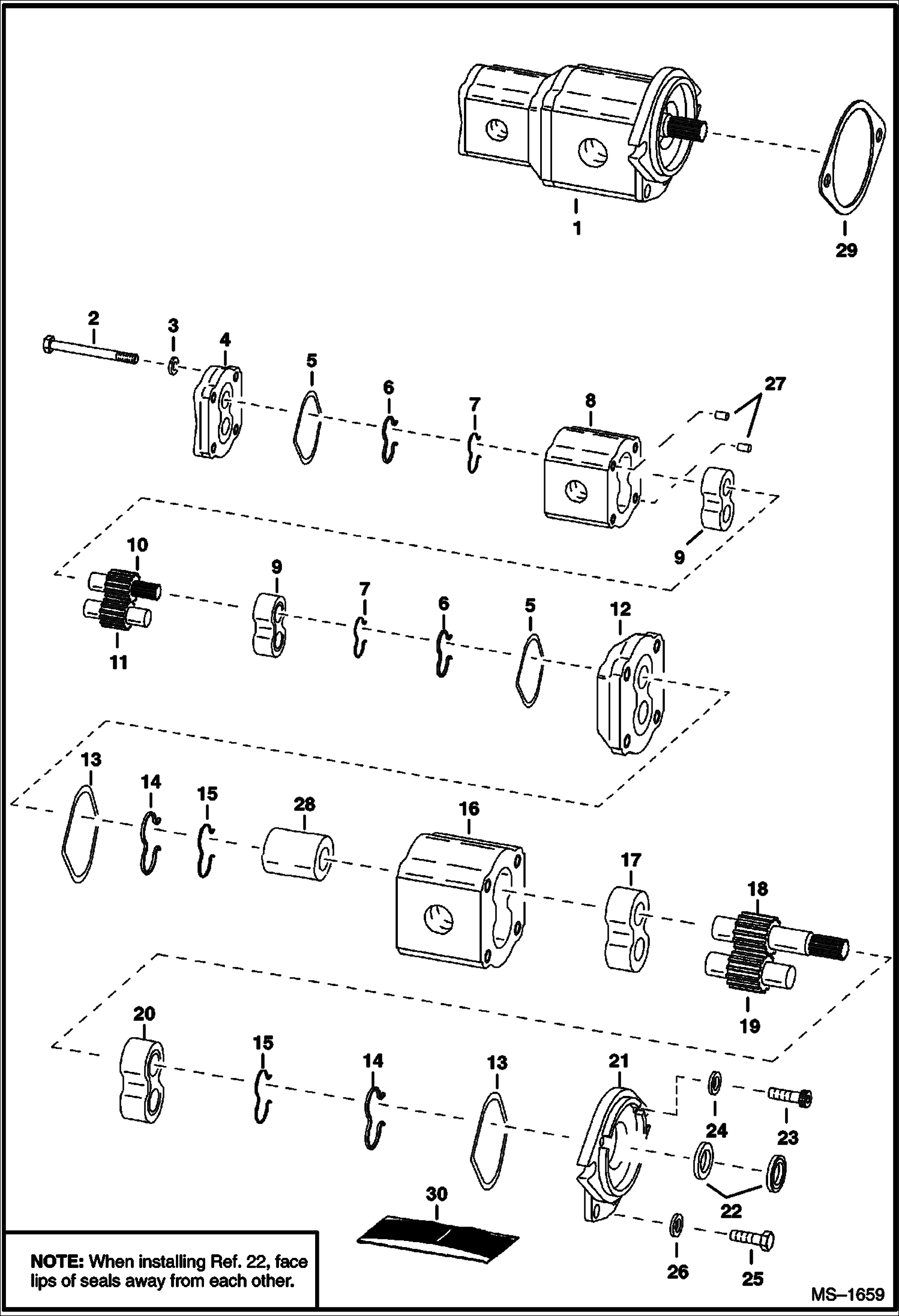

Запчасти Bobcat 800s DOUBLE GEAR PUMP HYDROSTATIC SYSTEM

1

6671521

PUMP double - Ref. 2-28 - for 4445254 - B5501-36630

2

BOLT NSS

3

WASHER NSS

4

COVER NSS

5

O-RING NSS - seal

6

SEAL NSS

7

RING NSS

8

BODY NSS

9

BEARING NSS

10

GEAR NSS - drive

11

GEAR NSS

12

COVER NSS

13

O-RING NSS - seal

14

SEAL NSS

15

RING NSS

16

BODY NSS

17

BEARING NSS

18

GEAR NSS - drive

19

GEAR NSS - idler

20

BEARING NSS

21

COVER NSS

22

6672533

SEAL

23

BOLT NSS

24

SEAL NSS

25

BOLT NSS

26

WASHER NSS

27

DOWEL NSS

28

COUPLER NSS

29

6660339

GASKET

30

6666835

SEAL KIT Ref. 5-7, 13-15, 22 & 24
