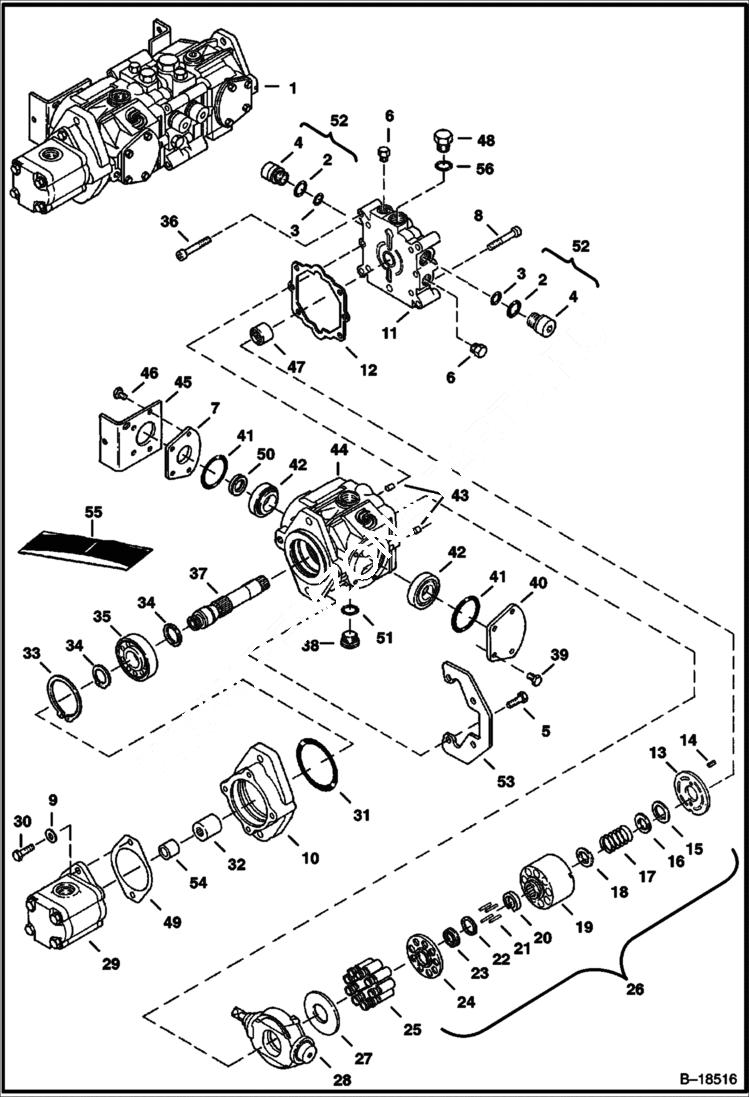

Запчасти Bobcat 800s HYDROSTATIC PUMP (M44 - Non/Servo Assist Steering) (S/N 5141 15001-22813, 5142 13000-22027) HYDROSTATIC SYSTEM

1

6670689

PUMP, HYD TANDEM complete W/ gear pump - model 4445254 - must use brackets 6576196 & 6706096 from original pump

1

6670689REM

PUMP, HYD TANDEM, W/O GEAR PUMP

2

6657028

O-RING

3

79K8

O RING 10

4

PLUG NLA - Order Ref. 52

5

BOLT NLA - Order 17C-824 - Was 6671519 - A

6

6645086

PLUG

7

6657067

COVER

8

6650637

BOLT

9

6518483

WASHER

10

6671517

ADAPTER

11

6669405

CAP, END

12

6650634

GASKET

13

6671514

VALVE PLATE See BTI361

14

6650636

PIN

15

RETAINER NLA - Order Ref. 26

16

WASHER NLA - Order Ref. 26

17

SPRING NLA - Order Ref. 26

18

WASHER NLA - Order Ref. 26

19

BLOCK NLA - Order Ref. 26

20

6650630

RETAINER

21

6650629

PIN

22

6666338

WASHER

23

RETAINER NLA - Order Ref. 26

24

RETAINER NLA - Order Ref. 26

25

PISTON ASSY. NLA - Order Ref. 26

26

6671512

GROUP, ROTARY Ref. 15-25

27

6650627

PLATE

28

6685344

SWASHPLATE W/threaded shaft hole - Was 6671513 - A

29

GEAR PUMP See Illustration DOUBLE GEAR PUMP/ MS1659 - double

30

6645088

BOLT

31

6671520

O-RING

32

6671509

COUPLER

33

669863

RING, SNAP

34

658128

RING, SNAP

35

654299

BEARING

36

6652018

BOLT

37

6669407

SHAFT

38

47K8

PLUG W/Ref. 51

39

6650668

BOLT

40

6657068

COVER

41

6660814

O-RING

42

6669411

BEARING

43

6518460

PIN

44

6669402

HOUSING

45

6576196

MOUNT

46

1CM820

BOLT

47

6650635

BEARING

48

24K7

PLUG

49

6660339

GASKET Was 6660399 - B

50

6678226

SEAL, OIL Was 6673881 - A

51

79K12

O RING 10

52

6671510

RELIEF VALVE 4350 PSI (300) bar

53

6713377

BRACKET

54

6671511

SPACER

55

6671516

KIT, SEAL See Illustration HYDROSTATIC PUMP/ B18515 - Ref. 7, 9, 13, 34, 35, 42, 43, 45 & 46 - Also Include Ref. 2, 3, 12 & 41 on this illustration

56

79K14

O RING 10
