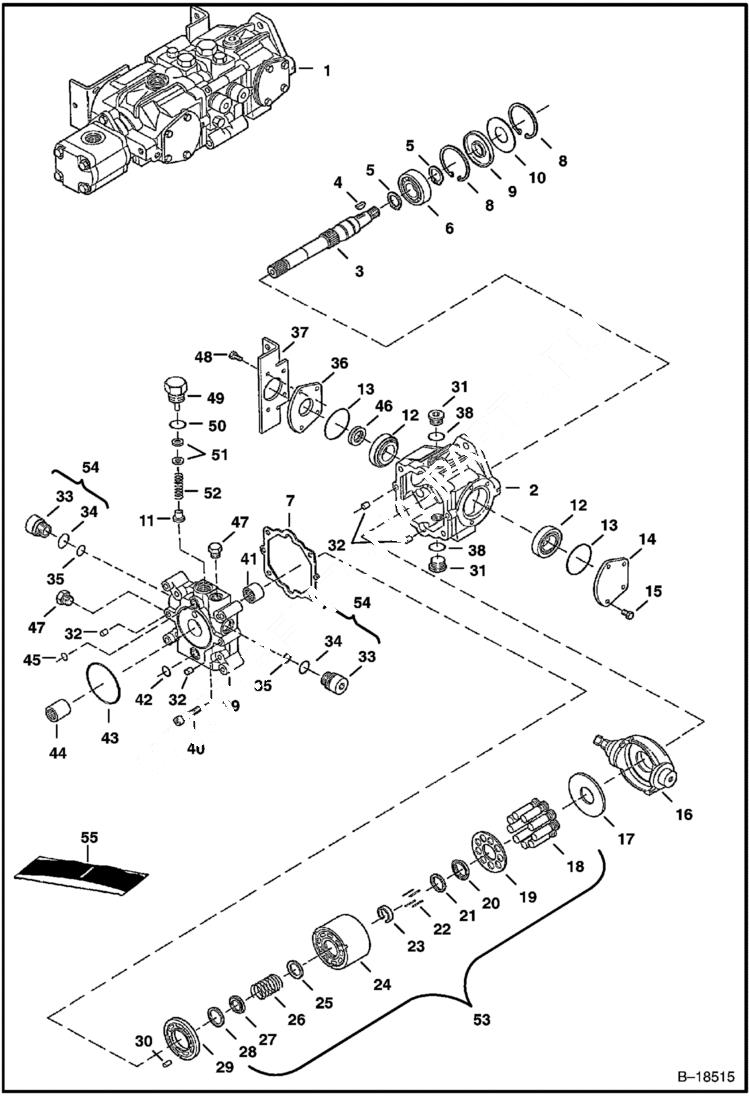

Запчасти Bobcat 800s HYDROSTATIC PUMP (M44 - Non/Servo Assist Steering) (S/N 5141 15001-22813, 5142 13000-22027) HYDROSTATIC SYSTEM

1

6670689

PUMP, HYD TANDEM Complete W/Gear Pump - model 4445254 - must use brackets 6576196 & 6706096 from original pump

1

6670689REM

PUMP, HYD TANDEM, W/O GEAR PUMP

2

6669402

HOUSING

3

SHAFT NLA - Order 6682260 shaft & 6682261 key - W/woodruff key - Was 6669408 - A

3

6682260

SHAFT W/square key

4

6J807

KEY, WOODRUFF

4

6682261

KEY square

5

658128

RING, SNAP

6

654299

BEARING

7

6650634

GASKET

8

669863

RING, SNAP

9

6687191

SEAL, OIL Was 6645090 - A

10

6669409

WASHER

11

6650652

POPPET charge relief

12

6669411

BEARING

13

6660814

O-RING

14

6657068

COVER

15

6650668

BOLT

16

6685344

SWASHPLATE W/threaded shaft hole - Was 6671513 - A

17

6650627

PLATE

18

PISTON ASSY. NLA - Order Ref. 53

19

RETAINER NLA - Order Ref. 53

20

RETAINER NLA - guide - Order Ref. 53

21

6666338

WASHER

22

6650629

PIN

23

6650630

RETAINER

24

BLOCK NLA - Order Ref. 53

25

WASHER NLA - Order Ref. 53

26

SPRING NLA - Order Ref. 53

27

WASHER NLA - Order Ref. 53

28

WASHER NLA - Order Ref. 53

29

6675340

VALVE PLATE Was 6671515 - A

30

6650636

PIN

31

47K8

PLUG W/Ref. 38

32

6518460

PIN

33

PLUG NLA - Order Ref. 54

34

6657028

O-RING

35

79K8

O RING 10

36

6657067

COVER

37

6706096

MOUNT

38

79K12

O RING 10

39

7023162

CAP, END Was 6669406 - A

40

6650637

BOLT

41

6650635

BEARING

42

6650647

O-RING

43

6645081

O-RING

44

6650675

COUPLER

45

6650646

O-RING

46

6678226

SEAL, OIL Was 6673881 - A

47

6645086

PLUG

48

6671518

BOLT

49

6650648

PLUG charge relief - W/Ref. 50

50

79K10

O RING 10

51

6669410

KIT, SHIM charge relief

52

6658301

SPRING

53

6671512

GROUP, ROTARY W/Ref. 18 - 28

54

6671510

RELIEF VALVE 4350 PSI (300 bar)

55

6671516

KIT, SEAL Ref. 7, 9, 13, 34, 35, 42, 43, 45 & 46 - Also includes Ref. 2, 3, 12 & 41 on Ill. B18516
