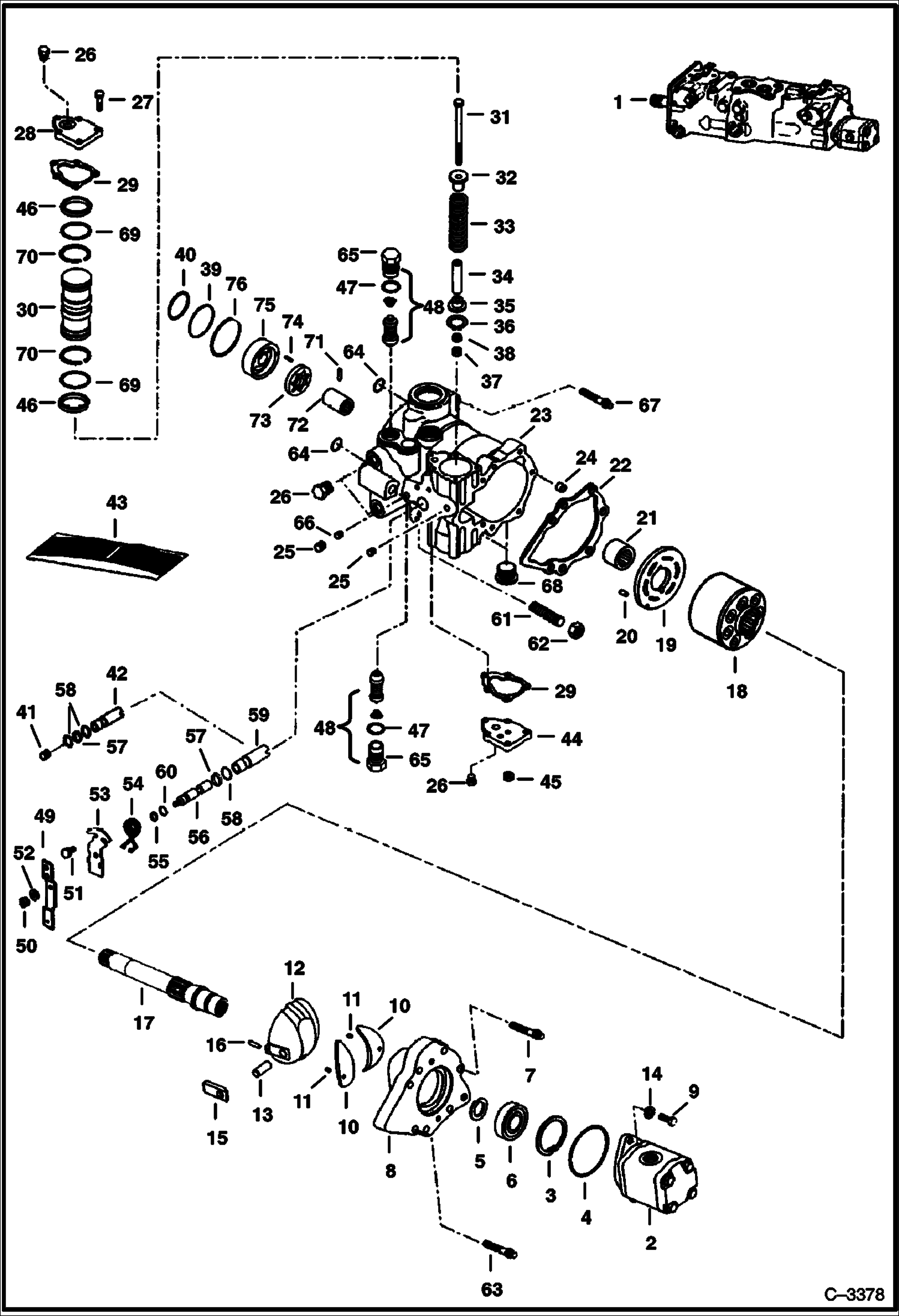

Запчасти Bobcat 800s HYDROSTATIC PUMP (Right Half) (M46 - Servo Assist Steering) (5141 14999, 5142 12999 & Below) HYDROSTATIC SYSTEM

1

PUMP NLA - W/gear pump - Model M91-46130 - Was 6665523 - A

1

PUMP, HYD TANDEM NLA - W/gear pump - Model M91-46598 - Was 6669045 - A

1

PUMP, HYD TANDEM, W/O GEAR PUMP NLA - Order 6671020REM - Was 6669045REM - A

1

6671020REM

PUMP, HYD COMPLETE, W/O GEAR PUMP Also Order Ref. 2

2

PUMP See Illustration GEAR PUMP/ MS1660 NLA - Order 6673916 - Was 6665551

2

6673916

PUMP See Illustration GEAR PUMP/ MS1660

3

669863

RING, SNAP

4

6645080

O-RING M91-46130

4

6660339

GASKET M91-46598

5

658128

RING, SNAP

6

654299

BEARING

7

6666219

BOLT

8

6657317

COVER, FLANGE

9

6645088

BOLT

10

6634613

BEARING journal

11

791355

ROLL PIN

12

6634382

SWASHPLATE

13

6632464

PIN

14

6518483

WASHER

15

6631428

SLEEVE

16

6673049

PIN Was 6670273 - A

17

6657316

SHAFT

18

6670274

BLOCK Was 6634311 - A

19

PLATE NLA - valve - Order 6666596 & 6665122 LH plate - Was 6634471 - A

19

6666596

PLATE valve

20

6634553

PIN

21

6631022

BEARING

22

6640612

GASKET

23

6664370

HOUSING

24

6634592

PIN spring

25

6518510

PLUG

26

6645086

PLUG

27

6660434

SCREW

28

6645072

COVER servo

29

6634425

GASKET

30

6634429

PISTON servo

31

6677160

SCREW Was 6631470 - A

32

6631444

GUIDE

33

6631430

SPRING

34

6631446

STOP

35

6631445

GUIDE

36

6631469

SNAP RING

37

6648256

NUT

38

6653728

NUT locking

39

6657323

O-RING

40

6657322

O-RING

41

6631471

WASHER

42

SLEEVE NLA - Was 6667897 - A

43

6661039

SEAL KIT

44

6645071

COVER

45

6631458

NUT

46

6634488

KIT W/Ref. 69

47

79K12

O RING 10

48

6662847

RELIEF VALVE W/Ref. 47 & 65 - 4350 PSI (300 BAR)

49

6657319

HANDLE

50

6653734

NUT

51

6653733

SCREW

52

6653735

WASHER

53

6631453

BRACKET

54

6631449

SPRING

55

6631467

BACK-UP RING

56

6666211

VALVE SPOOL

57

6631468

WASHER

58

25K20020

O RING 10

59

6657315

SLEEVE, WEAR -0.05

60

6645079

O-RING

61

6631642

STUD

62

61D8

NUT 5

63

6666220

SCREW

64

6653738

O-RING

65

6850006

PLUG W/ O-Ring - Was 6660418 - A

66

6657320

ORIFICE .157 - M91-46130

66

6669257

ORIFICE .054 - M91-46598

67

93G832

BOLT

68

24K9

PLUG

69

6653730

O-RING

70

6659256

BEARING

71

6657325

PIN

72

6631438

COUPLING

73

6661633

ROTOR ASSY.

74

6660435

PIN

75

6666597

COVER geroler

76

6655042

O-RING
