Запчасти Bobcat 800s ENGINE & ATTACHING PARTS (Engine Mounts) POWER UNIT

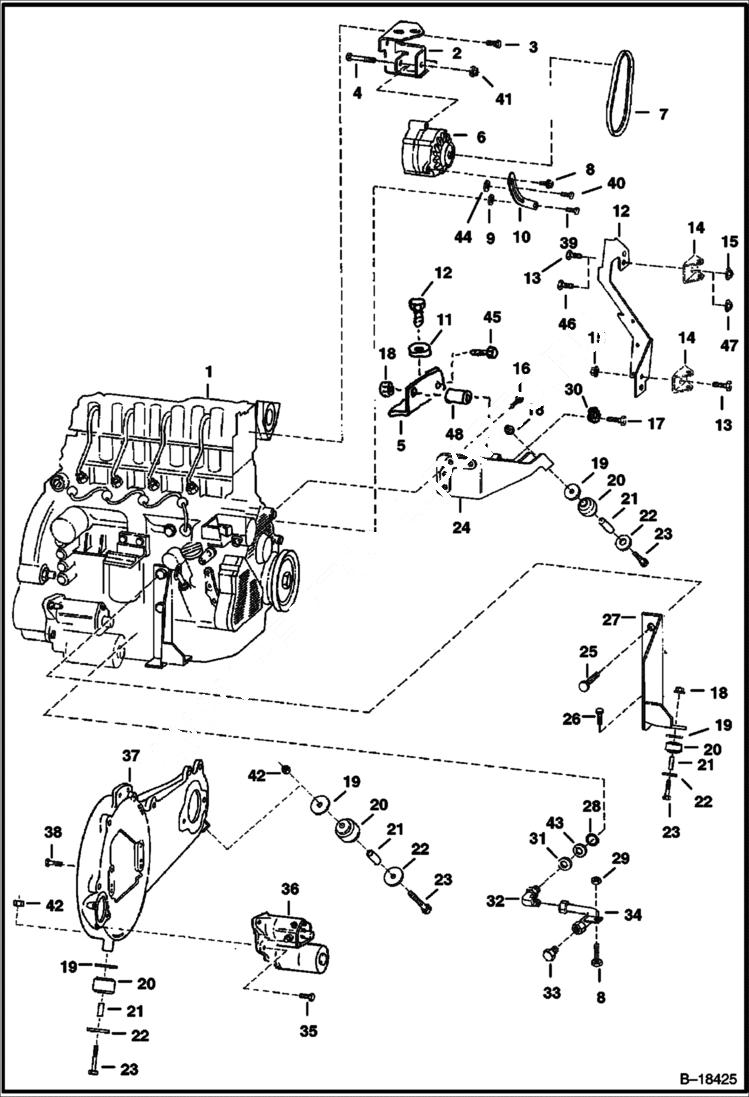

Схема запчастей Bobcat 800s - ENGINE & ATTACHING PARTS (Engine Mounts) POWER UNIT

Артикул

Название

Примечание

Количество

1

ENGINE See Illustration ENGINE & GASKET KITS/ B16399

2

6713893

MOUNT

3

55CM816

BOLT

4

17C652

BOLT

5

6716226

BRACKET

6

ALTERNATOR See Illustration ALTERNATOR/ C3312 - Was 6661611 - B

7

6534779

V-BELT Was 6713901 - A

8

35C512

BOLT

9

25E17

WASHER 5

10

6713843

BRACKET

11

6716408

SPACER

12

6710652

SHIELD

13

35C612

BOLT

14

6577394

BRACKET weld-on - for rear door

15

83D6

NUT 5

16

53CM1440

BOLT

17

17C864

BOLT hydrostatic pump mounting

18

83D8

NUT 5

19

6705106

WASHER

20

6668104

MOUNT, ENG

21

7110276

SPACER, TAPERED tapered - Was 6715287 - A

22

6661787

WASHER

23

43C852

BOLT

24

6707757

MOUNT

25

53CM1435

BOLT

26

17C516

BOLT

27

6714498

MOUNT cast

28

58K114

O RING 10

29

97D5

NUT

30

742640

WASHER

31

WASHER NSS - Was 6669067 - A

32

6709168

ELBOW W/Ref. 28, 31 & 43

33

6518121

PLUG

34

6714500

TUBE

35

35C620

BOLT 5

36

STARTER See Illustration STARTER/ D2365

37

6715380

MOUNT, ENG See Illustration ENGINE & ATTACHING PARTS/ E2254

38

17C828

BOLT hyd pump mount

39

1CM1030

BOLT

40

35C516

BOLT 10

41

85D6

NUT, 5

42

6652918

NUT

43

6669066

SEAL RING

44

57D5

NUT

45

17C820

BOLT

46

10C516

BOLT

47

83D5

NUT 5

48

6716225

SPACER

Выбрано товаров: 48
