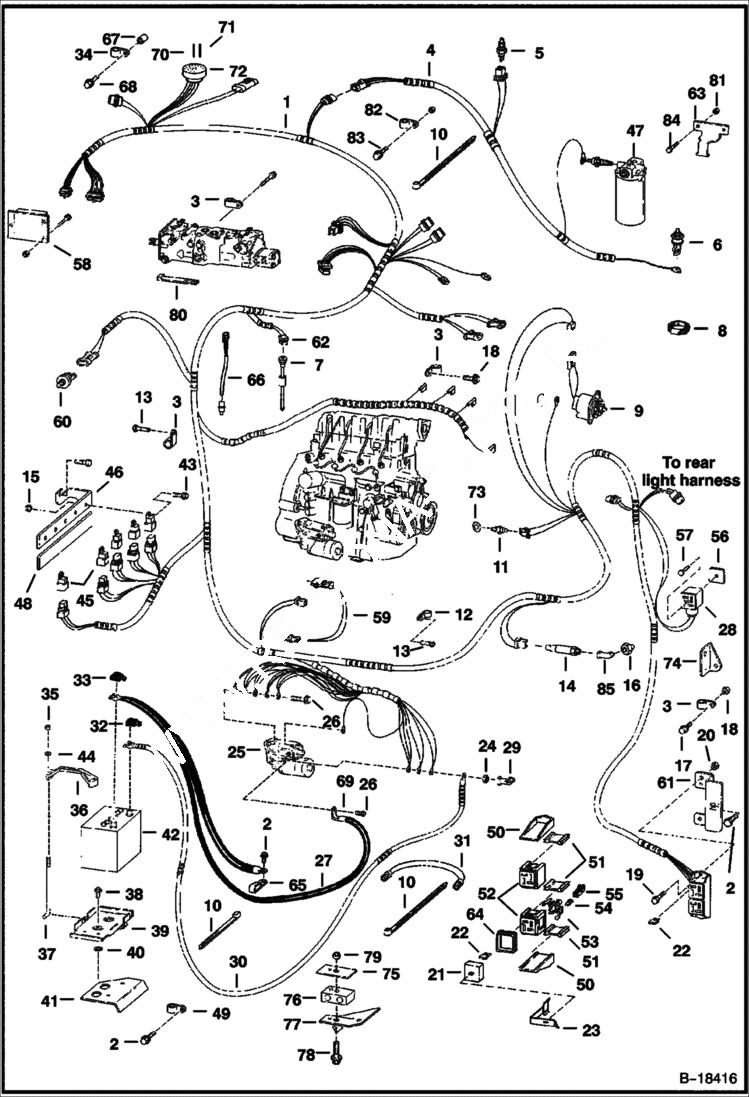

Запчасти Bobcat 800s ENGINE ELECTRICAL CIRCUITRY (W/ B.O.S.S. Option) ELECTRICAL SYSTEM

1

6715948

HARNESS See BTI353 engine

2

84G3712

BOLT 5

3

30H49

CLAMP

4

6716643

HARNESS filter

5

6654200

SENSOR hydrostatic temp

6

6667292

SWITCH hydraulic charge pressure

7

SENSOR NLA - fuel - W/ O-ring - Order 6680438 sensor - Was 6674209 - A

7

79K14

O RING 10

7

7179839

SENSOR FUEL W/gasket - Was 6680438 - A

7

6717579

GASKET

8

44H20

CLAMP Was 42H000020B - A

9

6658884

ALTERNATOR See Illustration ALTERNATOR/ C3312

10

6610510

TIE

11

6717119

SENDER engine oil temperature - W/ red wire

12

30H57

CLAMP

13

1CM816

BOLT

14

6660204

SENSOR engine oil pressure

15

55D4

NUT

16

6708580

ADAPTER

17

17C512

BOLT 5

18

85D5

NUT 5

19

45G1212

BOLT

20

50D12

NUT

21

6665358

COVER , FUSE fuses

22

6707620

FUSE, 10A MINI 5

22

6707621

FUSE, 15A MINI 5

22

6707623

FUSE, 25A MINI 5

22

6674099

BREAKER, 25A

23

6708437

CLIP spring

24

4DM5

NUT

25

STARTER See Illustration STARTER/ D2365 - Was 6685191 - B

26

45C620

BOLT

27

6713670

CABLE negative

28

6665659

CONNECTOR, SHUTDOWN shutdown

29

6560172

COVER

30

6576188

CABLE positive - W/ 30'' (762mm) of Ref. 31

31

6563505

CONDUIT bulk - Sold Per Foot

32

2356058

BOOT

33

6599652

BOOT

34

30H60

CLIP

35

59D5

NUT 5

36

6569203

CLAMP

37

6576280

BOLT

38

84G3716

SCREW 5

39

6712536

PAN

40

6555455

WASHER

41

6579989

BRACKET

42

6665427

BATTERY, DRY 950 AMP

43

17C412

BOLT 5

44

25E15

WASHER

45

6670312

SWITCH, MAGNETIC relay

46

6707649

MOUNT

47

6660260

SWITCH See Illustration HYDROSTATIC OIL FILTER/ C2818 filter

48

6707787

DECAL fuse location

49

30H46

CLIP

50

6665369

MOUNT fuse

51

6665411

WEDGE red

52

6665356

BLOCK fuse - W/Ref. 64

53

6665357

LOCK yellow

54

6650107

SEAL

55

PIN NLA - female - Order 6668719 pin for 16 ga. wire - Order 6668720 pin for 14 ga. wire

56

6668760

SEAL

57

6668761

BOLT

58

6669685

BOSS not initialized

58

6669686

BOSS initialized

58

6669687

BOSS back-up

59

6679853

SENSOR RPM - Was 6658260 - A

60

6665371

SWITCH condition indicator

61

6714764

MOUNT fuse block

62

6646383

CONNECTOR fuel sender

62

6632946

TERMINAL female

63

6704319

MOUNT

64

6671528

SEAL green square

65

31H46

CLAMP

66

6719920

HARNESS adapts to G-series fuel tank

67

6712975

SPACER

68

84G3732

BOLT

69

6E6

WASHER

70

6664828

SOCKET

71

6664041

SOCKET

72

6664585

CONNECTOR Also Order Ref. 70 & 71 as needed

73

6666405

WASHER seal

74

6714979

BRACKET harness

75

6715132

RETAINER cable clamp

76

6715197

CLAMP

77

6715131

BRACKET battery cable

78

17C540

BOLT

79

95D5

NUT

80

6665527

TIE

81

85D4

NUT 5

82

30H42

CLAMP

83

37C512

BOLT

84

17C416

BOLT

85

25F1

ELBOW
