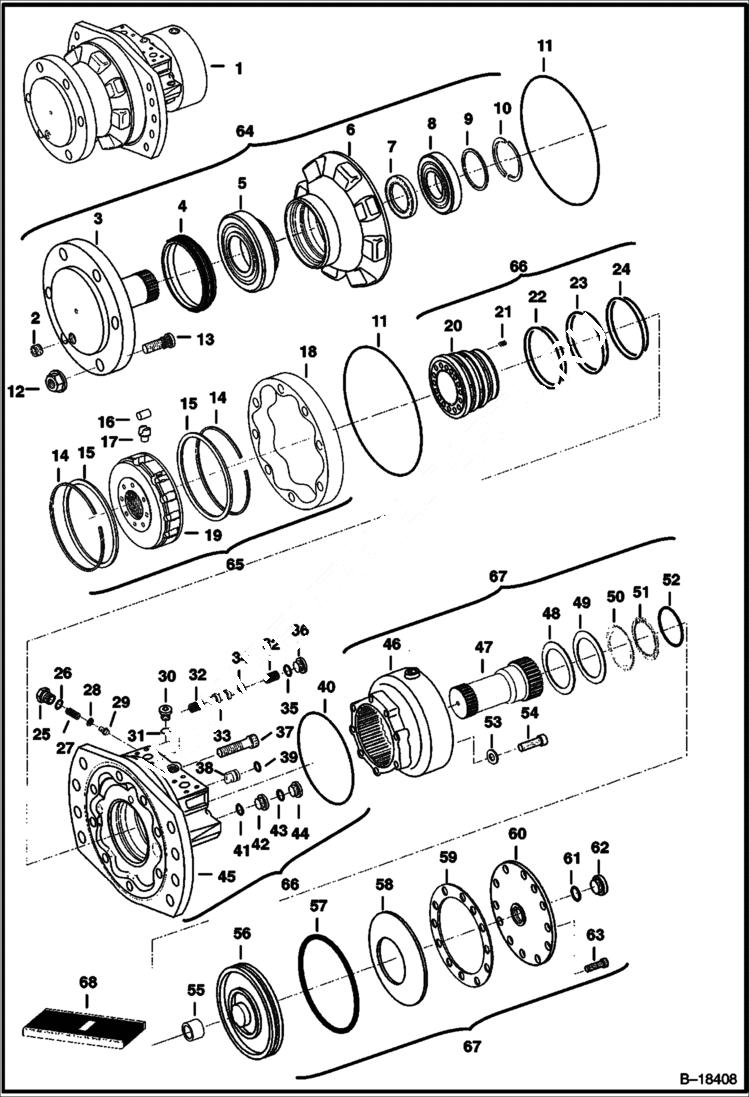

Запчасти Bobcat 800s HYDROSTATIC MOTOR & BRAKE HYDROSTATIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
MOTOR NLA - Ref. 2-63 - model 5840-003-063 - Order 6689051REM motor & 7107787 sprocket - Was 6674888 - A
1
MOTOR NLA - Ref. 2-63 - W/ twin distributor seals - model 5840-003-065 - Order 6689051REM motor & 7107787 sprocket - Was 6675586 - A
1
MOTOR NLA - model 5840-003-075 - Order 6689051REM motor & 7107787 sprocket - Was 6679858 - A
2
6674063
PLUG Model 5840-003-063
2
6680019
PLUG Model 5840-003-065
3
6674709
SHAFT
4
6674727
SEAL, OIL
5
6674725
BEARING
6
HOUSING NLA - Order 6681585 housing assy. - Was 6674717 - A
7
6691212
SEAL Was 6674056 - D
8
6660018
BEARING, MOTOR DRIVE
9
WASHER NLA - preload - .074'' (1,9mm) thick - Was 6674057 - A
9
WASHER NLA - preload - .083'' (2,1mm) thick - Was 6674058 - A
9
WASHER NLA - preload - .091'' (2,3mm) thick - Was 6674059 - A
9
WASHER NLA - preload - .098'' (2,5mm) thick - Was 6689116 - A
9
WASHER NLA - preload - .108'' (2.75mm) thick- Was 6674061 - A
9
6674062
WASHER preload - .157'' (4,0mm) thick
10
6660016
RING, SPLIT
11
6676597
O-RING Was 6660044 - A
12
6691215
NUT Was 6674724 - A
13
6674706
STUD
14
SNAP RING NSS - Order Ref. 19 - Was 6674719 - D
15
RETAINER NSS - Order Ref. 19 - Was 6674711 - D
16
ROLLER NSS - Order Ref. 19 - Was 6674031 - D
17
PISTON NSS - Order Ref. 19 - Was 6674032 - D
18
6675234
CAM Was 6674065 - D
19
BLOCK NLA - Order 6690156 or 6690156REM - W/Ref. 14-17 - Was 6676907 - A
20
DISTRIBUTOR NLA - For model 5840-003-063 - Order 6690156REM (Motor) & 7107787 (Sprocket) - Was 6674855 - A
20
6676909
DISTRIBUTOR for 5840-003-065
21
6660033
SPRING
22
6660034
SEAL W/ O-ring - Was 6674848 - A
23
6674847
SEAL W/ o-ring - for 5840-003-063 - Was 6660035 - D
23
6676910
SEAL W/ o-ring - for 5840-003-065
24
6674846
SEAL W/ o-ring - Was 6674730 - D
25
6674345
PLUG
26
6674851
O-RING
27
6674344
SPRING
28
6674343
SHIM .024'' (0,6mm) thick
29
6674853
POPPET
30
6674839
PLUG W/Ref. 31
31
O-RING NSS
32
6674841
SPRING
33
6675866
SPOOL for model 5840-003-063 - Was 6674337 - A
33
6675866
SPOOL for 5840-003-065
34
6675867
WASHER
35
6671749
O-RING
36
6674852
PLUG W/Ref. 35
37
SCREW M16 x 70mm - The serial number listed is the vendor serial number - Was 6674704 - A
38
6660032
PIN
39
6674850
O-RING some machines may not have this o-ring, it is not needed
40
6674066
SEAL
41
6671758
O-RING
42
6666364
PLUG W/Ref. 41
43
O-RING NSS - Order Ref. 44
44
6674017
PLUG W/Ref. 43
45
6674842
HOUSING for 5840-003-063
45
6676908
HOUSING for 5840-003-065
46
HOUSING NLA - Order 6678779 & 6677828 - Was 6674721 - A
46
6678779
HOUSING for 6677828 o-ring
47
6674718
SHAFT
48
6674722
SHIM .004'' (0,1mm) thick
49
6674723
SHIM .012'' (0,3mm) thick
50
6674714
DISC outer brake
51
6674713
DISC inner brake
52
6674715
SEAL green W/ step
52
6677828
SEAL green W/ metal washer
53
6674708
WASHER
54
6691238
BOLT Was 6689127 - A
55
6674734
BUSHING
56
6674712
THERMOSTAT brake
57
6674728
SEAL Was 6691237 - A
58
6674726
WASHER
59
6674720
GASKET, MOTOR HYD
60
6674716
COVER
61
6674705
O-RING
62
6674707
PLUG
63
3GM820
SCREW Was 6674702 - A
64
HOUSING ASSY NLA - front - Ref. 2-10 - Was 6681585 - A
64
7024981
OIL, SYNTHETIC DRIVE MOTOR 4 236 ml (8 oz) - Was 6682546 - A
65
ROTATING GROUP NLA - Ref. 14-19 - Order Ref. 1 - Was 6675375 - A
66
HOUSING ASSY NLA - rear - Ref. 20-45 - Order Ref. 1 - for 5840-003-063 - Was 6674844 - A
66
HOUSING ASSY NLA - rear - W/Ref. 20-45 - Order Ref. 1 - for 5840-003-065 - Was 6676905 - A
67
6674735
BRAKE ASSY Ref. 46-63
67
6678777
BRAKE ASSY Ref. 46-63
68
SEAL KIT NLA - W/Ref. 7, 11, 22-24, 26, 30, 34, 35, 39-41, 52 (6674715), 57, 59 - for 5840-003-063 - Order 6678778 & 6674715 - Was 6674845 - A
68
SEAL KIT NLA - W/Ref. 7, 11, 22-24, 26, 30, 34, 35, 39-41, 52 (6674715), 57, 59 - for 5840-003-065 - Order 6678778 & 6674715 - Was 6676906 - A
68
SEAL KIT NLA - W/Ref. 7, 11, 22-24, 26, 30, 34, 35, 39-41, 52 (6677828), 57 & 59 for Model 5840-003-075 - W/6677828
