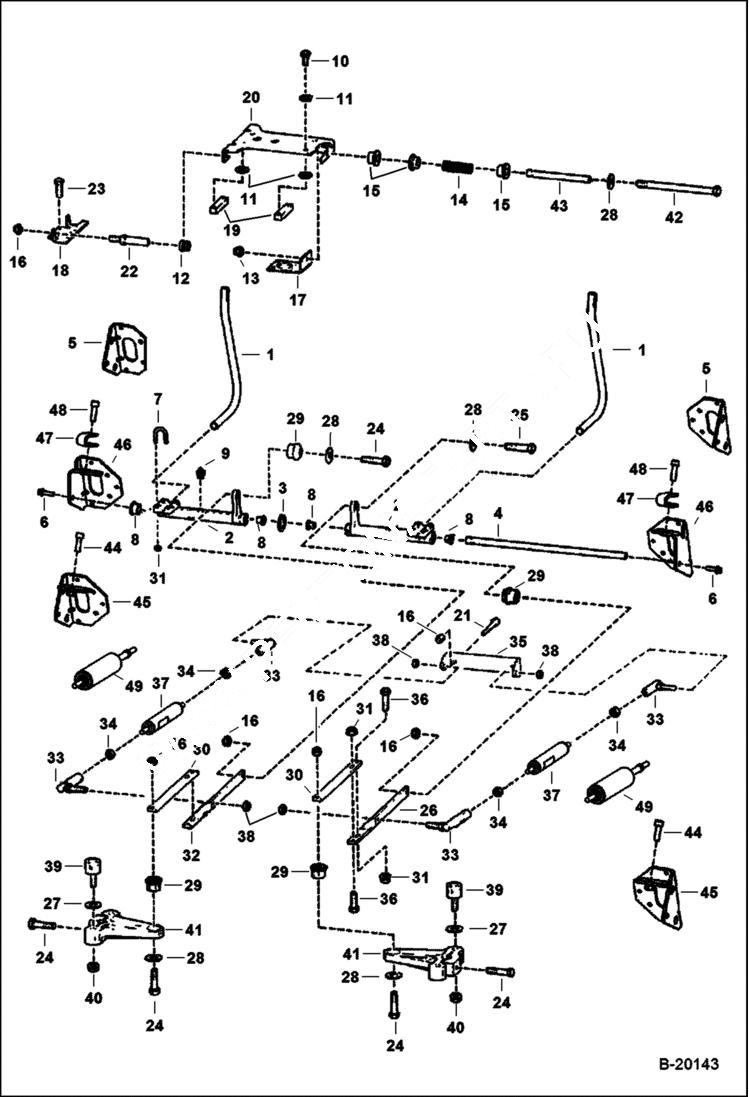

Запчасти Bobcat 800s HAND CONTROLS (M44 Pump) HYDROSTATIC SYSTEM

1

6702543

LEVER, STEERING

2

BELLCRANK NLA - .8725'' (22,2 mm) I.D. hole for Ref. 29 (6665701 bushing) - Use W/Ref. 8 (6673710 bearing) & Ref. 9 (6518200 grease zerk) - Order 7110571 bellcrank, Ref. 9 (10H35 grease zerk), Ref. 28

2

BELLCRANK NLA - 1.0475'' (26,2 mm) I.D. hole for Ref. 29 (6678067 bushing) - Use W/Ref. 8 (6673710 bearing) & Ref. 9 (6518200 grease zerk) - Order 7110571 bellcrank, Ref. 9 (10H35 grease zerk) & (2) o

2

BELLCRANK NLA - Use W/Ref. 8 (6673710 bearing) & Ref. 9 (10H35 grease zerk) - Order 7110571 bellcrank & (2) of Ref. 8 (6703879 bushing) - Was 7110572 - A

2

7110571

BELLCRANK, STEERING W/notch for Ref. 8 (6703879 bushing) - Use W/Ref. 9 (10H35 grease zerk)

3

6599741

WASHER wave

4

6716545

ROD

5

6577230

BRACKET

6

45C620

BOLT

7

6732997

U-BOLT Was 6700768 - A

8

6673710

BEARING, NEEDLE Use W/Ref. 2 (NLA/ 6716977, NLA/ 7101048 & NLA/ 7110572 bellcranks)

8

6703879

BUSHING, PLASTIC W/tab - Use W/Ref. 2 (7110571 bellcrank)

9

6518200

FITTNG, GREASE 10 press fit - Use W/Ref. 2 (NLA/ 6716977 & NLA/ 7101048 bellcranks)

9

10H35

FITTING, GREASE 10 threaded - Use W/Ref. 2 (NLA/ 7110572 bellcrank & 7110571 bellcrank)

10

8C616

SCREW

11

6557831

WASHER

12

6706098

GUIDE

13

57D6

NUT 5

14

6701535

SPRING

15

6715163

BUSHING, PRESS FIT

16

95D6

NUT Was 91D000006B - A

17

6576196

MOUNT

18

6706096

MOUNT

19

6702716

BLOCK

20

6716116

MOUNT

21

17C612

BOLT 5

22

6577058

PIN

23

1CM820

BOLT

24

35C624

BOLT

25

17C626

BOLT

26

LINK NLA - Order 6716117 link - Was 6716231 - A

27

25E17

WASHER 5

28

6563914

WASHER 1.00'' (25,4 mm) O.D.

28

619021

WASHER, 5 0.13'' thick - 32 mm (1.25'') OD

29

6665701

BUSHING, PRESS FIT neoprene - .885'' (22,5 mm) O.D.

29

6685060

BUSHING, TORSION torsion - 26,8 mm (1.055'') OD - Was 6678067 - A

30

6716286

LINK

31

83D6

NUT 5

32

6716117

LINK

33

6599744

BALL JOINT

34

8D6

NUT 5

35

6706106

MOUNT

36

17C620

BOLT

37

GAS SPRING NLA - Japan Option - Order Ref. 49 - Was 6649551 - A

38

96D6

NUT

39

6673789

BEARING

40

98D6

NUT

41

LEVER NLA - .8725'' (22,2 mm) I.D. hole for Ref. 29 (6665701 bushing) - Order 6729956 lever, Ref. 28 (619021B washer) & Ref. 29 (6678067 bushing) - Was 6711644 - A

41

6729956

LEVER, PINTLE 1.0475'' (26,5 mm) I.D. hole for Ref. 29 (6678067 bushing)

42

17C680

BOLT

43

6715164

SLEEVE, SPRING

44

BRACKET NLA - R.H. - Order Ref. 46-48 - Was 6733022 - A

44

BRACKET NLA - L.H. - Order Ref. 46-48 - Was 6733024 - A

45

93G824

BOLT Was 73G824 - A

46

7128600

BRACKET RH

46

7128601

BRACKET LH

47

7121779

PAD

48

73G828

BOLT

49

7188108

GAS SPRING
