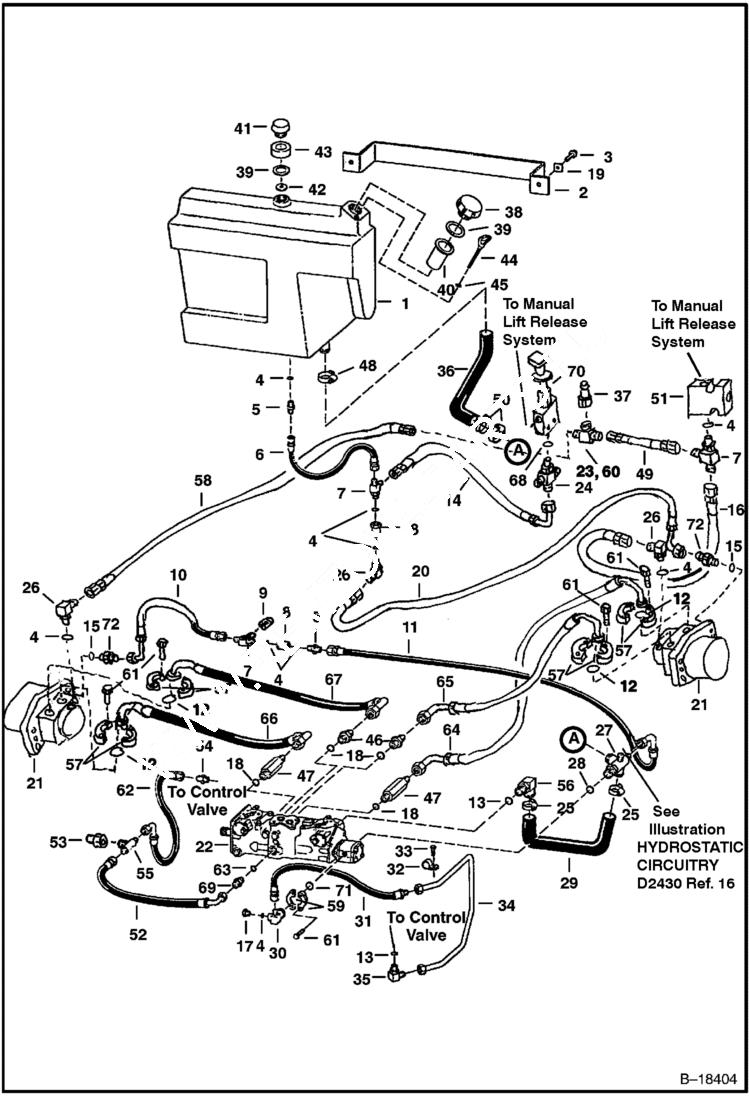

Запчасти Bobcat 800s HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

6704551

TANK

2

6579939

BAND

3

84G3712

BOLT 5

4

99K6

O RING tapered boss face

4

79K6

O RING 10 flat boss face

5

ADAPTOR NLA - W/Ref. 4 - tapered boss face - Was 15KV00005B - A

5

97K6

O RING flared end

5

15KB0606

FITTING, HYD CONNECTOR W/Ref. 4 - flat boss face

6

6716000

HOSE

7

FTG HYD STRAIGHT TEE NLA - W/Ref. 4 - tapered boss face - Was 21KV00005B - A

7

97K6

O RING flared end

7

21KB0606

FTG HYD STRAIGHT TEE W/Ref.4 - flat boss face

8

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527

9

36K5

CAP

10

6717493

HOSE

11

6716300

HOSE

12

55K219

O'RING Was 58K000219B - B

13

99K12

O RING tapered boss face

13

79K12

O RING 10 flat boss face

14

6718145

HOSE

15

79K8

O RING 10

16

6718153

HOSE

17

90KV5

PLUG W/Ref. 4 - tapered boss face

18

75K12

O'RING 10

18

79K12

O RING 10

19

6559447

WASHER

20

6718146

HOSE

21

MOTOR See Illustration HYDROSTATIC MOTOR & BRAKE/ B18408

22

PUMP See Illustration HYDROSTATIC PUMP/ B18603

23

TEE NLA - tapered boss face - Was 10KN00005B - A

23

10K5

TEE flat boss face

24

6817553

CROSS W/Ref. 68 - tapered boss face - Was 6805241 - A

24

97K6

O RING flared end

25

5HM35

HOSECLAMP

26

FITTING NLA - W/Ref. 4 - tapered boss face - Was 17KV00005B - A

26

97K6

O RING flared end

26

17KB0606

FITTING W/Ref. 4 - flat boss face

27

6716468

TEE W/Ref. 28

28

75K16

O RING 10

29

6716175

HOSE

30

7103953

TEE W/Ref. 60 - 4-bolt flange - Was 6717662 - A

30

97K12

O'RING flared end

31

6737341

HOSE Was 6725425 - A

32

30H46

CLIP

33

84G3712

BOLT 5

34

6716506

TUBELINE

35

FITTING, HYD ELBOW NLA - W/Ref. 13 - tapered boss face - Was 17KV00008B - A

35

97K12

O'RING flared end

35

17KB1212

FITTING, HYD ELBOW W/Ref. 13 - flat boss face

36

6710846

HOSE

37

6661753

PLUG diagnostic

38

6728149

CAP , HYD NON VENTED Fill - Also Order Ref. 39 - Was 6532508 - A

39

6700631

GASKET

40

7120881

SCREEN, FILLER Was 6569219 - A

41

6727475

CAP, OIL HYD breather - Also Order Ref. 39 & 43 - Was 6577785 - A

42

6701552

BAFFLE Use W/6577785

43

6703427

FOAM FILTER Use W/6577785

44

6577459

DIPSTICK

45

25K20010

O RING 10

46

15KB1612

FITTING, HYD CONNECTOR W/Ref. 18 (79K000012B) - Was 6715878 - B

47

6716243

ADAPTER W/Ref. 18 (75K000012B)

48

6672281

CLAMP constant tension

49

6704630

HOSE

50

5HM42

HOSECLAMP

51

6672965

VALVE See Illustration BRAKE VALVE/ MS1144 brake

52

6717638

HOSE

53

6563922

SNUBBER assy.

54

6672766

CHECK VALVE

55

6716298

TEE

56

6715718

ELBOW

57

20J12

FLANGE split flange

58

6719107

HOSE

59

19J12

CLAMP

60

TEE NLA - tapered boss face - Was 10KN00005B - A

60

97K6

O RING flared end

60

10K5

TEE flat boss face

61

17C620

BOLT

62

6716248

HOSE

63

75K10

O RING 10 tapered boss face

63

79K10

O RING 10 flat boss face

64

6718780

HOSE

65

6685339

HOSE, HYD ASSY Was 6718781 - A

66

6718782

HOSE

67

6718783

HOSE

68

79K6

O RING 10

69

ADAPTER NLA - W/Ref. 63 - tapered boss face - Was 6717173 - A

69

15KB0610

FITTING, HYD CONNECTOR W/Ref. 63 - flat boss face

70

7230495

VALVE, LIFT MANUAL See Illustration MANUAL LIFT RELEASE VALVE/ PE1547 - manual lift release - Was 6667844 - A

71

55K214

O-RING

72

743108

FITTING
