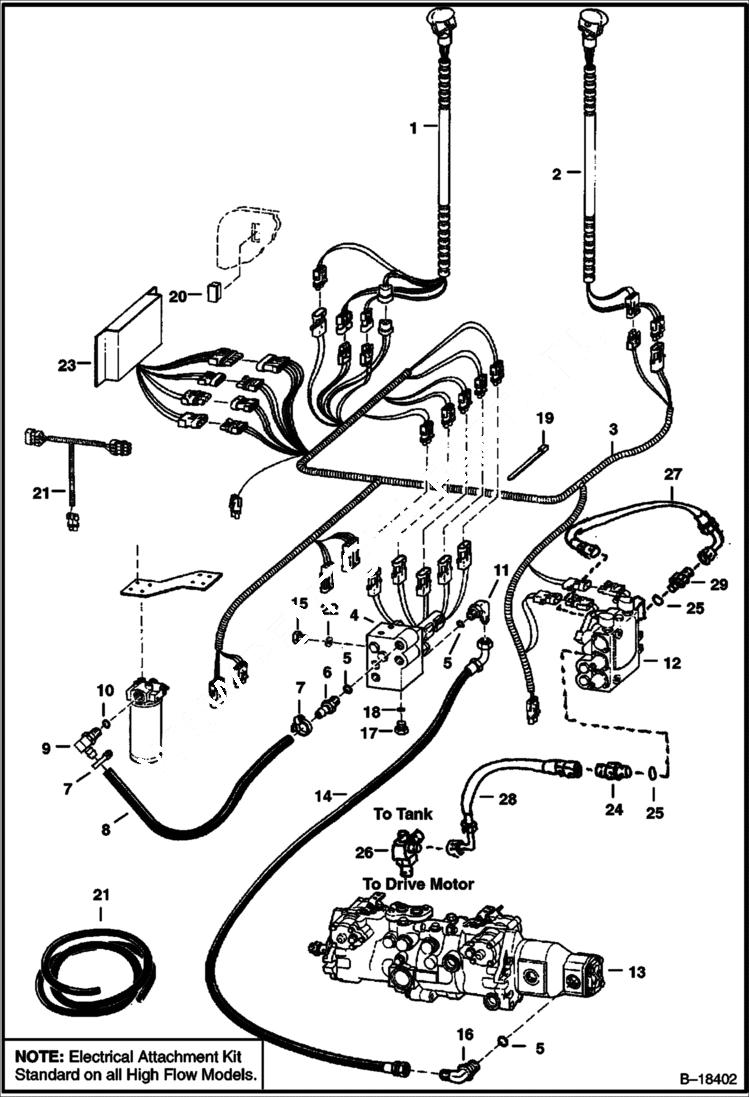

Запчасти Bobcat 800s HIGH HORSEPOWER HYDRAULICS HIGH FLOW HYDRAULICS

1

6706568

KIT See Illustration HANDLE KITS/ MS1682 L.H. Multi-Switch Handle

2

6706735

KIT See Illustration ELECTRICAL CONTROLS KIT/ MS1678 R.H. Multi-Switch Handle

3

6712524

HARNESS

4

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ TS1434R

5

99K10

O'RING tapered boss face

5

79K10

O RING 10 flat boss face

6

1316263

ADAPTER flat boss face - W/Ref. 5

7

44H16

CLAMP worm gear

7

5HM29

HOSECLAMP constant tension

8

6715278

HOSE

9

6712977

TEE W/Ref. 10

10

79K5

O RING 10

11

6714134

ELBOW W/Ref. 5 - tapered boss face

12

VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1637 control

13

PUMP See Illustration HYDROSTATIC PUMP/ B18603

14

6715459

HOSE

15

17C612

BOLT 5

16

FITTING, HYD ELBOW NLA - W/Ref. 5 - tapered boss face - Was 18KN00007B - A

16

97K10

O-RING 10 flared end

16

17KB1010

FITTING, HYD ELBOW W/Ref. 5 - flat boss face

17

90KV5

PLUG W/Ref. 18 - tapered boss face - Was 24KN00005B - B

18

99K6

O RING tapered boss face

19

6610510

TIE

20

6668813

SWITCH

21

6710435

HARNESS adapter bleed

22

25E17

WASHER 5

23

6673757

CONTROLLER See Illustration ELECTRICAL CONTROLS CIRCUITRY/ E2277 pwm

24

ADAPTOR NLA - W/Ref. 25 - tapered boss face - Was 15KV00005B - A

24

97K6

O RING flared end

24

15KB0606

FITTING, HYD CONNECTOR W/Ref. 25 - flat boss face

25

99K6

O RING tapered boss face

25

79K6

O RING 10 flat boss face

26

6718031

TEE

27

6801712

HOSE

28

6802851

HOSE

29

FTG HYD L CONNECTOR NLA - W/Ref. 25 - tapered boss face - Was 16KN00005B - A

29

97K6

O RING flared end

29

16KB0606

FTG HYD L CONNECTOR W/Ref. 25 - flat boss face
