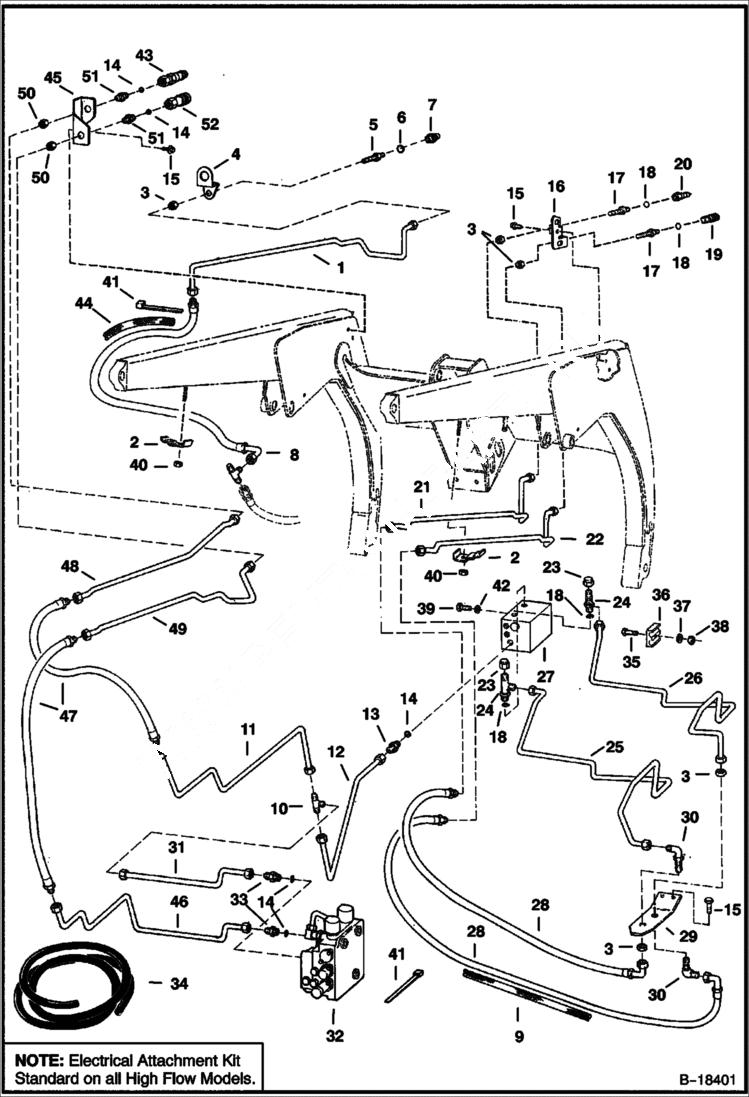

Запчасти Bobcat 800s HIGH HORSEPOWER HYDRAULICS ( Auxiliary Hydraulics ) HIGH FLOW HYDRAULICS

1

6716442

TUBELINE

2

6703216

CLAMP

3

86F5

NUT

4

6711913

BRACKET

5

6726479

ADAPTER W/Ref. 6 - Was 6711628 - A

6

79K8

O RING 10

7

6667806

COUPLER male - F.F.

7

6669659

O-RING

8

6716389

HOSE

9

COVER NLA - 55'' (1397mm) long - Order Ref. 34

10

10K8

TEE tapered boss face - Was 10KN00008B - A

10

97K12

O'RING flared end

11

6712963

TUBELINE

12

6712965

TUBELINE

13

6659459

CHECK VALVE inline check

14

99K12

O RING tapered boss face

14

79K12

O RING 10 flat boss face

15

84G3712

BOLT 5

16

6711674

MOUNT

17

6716089

CONNECTOR tapered boss face

17

97K6

O RING flared end

18

99K6

O RING tapered boss face

19

6667803

COUPLER, FF FEMALE

20

6667804

COUPLER, FF MALE

20

6669657

SEAL KIT

21

6712997

TUBELINE

22

6712998

TUBELINE

23

36K5

CAP

24

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 18 - tapered boss face - Was 21KV00005B - A

24

97K6

O RING flared end

25

6712974

TUBELINE Was 6714061 - B

26

6717206

TUBELINE

27

6669203

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ TS1434R - select

28

6719266

HOSE Was 6714877 - A

29

6713091

MOUNT

30

88F5

ELBOW tapered boss face - Was 88FN00005B - A

30

97K6

O RING flared end

31

6716161

TUBELINE

32

VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1637

33

15KB1212

FITTING, HYD CONNECTOR W/Ref. 14 - tapered boss face - Was 15KN00008B - A

33

97K12

O'RING flared end

34

6665875

COVER bulk - sold per foot - 1.25'' (28,5 mm) I.D.

35

31C420

BOLT 5

36

6578870

CLAMP

37

6579255

WASHER

38

57D4

NUT

39

17C612

BOLT 5

40

59D6

NUT

41

6624289

STRAP, TIE

42

25E17

WASHER 5

43

6674688

COUPLER, FF MALE straight - Was 6667808 - A

43

6679841

SEAL Was 6672026 - A

44

COVER NLA - 83'' (2108mm) long - Order Ref. 34

45

BRACKET See Illustration AUXILIARY HYDRAULICS/ MS1627

46

6712596

TUBELINE

47

6729152

HOSE Was 6714542 - A

48

6716441

TUBELINE

49

6716440

TUBELINE

50

86F8

NUT 5

51

CONNECTOR NLA - W/Ref. 14 - tapered boss face - Was 6716090 - A

51

97K12

O'RING flared end

51

6812823

ADAPTER W/Ref. 14 - flat boss face

52

6672960

COUPLER, FF FEMALE straight
