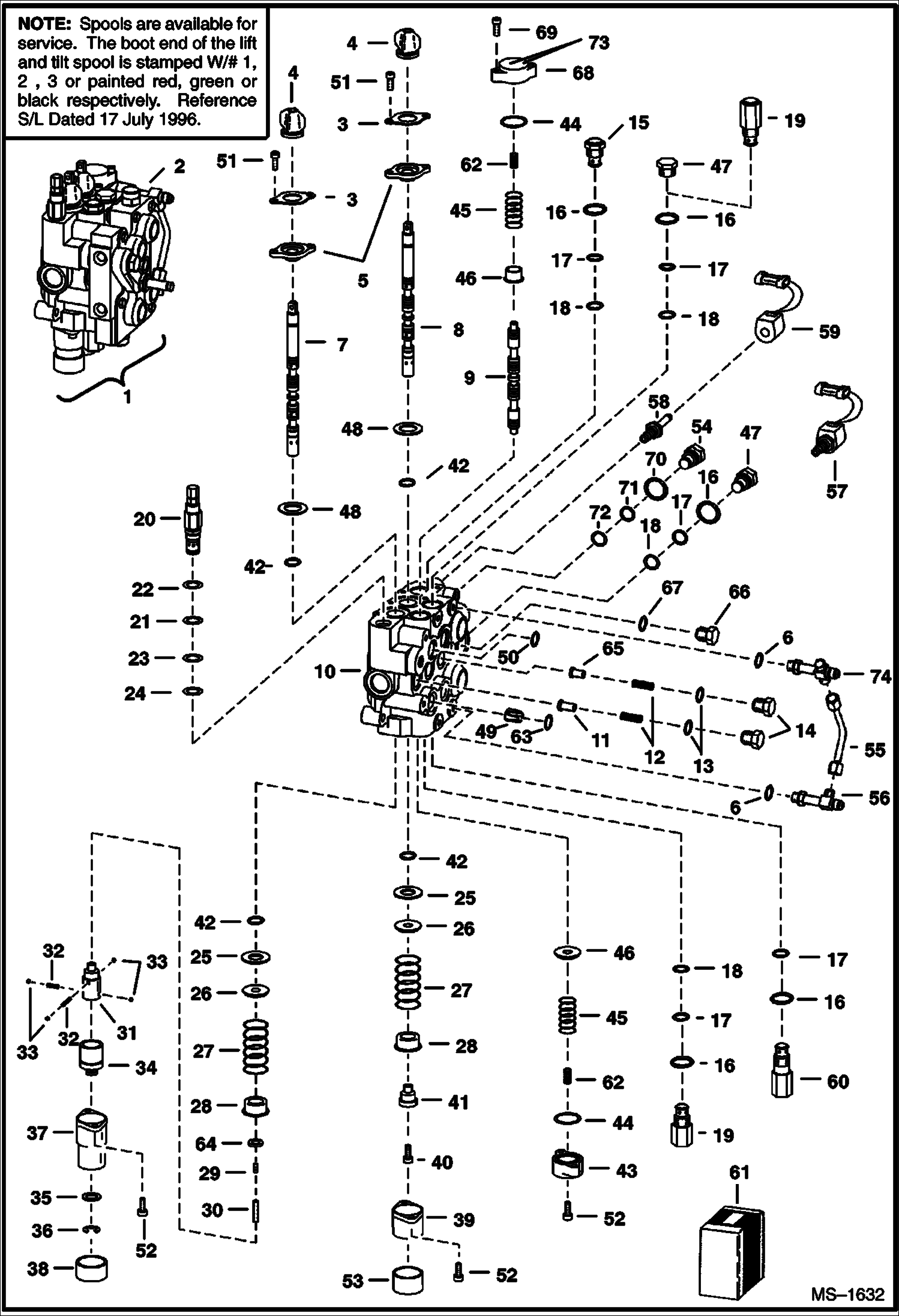

Запчасти Bobcat 800s HYDRAULIC CONTROL VALVE (High Flow) (W/ BICS Control Valve) HYDRAULIC SYSTEM

1

VALVE NLA - Order 6806180 - Was 6805721 - A

2

6628571

VALVE ASSY See Illustration BICS CONTROL VALVE/ TS1365

3

6589564

RETAINER

4

6587763

BOOT

5

6589565

BUSHING seal

6

79K6

O RING 10

7

7222716

SPOOL, LIFT lift - #1 or red - SEE NOTE - Was 6674805 - A

7

7222717

SPOOL, LIFT lift - #2 or green - SEE NOTE - Was 6674806 - A

7

7222718

SPOOL, LIFT lift - #3 or black - SEE NOTE - Was 6674807 - A

8

6674811

SPOOL tilt - # 1 or red - SEE NOTE

8

6674812

SPOOL tilt - # 2 or green - SEE NOTE

8

6674813

SPOOL tilt - # 3 or black - SEE NOTE

9

6588074

SPOOL auxiliary - SEE NOTE

10

BODY NSS

11

6592115

SEAT load check

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

6667549

VALVE anti-cavity check - W/Ref. 16-18

16

79K10

O RING 10

17

80K14

BACK-UP WASHER Was 73K000014B - B

18

58K014

O-RING 10 back-up washer required

18

6677106

O-RING back-up washer not required

19

6599161

RELIEF VALVE port relief - W/Ref. 16-18

20

VALVE NLA - main relief - W/Ref. 21-24 - pressure preset at factory - Was 6676198 - A

20

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

21

58K017

O-RING 10

22

6665569

WASHER back-up

23

25K20016

O RING 10

24

6665570

RING glide

25

6595663

BUSHING

26

7211397

WASHER, SPRING Was 6587523 - A

27

6587580

SPRING

28

6592100

COLLAR

29

6596807

PLUG plastic - 0.46'' long

30

6586918

SCREW

31

6587575

ADAPTER

32

6592107

SPRING

33

6592105

BALL

34

6531270

SLEEVE, DETENT

35

6592098

WASHER

36

799119

RING

37

6589226

COVER, END 0.63'' flange

38

6660644

CAP

39

7101345

BONNET, DETENT HYD VALVE Was 6587633 - A

40

30G416

BOLT

41

6592109

ADAPTER

42

6683274

SEAL, SPOOL 10 spool - Was 6665846 - A

43

6588781

END CAP .87'' thick

44

58K124

O RING 10

45

6596332

SPRING

46

7108780

SLEEVE Was 6595951 - A

47

6592720

PLUG W/Ref. 16-18

48

1K127

O-RING 10 Was 93K127 - A

49

6800124

ORIFICE 0.185

50

55K204

O RING 10

51

29G412

BOLT

52

29G416

BOLT 1'' long

53

6662848

CAP

54

6805137

PLUG

55

6577690

TUBE

56

6805243

TEE W/Ref. 6 - flat boss face - W/flared end O-rings

56

97K6

O RING flared end

57

6677201

SOLENOID W/Ref. 58 & 59 - Was 6665084 - B

58

6676249

STEM, VALVE SOLENOID Was 6666616 - B

58

6679961

NUT coil

58

6586459

SEAL KIT

59

6717706

COIL, 10 VOLT W/ nut - pwm - 10 volt

59

6676566

NUT

60

6664373

VALVE port relief & anti-cav. - W/Ref. 16 - 2500 PSI - use in tilt cylinder base end port

60

6678552

VALVE port relief & anti-cav. - W/Ref. 16 - 3500 PSI - use in tilt cylinder base end port - Was 6671632 - A

61

6816250

KIT, SEAL one spool - Ref. 4, 29, 42, 48, 51, 52 & 64 - Was 6803605 - A

61

6816253

KIT, SEAL complete - Ref. 2, 4, 6, 13, 16-18, 21-24, 42, 44, 48, 52, 58, 61 & 62 - Was 6809448 - A

61

6632279

KIT, SEAL main relief - Ref. 21-24

61

6809425

SEAL KIT Ref. 13 & 16-18 - Was 6586461 - A

62

6595131

SPRING .72'' OD

63

55K212

O RING 10

64

54K20002

O'RING 10

65

6596569

SEAT load check

66

90K8

PLUG W/Ref. 67 - socket head - Was 90KV00008B - A

67

95K12

O-RING

68

6800790

END CAP

69

29G436

BOLT

70

79K7

O RING 10

71

58K012

O-RING 10

72

58K11

O RING 10

73

90KV5

PLUG

74

6817553

CROSS Was 6805241 - A
