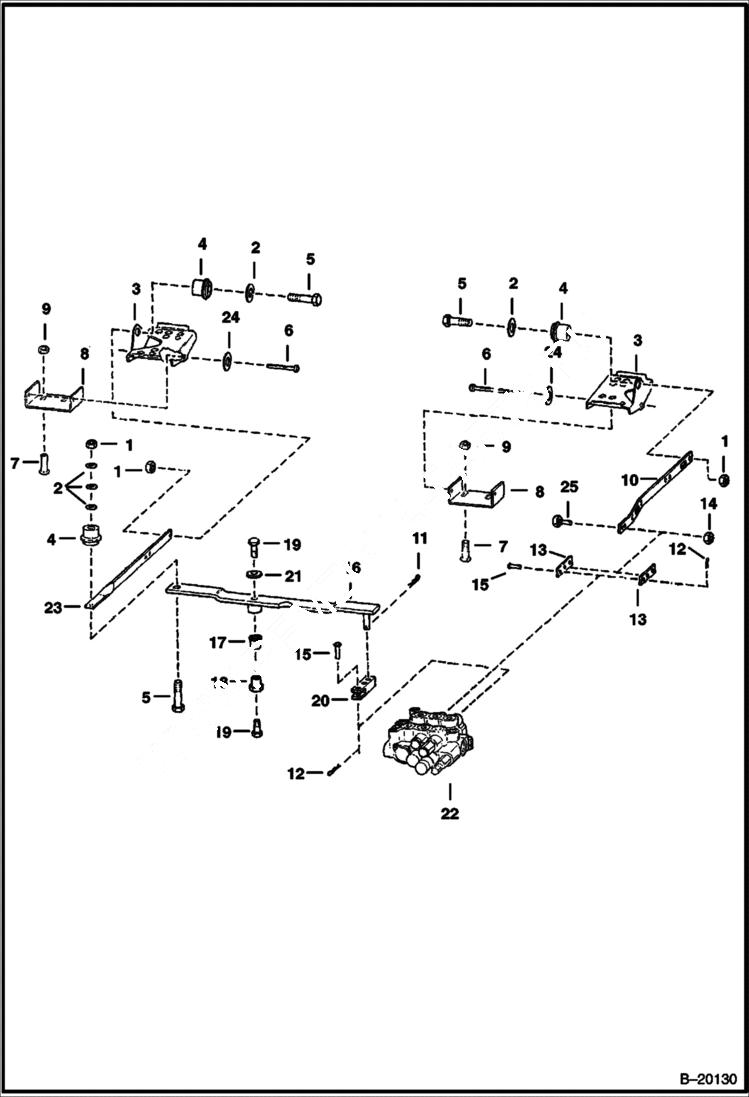

Запчасти Bobcat 800s CONTROL PEDALS HYDRAULIC SYSTEM

1

85D6

NUT, 5

2

6563914

WASHER

3

7115219

PEDAL Was 6726680 - A

4

6665701

BUSHING, PRESS FIT

5

17C624

BOLT 5

6

6564657

PIN

7

7C620

BOLT Was 6704349 - A

8

6726679

MOUNT Was 6564658 - B

9

57D6

NUT 5

10

6710329

BAR

11

1306637

CLIP

12

6513495

COTTER PIN

13

6708009

LINK

14

95D6

NUT Was 91D000006B - A

15

6564654

PIN

16

6706108

LEVER

17

6512026

BUSHING

18

6706104

RETAINING NUT

19

17C612

BOLT 5

20

6706105

YOKE

21

619021

WASHER, 5

22

VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1637

23

6717596

BAR Was 6710328 - D

24

25E21

WASHER 5 Use if serrations on pins are too long

25

17C620

BOLT
