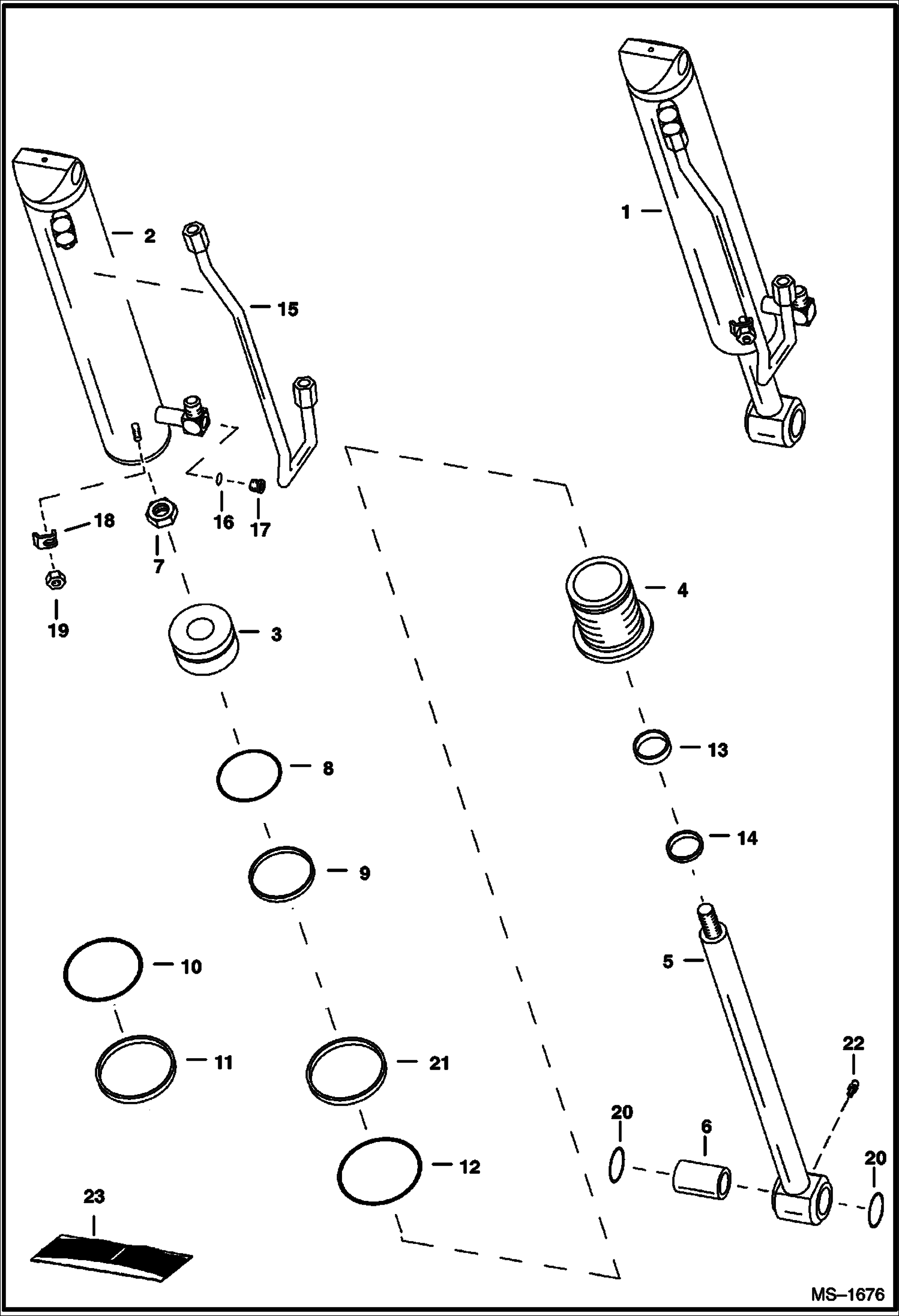

Запчасти Bobcat 800s TILT CYLINDER HYDRAULIC SYSTEM

1

6804674

CYLINDER, TILT tilt - Ref. 2-20 - W/Rod eye grease hole

2

6596974

TUBE, CASE CYL TILT 3.5'' (88,9 mm) I.D.

3

6800468

PISTON

4

6800469

HEAD

5

6804678

SHAFT, ROD CYL TILT W/Ref. 6 - W/Rod eye grease hole

6

6805150

BUSHING, PRESS FIT wear - W/grease fitting hole

7

6810539

NUT Was 6804592 - A

8

25K30300

O RING 10 Was 54K30300 - A

9

1530265

PISTON SEAL

10

O RING 10 NLA - Order Ref. 21 - Was 58K338 - B

11

RING NLA - back-up - Order Ref. 21 - Was 73K338 - B

12

82K238

O-RING Was 58K000238B - A

13

6669267

SEAL

14

6687000

WIPER ROD wiper - Was 6669268 - A

15

6532590

TUBELINE, HYD

16

75K6

O-RING flat boss face - Was 79K000006B - B

16

95K6

O'RING tapered boss face

17

90KV5

PLUG W/Ref. 16 - tapered boss face - allen socket head

17

90K5

PLUG W/Ref. 16 - flat boss face - allen head socket

17

6812171

PLUG W/Ref. 16 - flat boss face - hex head

18

6562266

CLAMP

19

95D6

NUT Was 91D000006B - A

20

2'' (5,08 mm) OD

20

225855

SEAL, OIL 10 38 mm (1.5'') OD

21

7008353

SEAL, QUAD

22

10H35

FITTING, GREASE 10

23

7196898

KIT, SEAL Ref. 7-9, 12-14 & 21 - Was 7138006 - A
