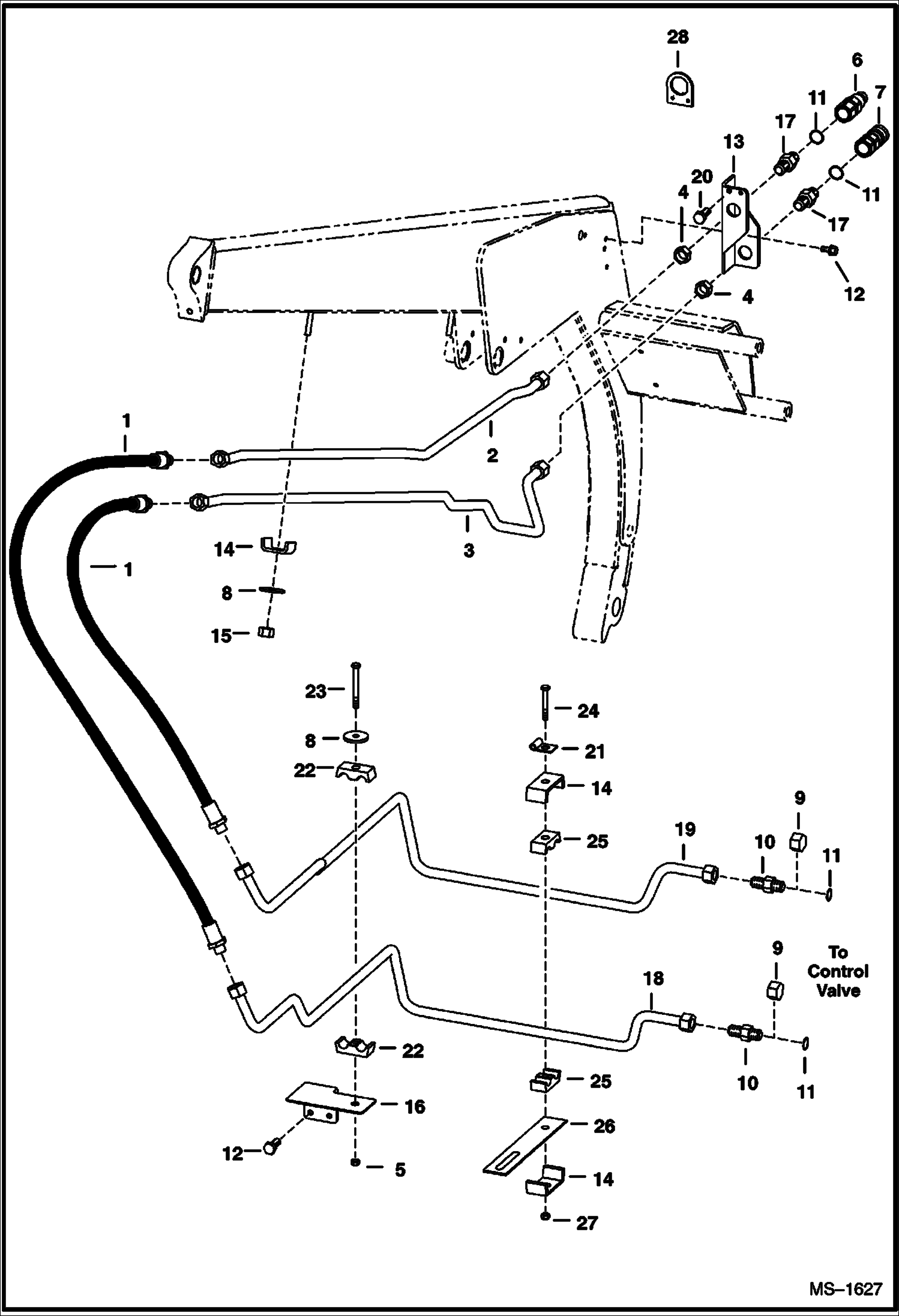

Запчасти Bobcat 800s AUXILIARY HYDRAULICS HYDRAULIC SYSTEM

1

6729152

HOSE Was 6714542 - A

2

6716441

TUBELINE

3

6716440

TUBELINE

4

86F8

NUT 5

5

85D6

NUT, 5

6

6674688

COUPLER, FF MALE straight - Was 6667808 - A

6

6679841

SEAL Was 6672026 - A

7

6672960

COUPLER, FF FEMALE straight

8

872229

WASHER

9

36K8

CAP W/O front aux. option

10

15KB1212

FITTING, HYD CONNECTOR W/Ref. 11 - tapered boss face - Was 15KN00008B - A

10

97K12

O'RING flared end

11

99K12

O RING tapered boss face

11

79K12

O RING 10 flat boss face

12

84G3716

SCREW 5 Was 84G003712B - B

13

6714665

MOUNT

14

6502203

CLAMP

15

59D6

NUT

16

6712599

BRACKET

17

CONNECTOR NLA - tapered boss face - Was 6716090 - A

17

97K12

O'RING flared end

17

6812823

ADAPTER flat boss face

18

6712596

TUBELINE

19

6717418

TUBE

20

84G3110

SCREW

21

30H46

CLIP

22

6592506

CLAMP

23

17C640

BOLT 5

24

17C552

BOLT

25

6701892

CLAMP

26

6702548

PAD

27

85D5

NUT 5

28

6714999

MOUNT
