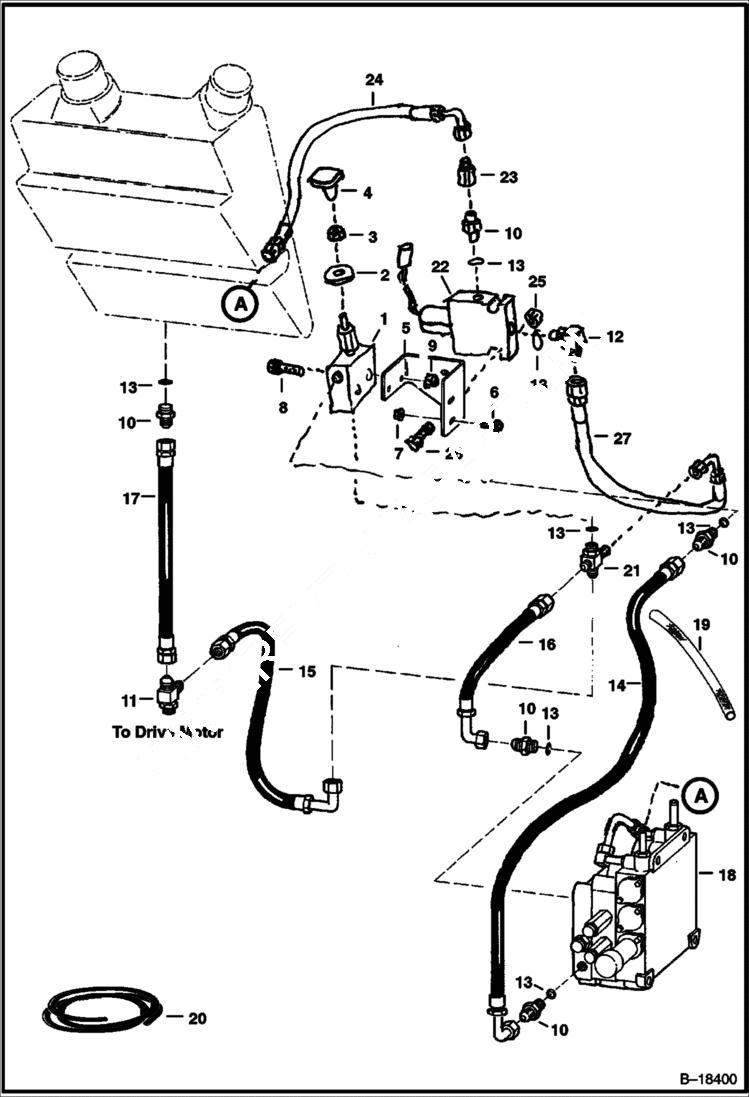

Запчасти Bobcat 800s MANUAL LIFT RELEASE SYSTEM HYDRAULIC SYSTEM

1

7230495

VALVE, LIFT MANUAL See Illustration MANUAL LIFT RELEASE VALVE/ PE1547 - manual lift release - Was 6667844 - A

1

6803932

DECAL warning

2

6707101

SEAL neoprene

3

7D4

NUT for 6664858

4

6737524

KNOB red square - Was 6668913 - A

5

6718881

BRACKET

6

35C620

BOLT 5

7

83D6

NUT 5

8

17C428

BOLT

9

83D4

NUT 10

10

ADAPTOR NLA - W/Ref. 13 - tapered boss face - Was 15KV00005B - A

10

97K6

O RING flared end

10

15KB0606

FITTING, HYD CONNECTOR W/Ref. 13 - flat boss face

11

FTG HYD STRAIGHT TEE NLA - W/Ref. 13 - tapered boss face - Was 21KV00005B - A

11

97K6

O RING flared end

11

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 13 - flat boss face

12

17KB0606

FITTING Was 17KN00005B - A

13

99K6

O RING tapered boss face

13

79K6

O RING 10 flat boss face

14

6714856

HOSE 21''(533,4mm) long

15

6718145

HOSE

16

6706790

HOSE

17

6716000

HOSE

18

CONTROL VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1637

19

SHIELD NLA - 21'' (533,4 mm) long - Order Ref. 20

20

6650108

HOSE COVER bulk - 1.35'' (33,5 mm) I.D. - Sold Per foot

21

6817553

CROSS Was 6805241 - A

22

6672965

VALVE See Illustration BRAKE VALVE/ MS1144 BRAKE

23

6672766

CHECK VALVE

24

6578804

HOSE

25

83D4

NUT 10

26

17C432

BOLT

27

6716463

HOSE
