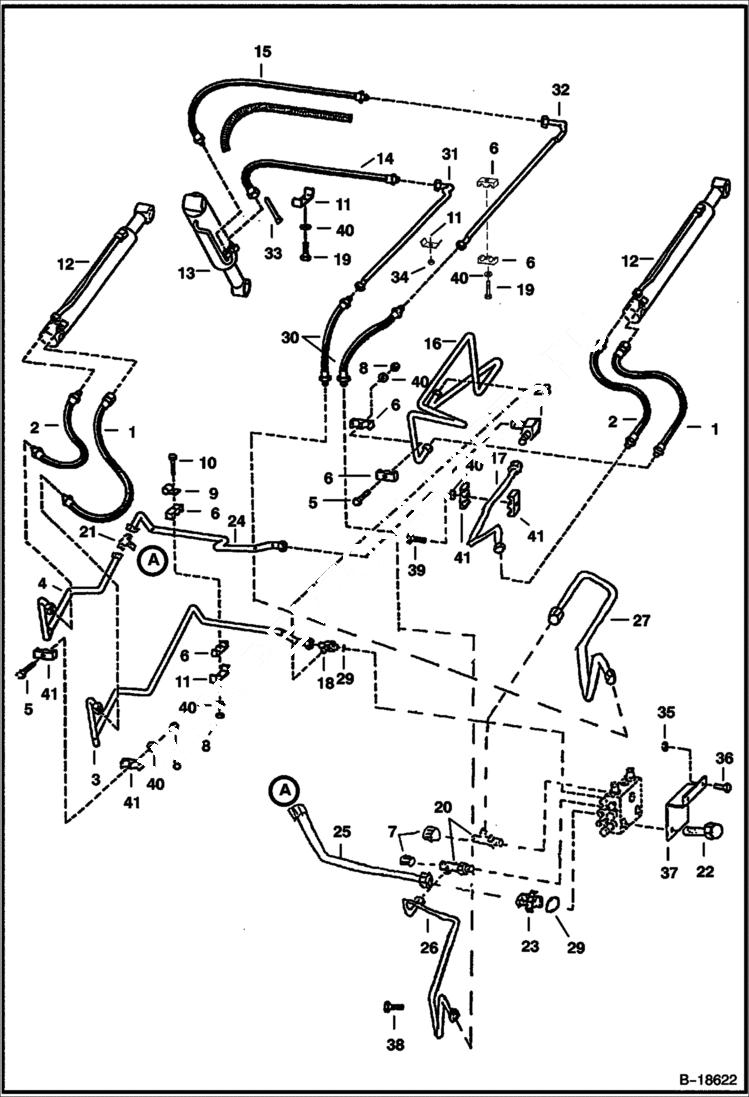

Запчасти Bobcat 800s HYDRAULIC CIRCUITRY (W/O Bucket Positioning Valve) HYDRAULIC SYSTEM

1

6669460

HOSE

2

6669461

HOSE

3

6710793

TUBE

4

6716156

TUBE

5

10C528

BOLT

6

6701893

CLAMP

7

36K7

FITTING

8

85D5

NUT 5

9

30H46

CLIP

10

17C532

BOLT 5

11

6502203

CLAMP

12

CYLINDER See Illustration LIFT CYLINDER/ TS1451 LIFT

13

CYLINDER See Illustration TILT CYLINDER/ MS1676 TILT

14

6578773

HOSE

15

6578774

HOSE

16

6710795

TUBE

17

6717205

TUBE

18

TEE NLA - W/Ref. 29 - tapered boss face - Was 6715187 - A

18

97K8

O-RING flared end

18

21KB0810

FITTING, HYD TEE W/Ref. 29 - flat boss face

19

84G3728

BOLT

20

21KB1010

FITTING, HYD TEE Was 21KN00007B - A

21

6716061

TEE

21

97K8

O-RING flared end

21

97K10

O-RING 10 flared end

22

6717378

BOLT

23

15KB1010

FITTING, HYD CONNECTOR W/Ref. 29 - tapered boss face - Was 15KV00007B - A

23

97K10

O-RING 10 flared end

24

6716988

TUBE

25

6717419

TUBE

26

6716158

TUBE

27

6716159

TUBE

28

77F6

ELBOW tapered boss face - Was 77FN00006B - A

28

97K10

O-RING 10 flared end

29

99K10

O'RING tapered boss face

29

79K10

O RING 10 flat boss face

30

6669674

HOSE

31

6710193

TUBE

32

6710194

TUBE

33

STA-STRAP

34

59D6

NUT

35

85D6

NUT, 5

36

17C616

BOLT 5

37

6710301

BRACKET

38

17C528

BOLT

39

17C544

BOLT

40

872229

WASHER

41

6701892

CLAMP
