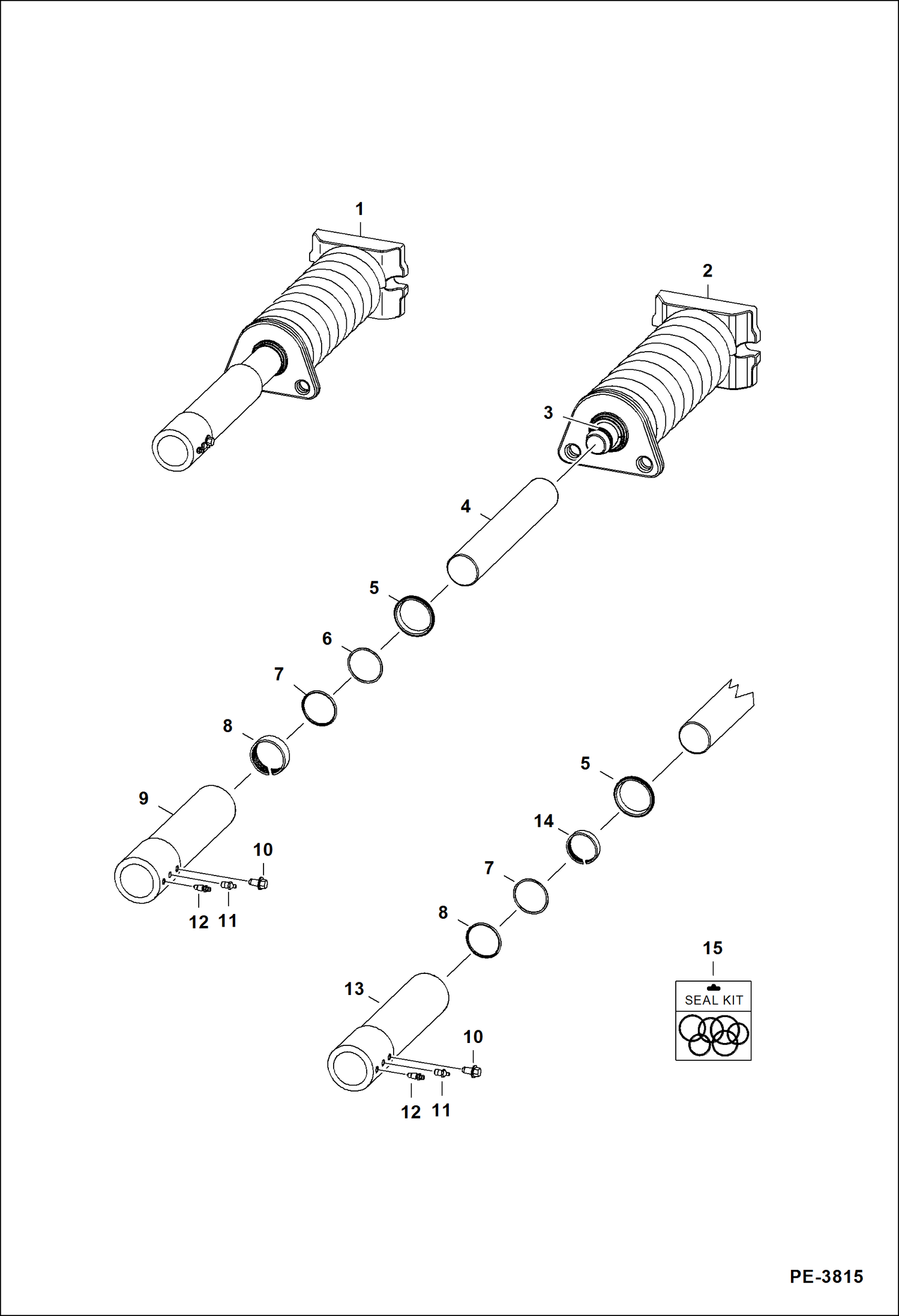

Запчасти Bobcat 800s TRACK TENSIONER DRIVE TRAIN

1

TENSIONER, TRACK ASSY - NLA - Ref. 2-12 - Order 7180676 tensioner -Was 7166384 - A

1

7180676

TENSIONER, TRACK ASSY Ref. 2-7 & 10-14

2

COIL SPRING ASSY NSS - Order Ref. 1

3

25K30118

O RING 10 not in seal kit

4

7154253

SHAFT, CHROME

5

6686968

SEAL, WIPER ROD

6

6685154

RING, BACK-UP

7

6672338

O-RING

8

7000773

RING, WEAR .75'' (19,05 mm) wide - Use W/Ref. 1 (NLA/ 7166384 tensioner)

9

TUBE, GREASE NLA - Use W/Ref. 1 (NLA/ 7166384 tensioner) - Order Ref. 13 tube - Was 7167468 - A

10

26GM10020

BOLT

11

6655752

FITTING 68,900 kpa (10,000 psi) - DO NOT SUBSTITUTE

12

6645812

SCREW, BLEED

13

7180598

TUBE, TENSIONER Use W/Ref. 1 (7180676 tensioner)

14

6688839

WEAR RING 9,53 mm (0.38'') wide - Use W/Ref. 1 (7180676 tensioner)

15

7163219

KIT, SEAL Was 7163394 - D
