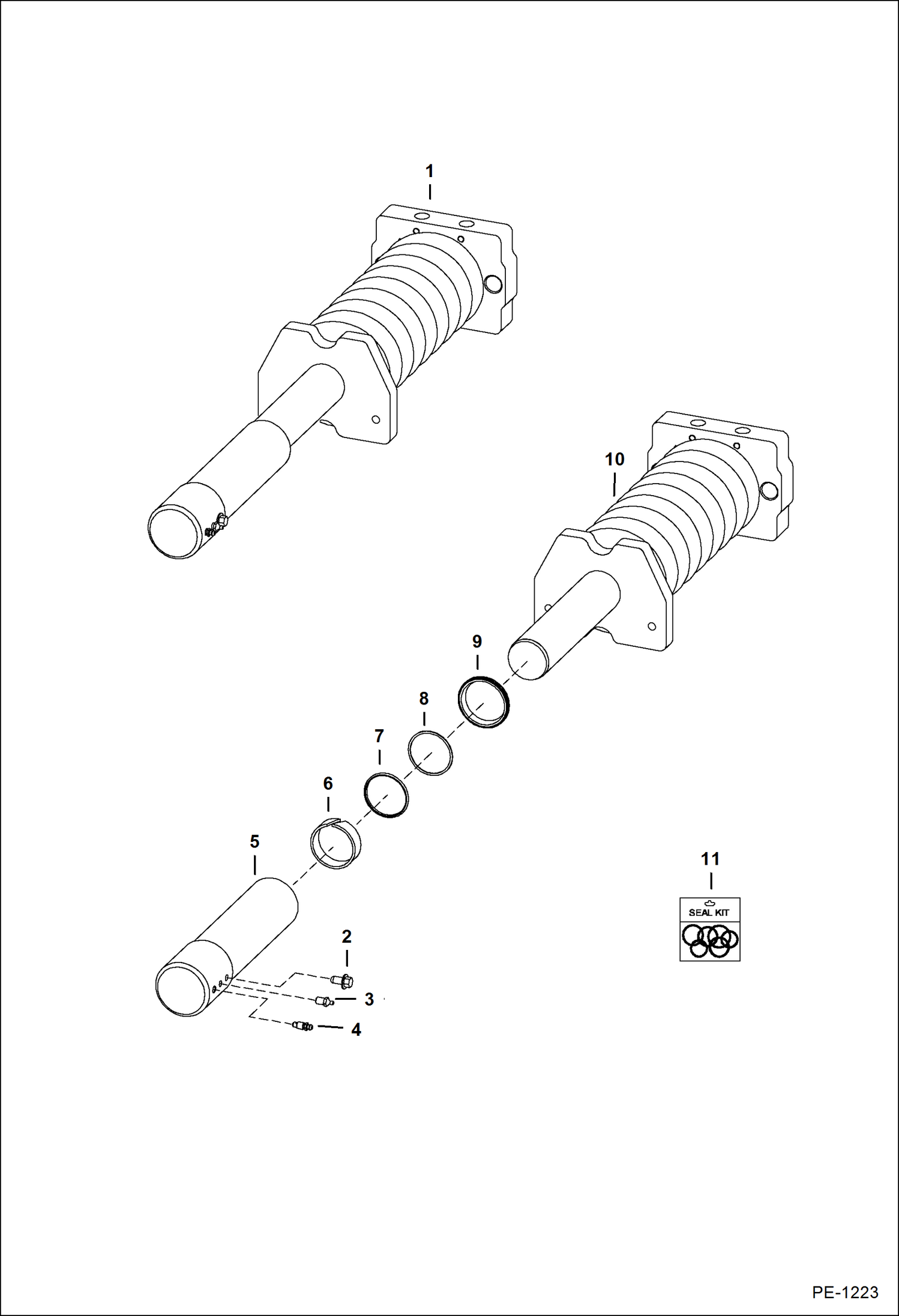

Запчасти Bobcat 800s TRACK TENSIONER DRIVE TRAIN

1

TRACK TENSIONER See Illustration TRACK TENSIONER/ PE3815 - NLA - Ref. 2-10 - Was 6718337 - A

2

26GM10020

BOLT

3

6655752

FITTING 68,900 kpa (10,000 psi) - DO NOT SUBSTITUTE

4

6645812

SCREW, BLEED

5

7160494

TUBE, GREASE Was 7106506 - A

6

7000773

RING, WEAR .75'' (19,05 mm) wide - Was 6698135 - A

7

6672338

O-RING

8

6685154

RING, BACK-UP back-up - Was 6672342 - A

9

6686968

SEAL, WIPER ROD Was 6684410 - A

10

COIL SPRING ASSY NSS - Order Ref. 1

11

7163219

KIT, SEAL Ref. 6-9 - Was 7102860 - B
