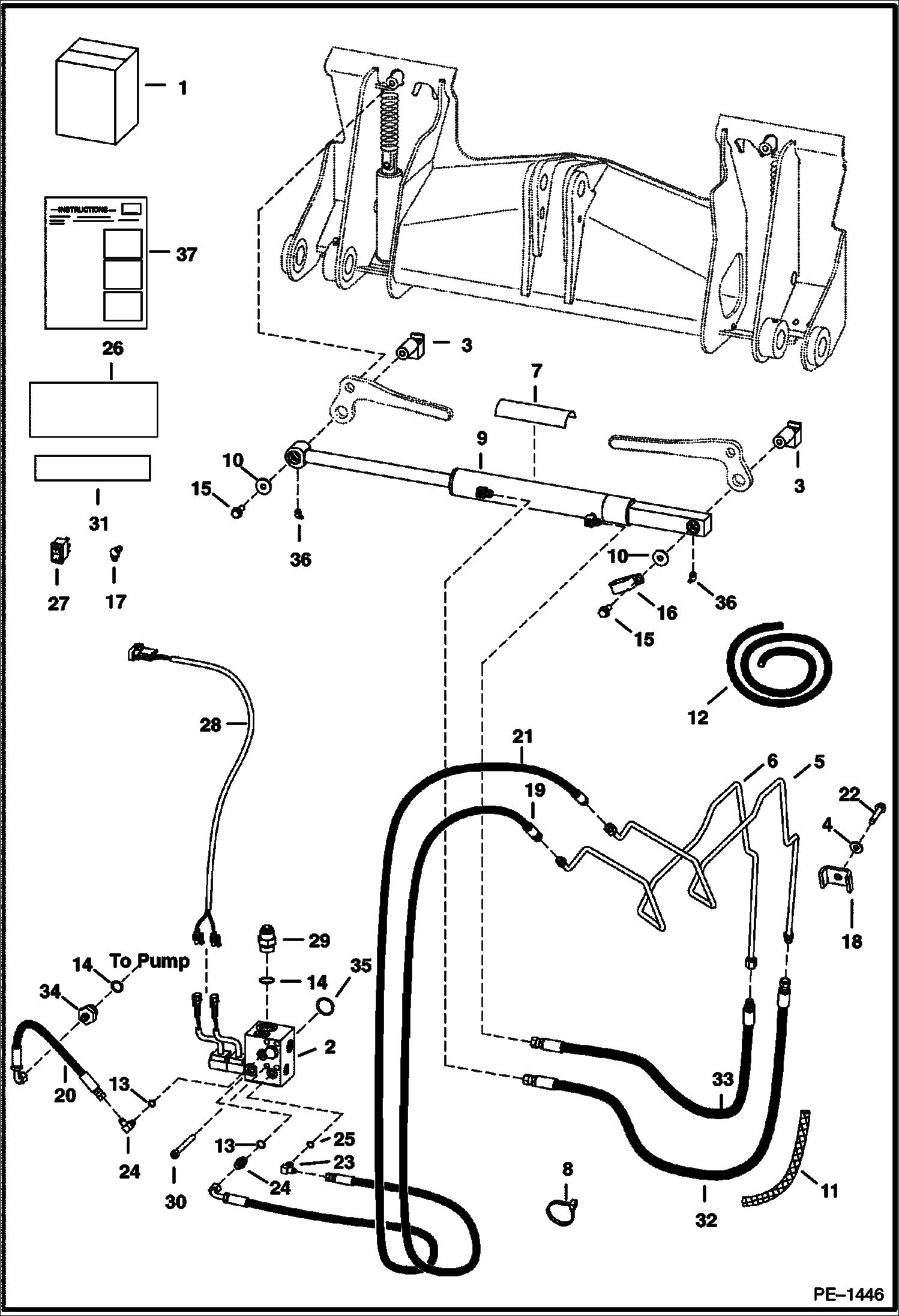

Запчасти Bobcat 800s POWER BOB-TACH KIT (Cast Iron Gear Pump) (S/N 518916261-518918063, 516815101-516815132, 517515147-517515267) ACCESSORIES & OPTIONS

1

KIT NLA - Ref. 2-35 - SEE NOTE - Order 6735468 - Was 6731092 - A

2

VALVE See Illustration POWER BOB-TACH/ MS1263

3

6714576

PIVOT

4

872229

WASHER

5

6719164

TUBE

6

6719167

TUBE

7

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

8

6624289

STRAP, TIE

9

CYLINDER See Illustration POWER BOB-TACH/ PE1064A See Illustration POWER BOB-TACH/ PE1064

10

619021

WASHER, 5

11

COVER 32 inches (813mm) long - Order Ref. 12

12

6656155

HOSE COVER bulk - sold per foot - 1.25'' (31,8mm) ID

13

99K6

O RING Tapered boss face

13

79K6

O RING 10 Flat boss face

14

99K12

O RING Tapered boss face

14

79K12

O RING 10 Flat boss face

15

35C616

BOLT 5

16

31H42

CLIP

17

11H25

FITTING10

18

6502203

CLAMP

19

6726987

HOSE

19

COVER NSS - Order Ref. 12 - A

20

6806403

HOSE

21

HOSE NLA - W/2 Straight ends - Order 6731082 & 15KB-606 (Ref. 24)

21

6731082

HOSE W/1 Straight ends & 1 90 degree

21

COVER NSS - Order Ref. 12 - A

22

84G3724

BOLT

23

ELBOW NLA - W/Ref. 25 - Tapered boss face - Was 17KV-3 - A

23

97K4

O'RING flared end

23

17KB0404

FTG HYD ELBOW 90 W/Ref. 25 - Flat boss face

24

ADAPTER NLA - W/Ref. 13 - Tapered - Was 15KV-5 - A

24

97K6

O RING flared end

24

15KB0606

FITTING, HYD CONNECTOR W/Ref. 13 - flat boss face

25

99K4

O'RING tapered boss face

25

97K4

O'RING flat boss face

26

6725907

DECAL, OPERATION power Bob-Tach - Was 6717842 - A

27

6676732

SWITCH vertical

28

6730770

HARNESS

29

ADAPTER NLA - W/Ref. 14 - Tapered boss face - Was 15KN-8 - A

29

97K12

O'RING flared end

29

15KB1212

FITTING, HYD CONNECTOR W/Ref. 14 - Flat boss face

30

73G656

SCREW

31

6719888

DECAL power bob-tach

32

6725198

HOSE

32

COVER NSS - Order Ref. 12 - A

33

6725199

HOSE

33

COVER NSS - Order Ref. 12 - A

34

ADAPTER NLA - W/Ref. 14 - Tapered boss face - Was 6715186 - A

34

97K6

O RING flared end

34

15KB0612

FITTING, HYD CONNECTOR W/Ref. 14 - Flat boss face

35

55K214

O-RING

36

11H15

GREASE FITTING for cylinder 6810350

37

6901483

INSTRUCTIONS
