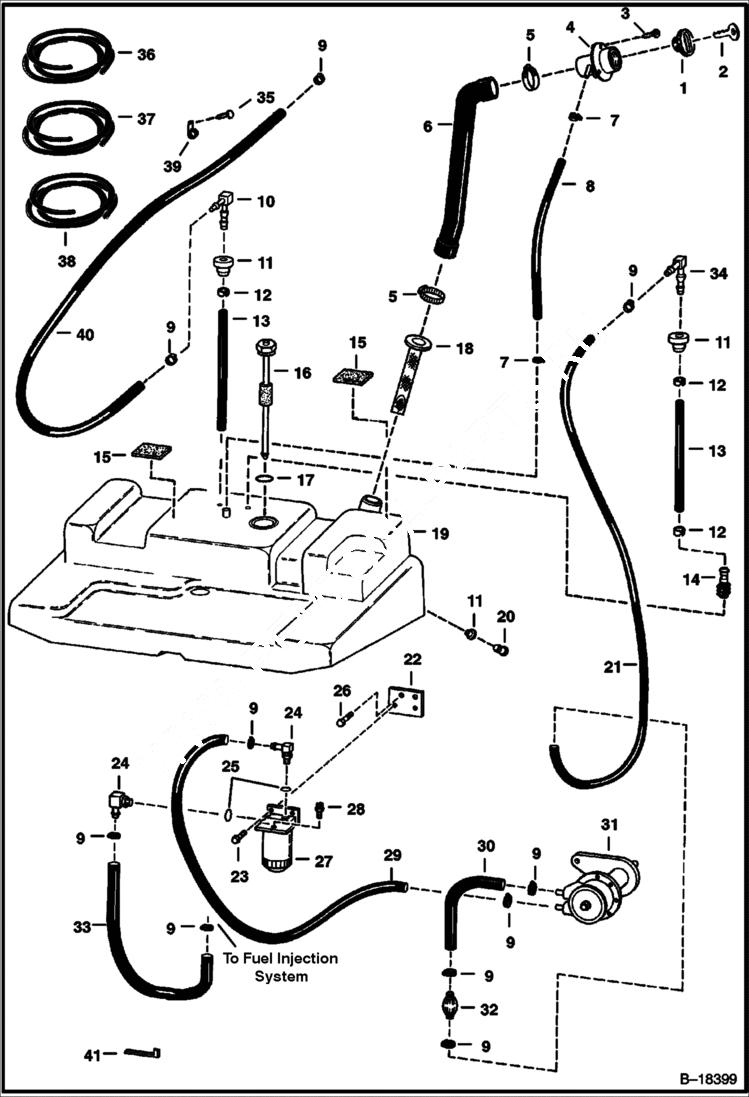

Запчасти Bobcat 800s FUEL SYSTEM MAIN FRAME

1

6661114

CAP. DIESEL green fuel fill - W/Ref. 2

1

6661696

CAP, FUEL LOCKING locking - W/Ref. 2 - Code PK510

2

6587458

KEY Code PK510

3

6706517

SCREW

4

6701449

FILLER TUBE

5

42HL250

CLAMP Was 6513595 - B

6

6717339

HOSE fuel filler

7

42H10

HOSECLAM5

8

HOSE NLA - 38'' (965,2 mm) long - Order Ref. 36

9

42HS04

CLAMP, HOSE Was 6515575 - B

10

6598908

ELBOW

11

6717402

BUSHING 0.54'' ID

12

6661213

RING, COMPRESSION

13

6569752

HOSE BULK/FT 13'' (330,2 mm) - Was 6579554 - A

14

6650239

SCREEN, FUEL PICKUP

15

6578278

PAD self adhesive one side

16

SENSOR See Illustration ENGINE ELECTRICAL CIRCUITRY/ B18416 See Illustration ENGINE ELECTRICAL CIRCUITRY/ B18414 NLA - fuel - W/Ref. 17 (79K000014B O-ring) - Order 6680438 Sensor - Was 6669642 - A

16

7179839

SENSOR FUEL - W/Ref. 17 (6717579 gasket) - Was 6680438 - A

17

79K14

O RING 10

17

6717579

GASKET rubber

18

7120881

SCREEN, FILLER Was 6569219 - A

19

TANK See Illustration ENGINE ELECTRICAL CIRCUITRY/ B18416 See Illustration ENGINE ELECTRICAL CIRCUITRY/ B18414 NLA - Order 6736048 tank (G-series) & 6719920 Harness - Was 6717060 - A

20

7203382

PLUG, STEEL Was 6717404 - A

21

HOSE NLA - 30'' (762 mm) long - Order Ref. 37

22

6710488

MOUNT

23

53CM830

BOLT

24

6715183

ELBOW W/Ref. 25 - check boss face to determine correct replacement o-ring

25

99K5

O-RING tapered boss face

25

79K5

O RING 10 flat boss face

26

43C512

BOLT

27

6667353

FILTER ASSY W/Ref. 28

27

6667352

FILTER, FUEL W/SEPARATOR 12

27

72F1

FITTING

28

6658180

PLUG, BLEED

29

HOSE NLA - 14'' (355 mm) long - Order Ref. 37

30

HOSE NLA - 9.5'' (241 mm) long - Order Ref. 37

31

6666522

FUEL PUMP See Illustration FUEL INJECTION SYSTEM/ B14312

32

6667170

PUMP 193 mm (7.6'') long

33

HOSE NLA - 21.5'' (546 mm) long - Order Ref. 37

34

7126672

ELBOW barbed - Was 6666302 - A

35

1CM816

BOLT

36

6578172

HOSE bulk - sold per foot

37

6577822

HOSE bulk - sold per foot - .3125'' ID

38

6577821

HOSE bulk - sold per foot - .25'' ID

39

30H30

CLAMP

40

HOSE NLA - 29.5'' (749mm) long - Order Ref. 38

41

6610510

TIE
