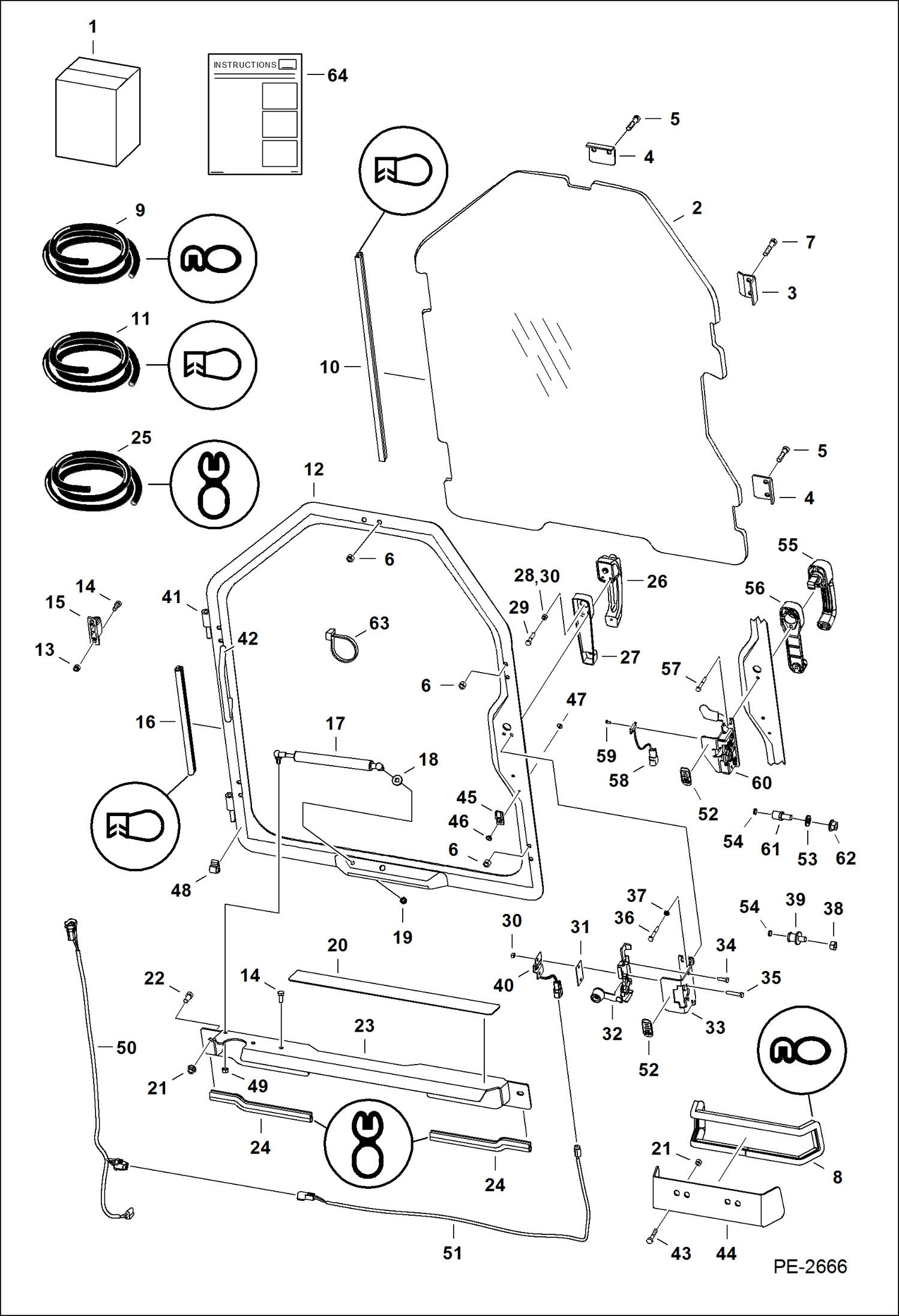

1
6725941
KIT door - Ref. 2-25 & 41-64 - wiper is not included because it may scratch special applications window
2
6732351
WINDOW 0.5'' thick polycarbonate - W/top notch - Was 6725935 - A
3
6725938
CLAMP
4
6725937
CLAMP
5
17C628
BOLT
6
95D6
NUT
7
17C624
BOLT 5
8
SEAL NLA - Order Ref. 9 - 40'' (1016mm) long
9
6555351
SEAL bulk - sold per foot
10
SEAL NLA - Order Ref. 11 - 115'' (2921mm) long
11
7011039
SEAL, BULK/FT 34 sold per foot - Was 6675558 - A
12
DOOR See BTI370 - NLA - 3 bolt mount handle - W/Ref. 41 & 42 - Was 6726932 - A
12
7110430
SPECIAL APPS DOOR 2 bolt mount handle - W/Ref. 41 & 42
13
59D5
NUT 5
14
17C512
BOLT 5
15
6717593
HINGE base
16
SEAL NLA - Order Ref. 11 - 127'' (3233mm) long
17
7157893
GAS SPRING Was 6682586 - A
17
6678548
SOCKET ball
17
6649245
RETAINER spring
18
25E16
WSHR
19
46D5
NUT acorn
20
6542731
SAFETY TREAD
21
55D6
NUT
22
17C612
BOLT 5
23
6725042
SHIELD
24
SEAL NLA - Order Ref. 25 - 11'' (279mm) long
25
6513152
SEAL bulk - sold per foot
26
HANDLE See BTI370 - NLA - 3 bolt mount - Was 6674667 - A
26
KEY NLA - ignition & rear door - includes two keys W/ring - Order 6693241 - Was 6709527 - A
26
6693241
KEY 10 ignition - single key W/O ring
27
SPACER See BTI370 - NLA - 3 bolt mount - Was 6717146 - A
28
61D4
NUT 5 for 3 bolt mount handle
29
17C420
BOLT for 3 bolt mount handle
29
1CM630
BOLT for 3 bolt mount handle
30
1DM6
NUT For 2 bolt mount handle - Was 4DM6 - A
30
1DM6
NUT For 2 bolt mount handle - Was 4DM6 - A
31
6718520
COVER latch
32
LATCH See BTI370 - NLA - 3 bolt mount - Was 6674666 - A
33
6717369
BRACKET latch
34
1CM620
BOLT for 3 bolt mount handle
35
1CM635
BOLT for 3 bolt mount handle
36
1CM640
SCREW for 3 bolt mount handle
37
6EM60
WASHER, SPRING for 3 bolt mount handle
38
91D7
NUT 7/16'' thread
39
STRIKER BOLT NLA - 7/16'' thread - Order ref. 61 (7109664 striker bolt), Ref. 62 (51DM12 nut) & Ref. 53 (18EM1224 washer) - Was 6654170 - A
40
6731212
SENSOR For Ref. 32 (NLA 6674666 latch)
41
6718376
HINGE door
42
7138347
HANDLE grab - Was 6718521 - B
43
35C620
BOLT 5
44
6725200
PLATE
45
6665000
CLIP
46
6665321
RIVET male - plastic
47
6665322
RIVET female - plastic
48
6675378
CLIP wire - W/adhesive back - Use W/doors W/O welded-on retainers
49
59D5
NUT 5 Was 61D5 - B
50
7106277
WIPER HARNESS wiper
51
7104465
DOOR SWITCH HARNESS door sensor
52
DECAL, SAFETY NLA - door sensor - Was 7110316 - A
53
18EM1224
WASHER Use W/Ref. 61 (7109664 striker bolt)
54
6677192
SENSOR, MAGNETIC
55
7109662
HANDLE, LATCH DOOR 2 bolt mount
56
7109663
SPACER 2 bolt mount
57
1CM640
SCREW for 2 bolt mount handle
58
6728459
SENSOR, DOOR Use W/Ref. 60 - Also Order (2) of Ref. 59
59
6677193
RIVET
60
7109661
LATCH, DOOR W/SENSOR 2 bolt mount - W/Ref. 58
61
7109664
BOLT striker - 12 mm thread
62
51DM12
NUT 12 mm thread
63
6624289
STRAP, TIE
63
6624289
STRAP, TIE Use W/doors W/welded-on retainers
64
6901013
INSTRUCTIONS
