Запчасти Bobcat 800s SEAT & SEAT BAR MAIN FRAME

1

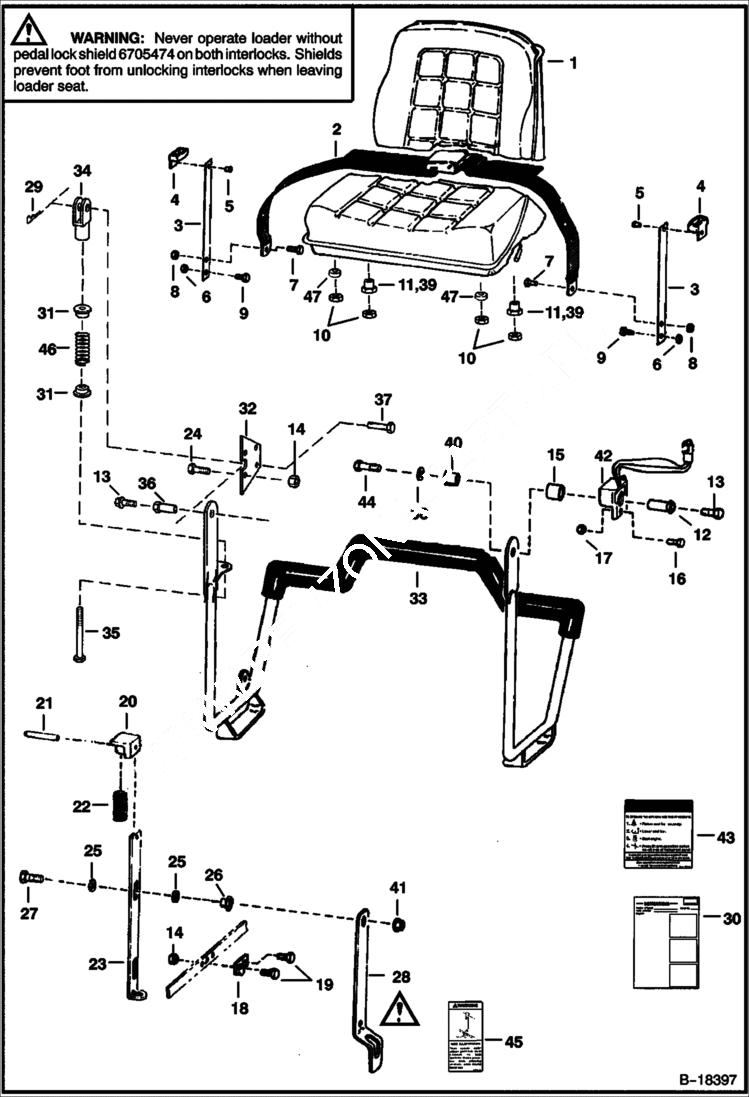

SEAT See Illustration SUSPENSION SEAT/ D2410

2

SEAT BELT NLA - W/ guide assys. - Order 6675074 seat belt & (2) of Ref. 3 (6725373 spring plate) - Was 6667875 - A

2

SEAT BELT NLA - W/ spring plates - Order 6675074 seat belt & (2) of Ref. 3 (6725373 spring plate) - Was 6725403 - A

2

6675074

SEAT BELT W/O spring plates

3

GUIDE ASSY. NLA - W/Ref. 4 & 5 - Order 6711908 spring plate, Ref. 4 & (2) Ref. 5 - Was 6711907 - A

3

6711908

SPRING PLATE 11.8'' (300mm) long - Use W/Ref. 2 (NLA/6667875 seat belt)

3

6725373

SPRING PLATE Use W/Ref. 2 (6675074 seal belt)

4

GUIDE NLA - Order 6703703 - Was 6565355 - A

5

6630207

RIVET 5

6

85D6

NUT, 5

7

17C716

BOLT

8

85D7

NUT

9

17C612

BOLT 5

10

59D5

NUT 5

11

6571991

GUIDE

12

6706685

BUSHING

13

35C612

BOLT

14

91D7

NUT

15

6680473

BUSHING, MAGNET magnetic - Was 6671135 - A

16

35C410

BOLT 5 fastens thru tab of Ref. 11

16

6710539

BOLT fastens thru body of Ref. 11

17

83D4

NUT 10 fastens thru tab of Ref. 11

17

50D12

NUT fastens thru body of Ref. 11

18

6563151

LINK

19

17C616

BOLT 5

20

6563148

BLOCK, SPRING

21

14J2512

PIN 5

22

6702430

SPRING, COMPRESSION

23

6578150

LOCK

24

17C712

BOLT

25

6700170

WASHER plastic

26

6559479

NUT

27

6705489

BOLT

28

6705474

LOCK SHIELD Never operate loader without pedal lock shield on both interlocks ... SEE WARNING ON PREVIOUS PAGE

29

6631418

RING, RETAINING

30

6722392

INSTRUCTIONS For Ref. 28

31

6710659

BUSHING

32

6710660

MOUNT

33

6716777

SEAT BAR

34

6713589

CLEVIS

35

6713887

BOLT

36

6706962

BUSHING

37

4F6106

PIN

38

25E17

WASHER 5

39

6571991

GUIDE

40

6680441

BUSHING keyed - Was 6664882 - A

41

59D6

NUT

42

7105252

SENSOR, SEAT BAR POSITION Was 6670652 - A

43

6707134

DECAL instruction for LCS

44

17C608

BOLT

45

6705720

DECAL

46

6701535

SPRING

47

6701174

WASHER flat
