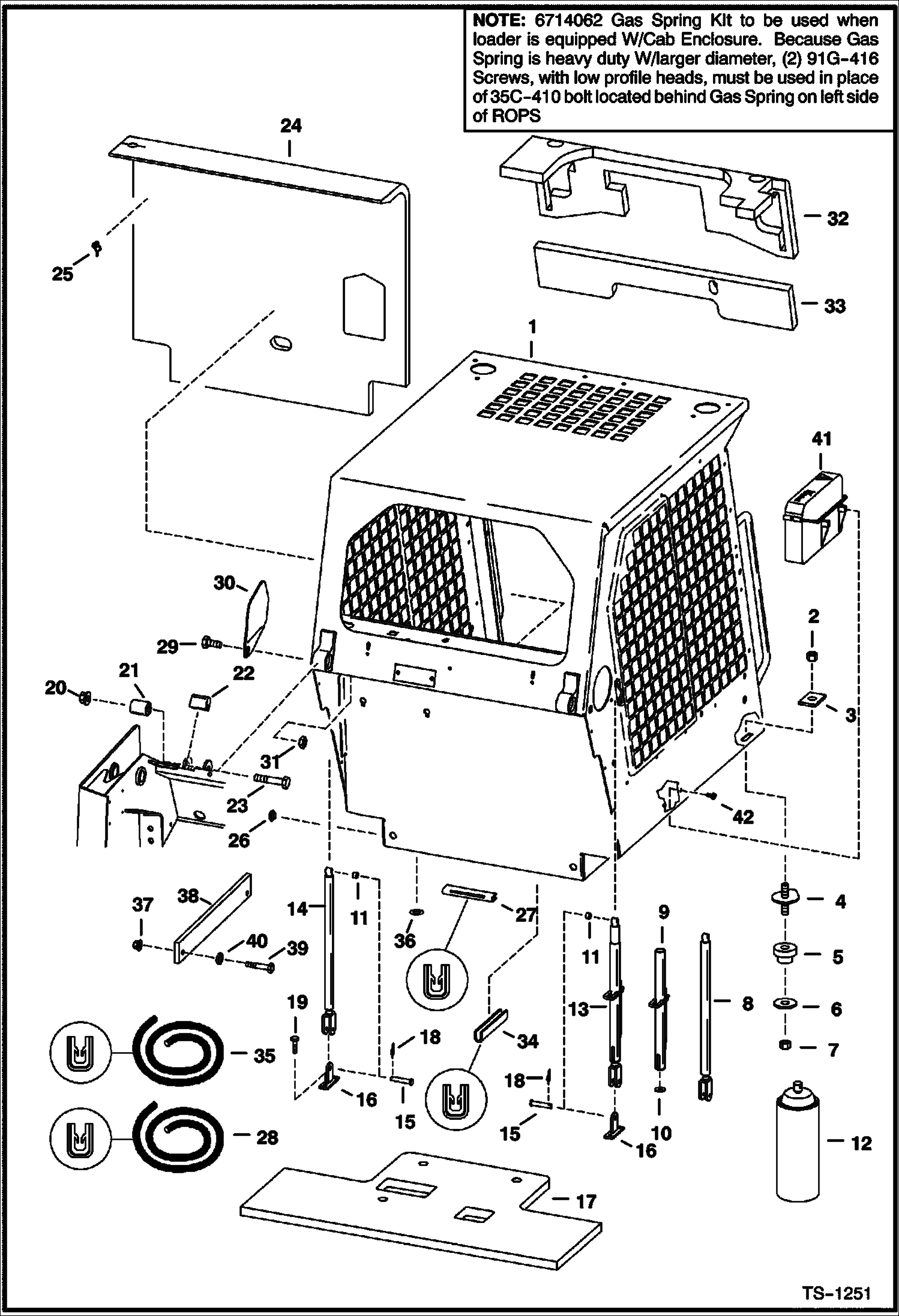

Запчасти Bobcat 800s OPERATOR CAB MAIN FRAME

1

6701957

OPERATOR CAB Does NOT include cab decals

2

59D8

NUT 5

3

6553709

WASHER

4

6702971

BOLT

5

6560633

DAMPENER

6

6515817

WASHER

7

85D8

NUT, 5

8

6664205

GAS SPRING also order 6675257, clevis

8

6675257

CLEVIS

9

6708189

TUBE stop

10

6701174

WASHER

11

6567604

SPACER

12

6652818

ADHESIVE insulation - 24 oz. spray can

13

GAS SPRING NLA - Order Ref. 8-10

14

6700171

GAS SPRING w/o lock - also order 6675257, clevis

14

6714062

KIT W/O lock - heavy duty gas spring - SEE NOTE

14

91G416

SCREW SEE NOTE

14

6900531

INSTRUCTIONS for kit 6714062

15

6567743

PIN

16

6706349

MOUNT

17

6715095

INSULATION seat pan - Use W/Ref. 12

18

6631418

RING, RETAINING

19

84G3112

BOLT 5 SEE NOTE

20

53D10

NUT

21

6562602

BUSHING rubber

22

6579613

STOP cab tilt

23

17C1056

BOLT

24

6708682

INSULATION seat back - Use W/Ref. 25

25

6664310

CLIP insulation

26

6664374

PLUG heater hole

27

MOULDING NLA - 6'' (152,4 mm) long - Order Ref. 28

28

6512686

MOULDING bulk - Sold Per Foot

29

17C512

BOLT 5

30

6707879

COVER

31

83D5

NUT 5

32

6716800

INSULATION panel

33

6701674

INSULATION steering panel

34

MOULDING NLA - 10.5'' (266 mm) long - Order Ref. 35

35

6654139

MOULDING bulk - sold per foot

36

6571991

GUIDE

37

83D4

NUT 10

38

6736126

COVER

39

35C410

BOLT 5

40

25E13

WASHER 5

41

6708827

CONTAINER

42

6702642

SCREW
